HELVAR Digidim 313 Installation Manual

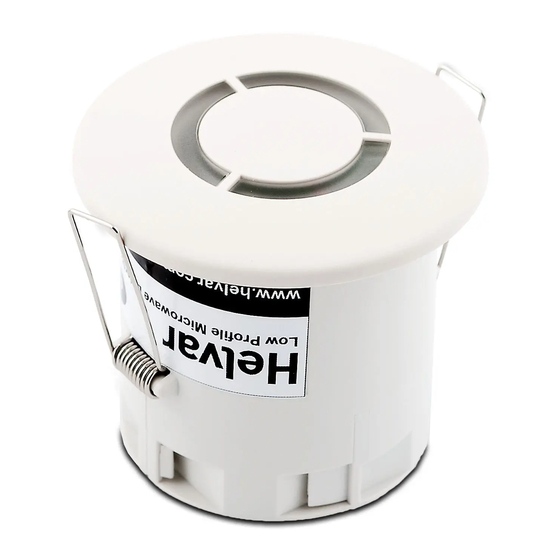

313, 313B Low-Profile Microwave Detector
The Low-Profile Microwave Detector provides occupancy detection for the automatic control of DALI lighting loads.
The unit can also be controlled using a Helvar infrared remote handset, such as the 303 DIGIDIM Infrared Remote Control.
Helvar's 313 detects movement using its highly sensitive microwave detector. It works by emitting low-power microwave
signals and measuring the reflections as the signals bounce off moving objects.
When an area is no longer occupied, the load will switch off after a certain time. This time-out period is configured using
Helvar's lighting system design and control software: Designer, or Toolbox.

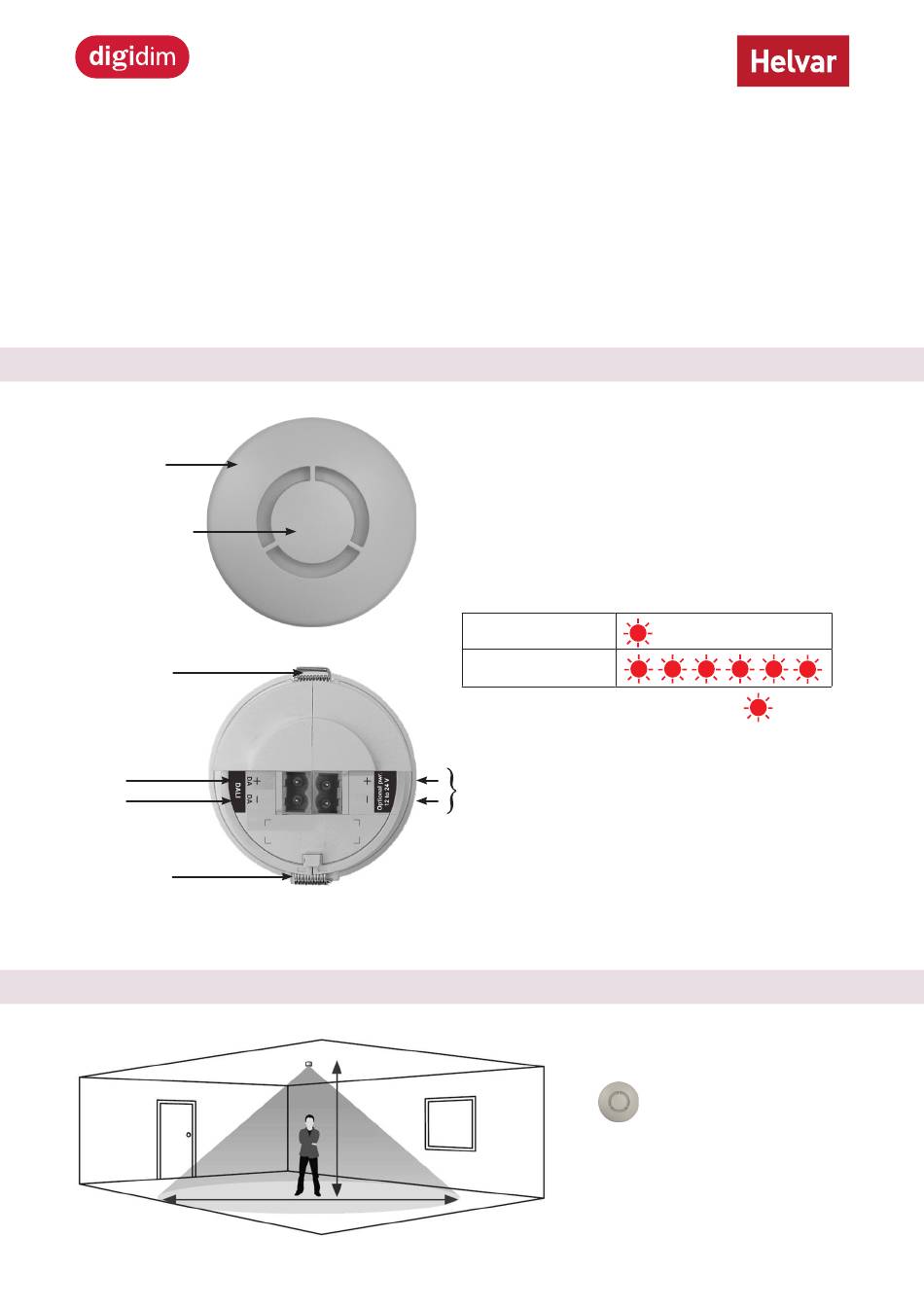

Features and Connections
Mounting bezel
– Microwave sensors
– IR receiver
– Status LEDs
Retaining spring
DALI +
DALI -
Retaining spring
Detection Pattern
Helvar | Data is subject to change without notice.
Installation Guide
2.8 m
12 m – 16 m
Microwave sensor
Detects movement within the detection range allowing load
control in response to changes in room occupancy.
IR Receiver
Receives control and programming commands from a Helvar
infrared remote handset (available separately).
Status LED
The red LED flashes to indicate the following:
Valid setting received
Identify active
+
Optional connection to external power
-
12 V to 24 V. See 'External Power Supply (Optional)' on page 3.
DALI connection
The DALI connection is made via DA+ and DA– terminals.
The DALI input is not polarity sensitive (unless you are
using an external power supply).
R
R R R R R R
= Red LED
R
Sensitivity set to maximum
www.helvar.com
1
