Installation Guide
Ceiling PIR Detector (311)
The 311 Ceiling PIR Detector is a compact unit containing sensors to provide energy-saving functions when used in a
DALI system.
Functioning as a presence detector, the unit can turn the lights on when a room is occupied, and off when unoccupied.
It is fully compatible with Helvar's lighting system design and control software: Designer, and Toolbox.

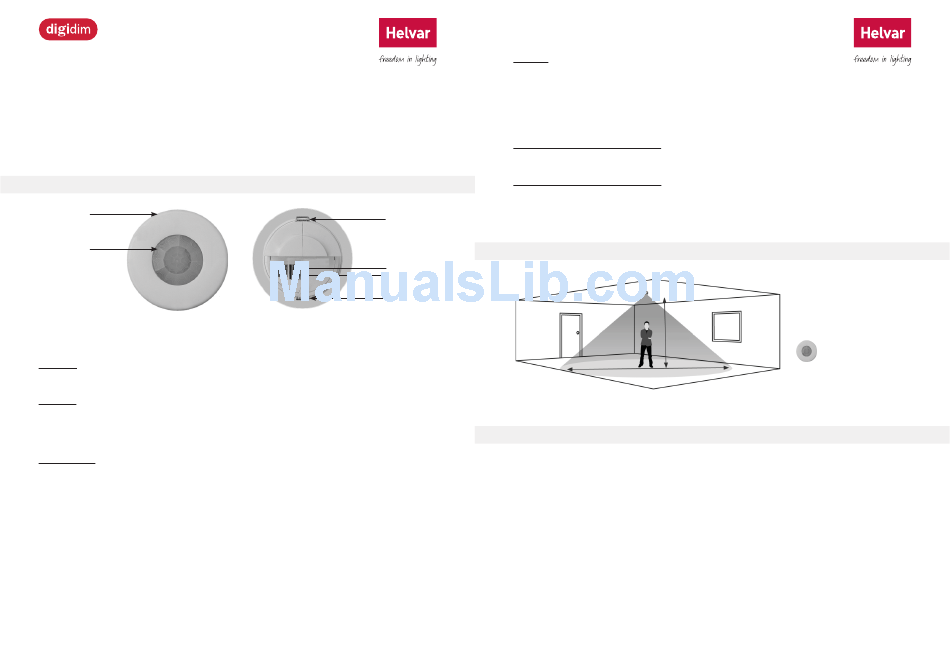

Features and Connections
Mounting
bezel
Sensor lens
- PIR Sensor
- Status LED
- IR Receiver
PIR Sensor
Detects movement within the detection range, allowing load control in response to changes in room occupancy.
Status LED
The red LED flashes to indicate:
• Valid setting received (single flash of LED)
• Identify active (LED flashes repeatedly)
DALI Connection
The DALI connection is made via DA+ and DA– terminals. The device is not polarity-sensitive.
1
Helvar | Data is subject to change without notice.
Sensitivity, Time-Outs, Identify
Sensitivity
Adjust the sensitivity using Designer or Toolbox – Helvar's lighting system design and control software.
The factory default setting is 9 (maximum).
Note:
On maximum sensitivity, the detector unit is extremely sensitive to movement and may detect through
glass, thin walls or partitions. If this causes a problem, reduce its sensitivity.
The temperature difference between the detection target and the background must be at least 4 °C.
Adjusting On, Exit and Transition Time-Outs
The default time-outs for On, Exit and Transition can be altered using Designer or Toolbox.
Identify: Check Connection to DALI Network
To make sure that the sensor is correctly connected to the DALI network, use the Identify function in Designer or
Toolbox. The sensor's status LED flashes repeatedly until Identify is cancelled.
Retaining
spring
Detection Pattern
DALI +
DALI –
Retaining
spring
Installation
All versions of the Ceiling PIR Detector can be mounted into a ceiling or wall void or onto a back box. The standard
version (311) can be mounted onto the SBB-A surface back box, whereas the 311P and 311M versions need to be
mounted onto Helvar's fully sealed, IP65-rated SBB-P back box. When mounting the 311P and 311M versions, the
supplied silicone gasket must always be used.
The following steps are required for all versions and installations of the unit.
1. Connect the DALI connector to the socket located at the rear of the sensor.
2. Flush fixing: Insert the unit into the ceiling or wall (see 'Connection and Fixing: Flush Fixing' on page 3); or
Surface mounting: Install the unit using the SBB-A or the SBB-P surface back boxes, as appropriate (see
'Connection and Fixing: Surface Mounting' on page 4).
3. Power the unit up.
4. Configure the unit using Designer or Toolbox.
5. If the load triggered by the sensor comes on, by default it will take 20 minutes (of no movement detected) for the
load to switch off.
www.helvar.com
Helvar 311 Ceiling PIR Detector: Installation Guide
A lower mounting height will
decrease the overall size of the
detection zone.
2.8 m
7 m
Sensitivity set to maximum
2
