Helvar 314 Tilting Microwave Detector
Installation Guide
The 314 Tilting Microwave Detector provides occupancy detection for the automatic control of DALI lighting loads.
The unit can also be controlled using the Helvar 303 IR (infrared) remote control handset.
The 314 detects movement using its highly sensitive microwave detector. It works by emitting low-power microwave signals
and measuring the reflections as the signals bounce off moving objects.
The 314 has an adjustable sensor head that allows the area of detection to be optimised for each particular purpose.
When an area is no longer occupied, the load will switch off after a certain time. This time-out period is configured using
Helvar's lighting system design and control software: Designer, or Toolbox.

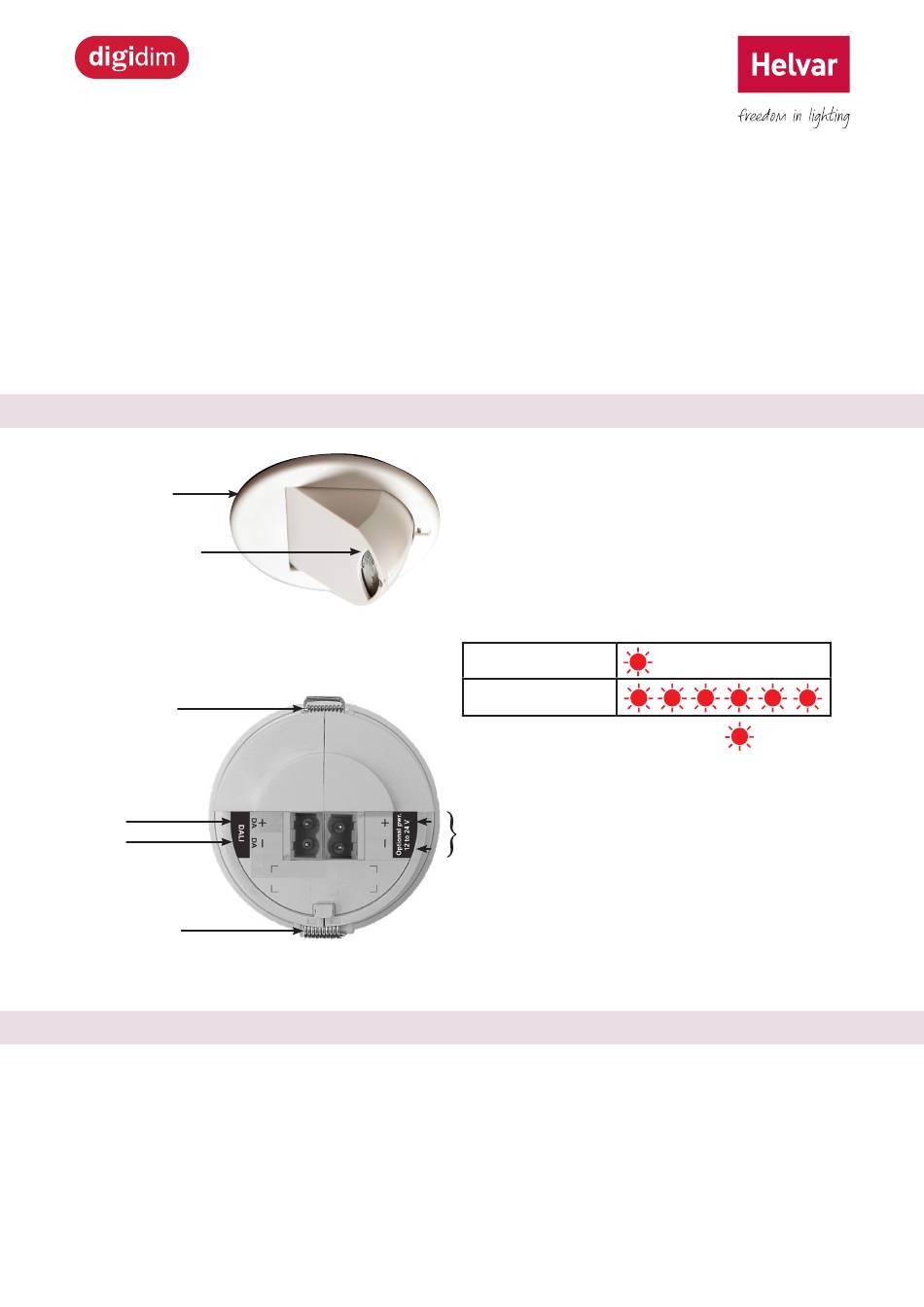

Features and Connections
Mounting bezel
– Microwave sensor
– IR receiver
– Status LEDs
Retaining spring
DALI +
DALI -
Retaining spring
Installation
1. Install the unit: see 'Connection and Fixing' on page 2.
2a. Connect the DALI terminal blocks to the sockets at the rear of the sensor.
2b. If required, connect the optional power supply: see 'External Power Supply (Optional)' on page 3.
3. Power the unit up.
4. After the lighting load switches on, by default it will switch off after 20 minutes of no movement detected.
Helvar 314 Tilting Microwave Detector Installation Guide
Microwave sensor
Detects movement within the detection range allowing load
control in response to changes in room occupancy.
IR receiver
Receives control and programming commands from a
303 IR (infrared) handset (available separately).
Status LED
The red LED flashes to indicate the following:
Valid setting received
Identify active
+
External power connection (optional)
-
DALI connection
The DALI connection is made via DA+ and DA– terminals.
The DALI input is not polarity sensitive (unless you are using an
external power supply).
R
R R R R R R
= Red LED
R
