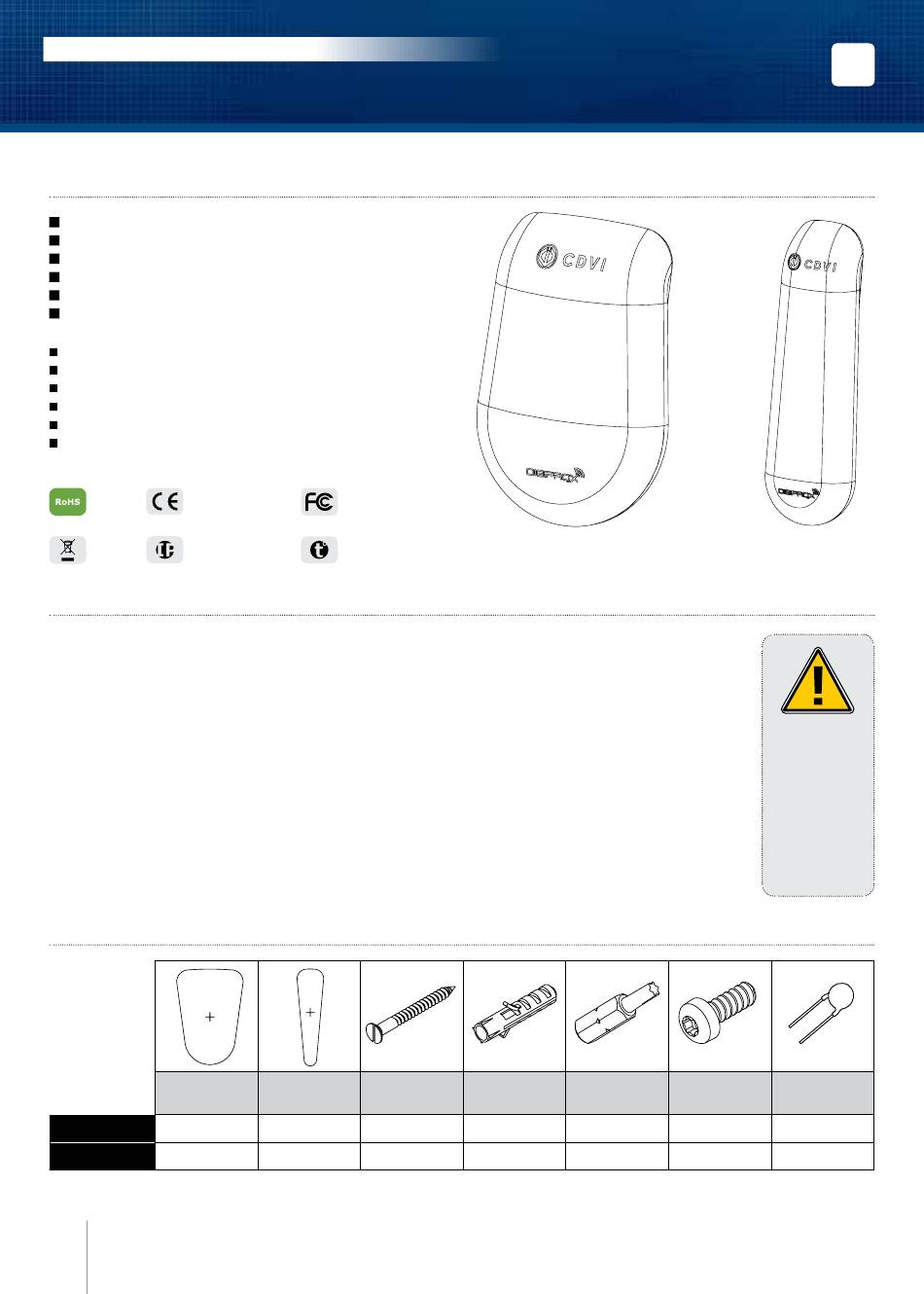

INSTALLATION MANUAL
SOLARPW-SOLARPB-STARPW-STARPB
Wiegand 125KHz Proximity Readers

1] PRODUCT PRESENTATION

Wiegand 26, 30 or 44 bit.
Direct connection.
PCB sealed in epoxy.
Audible and visual feedback.
45cm pigtail wire connection (STARPW-STARPB).
Versions available: white, black or grey.
SOLARPW-SOLARPB (L x W x D): 130 x 90 x 28mm.
STARPW-STARPB (L x W x D): 130 x 41 x 28mm.
Technology: 125 KHz.
Multi card protocol reader - Marin/HD.
Input voltage: 12V dc.
Consumption: 100mA.
CE Certification
WEEE
IP53
2] REMINDERS AND RECOMMENDATIONS
Important
To protect the device
from back-emf, do not
forget to install the varistor
across the lock terminals,
in parallel.
Suggested
power supplies
ARD12 & BS60 (in case
the reader is powered
neither by the controller
nor by the reader controller
[INTBUSW]).

3] MOUNTING KIT

Foam seal
SOLARPW(PB)
1
STARPW(PB)
-
2
cdvigroup.com
Certification FCC CFR 47
part 15 compliance
-25°C to +70°C
Recommended cables
4 twisted pairs 0.6mm (AWG 24).
Environment
When in a humid area or
close to the sea, we recom-
mend applying varnish to the
terminals to avoid oxidation.
This product is supplied
with a varistor.
The varistor must be connec-
ted directly to the locking
system terminals (electric
3x30
Foam seal
TF screw
-
2
1
2
Ref : SOLARPW-SOLARPB
strikes, electromagnet, or
lock) operated by the device.
If the device functions with
several locking systems,
each one must be fitted with
a varistor. The varistor limits
overload produced by the
strike coil, known as self-
effect or back-emf. If you are
using a "Shear Lock", elec-
tromagnet or other type of
electric lock, we recommend
the use of a dedicated power
supply for the lock.
S5
TORX
bit
®
Plastic anchor
2
1
2
1
EN
Ref : STARPW-STARPB
For optimal
illumination,
do not fold
the cable
inside the
product.
3x8
Varistor
TORX
screw
®
1
1
1
1
