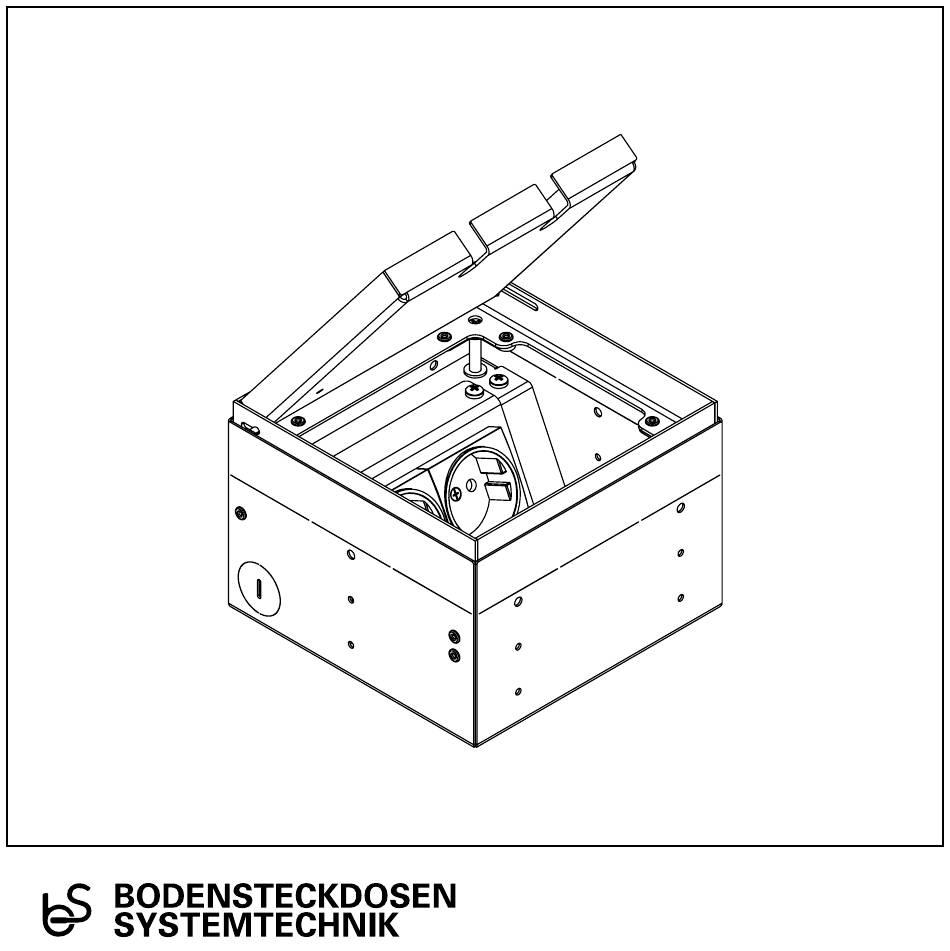

Einbaumaße Zuleitungen Nivellierbar Schutzart Belastbarkeit 155 x 157 x 2 x seitlich, 2 x hinten, Flächenlast 8902B 30 mm IP20 90–120 mm 2 x unten, Ø 25 mm max. 120 kg Gebrauchshinweise Um eine anhaltende Funktion der Bodensteckdose • Pflegehinweis: Das Produkt ist für die Trocken- zu gewährleisten sind folgende Hinweise zu...
Page 5
Montageanleitung Schritt 1 Schritt 2 Den Deckel abnehmen und den Eine Styrodurplatte (SP) auf das Fundament (F) Geräteträger von der Box abmontieren. kleben. Anschließend die Box auf die Styrodurplatte (SP) kleben (oder mit Schrauben (M4) im Fundament) verdübeln. Danach die Leerrohre (L) an die Box ...
Page 6
Schritt 3 Die Box abkleben (z. B. mit einem Klebeband) und mit einem Pappdeckel (PD) oder Styrodur abdecken.
Page 7
Schritt 4 Auf dem Boden eine Dämmschicht (Polystyrol) (P) verlegen. Anschließend den Estrich (E) gießen. Nachdem der Estrich (E) getrocknet ist, den Pappdeckel (PD) und das Klebeband von der Box entfernen.
Page 8
Schritt 5 Die Steckdosen anschließen und den Geräteträger in die Box einschrauben. Den Bodenbelag (B) im Raum verlegen und den Deckel mit Belag (B) auskleben. Umlaufend um die Dose, Platz für eine Flexfuge (FF) frei lassen. Mithilfe der Nivellierschrauben ...
Page 9
Schritt 6 Flexfuge (FF) aus Silikon oder Kork einsetzen. Schließlich den Deckel wieder in den Rahmen installieren. Die Bodensteckdose ist nun erfolgreich eingebaut. (Siehe Querschnitt unten).
Page 10
Achtung! Sollte die Höhe des Bodenbelags (B) niedriger ausfallen als die Höhe der Bodensteckdose (unter 100 mm), können die perforierten Laschen (G) an der oberen Boxkante heraus- gebrochen werden.
Page 11
Ansicht im Querschnitt mit herausgebrochenen Laschen. (B) Bodenbelag, (E) Estrich, (F) Fundament, (FF) Flexfuge, (P) Polystyrol-Dämmschicht.
Supply Levellable Protection Load 153 x 157 x 2 x lateral, 2 x back, Area load 8902B 30 mm IP20 90–120 mm 2 x bottom, Ø 25 mm max. 120 kg Instructions for use In order to ensure a lasting function of the •...
Page 13
Assembly Instructions Step 1 Step 2 Remove the lid . Then remove the device Glue a Styrodur plate (SP) to the foundation (F). carrier from the box . Then glue the box onto the Styrodur plate (SP) (or dowel with screws (M4) in the foundation).
Page 14
Step 3 Mask the box (e.g. with an adhesive tape) and cover it with a cardboard cover (PD) or Styrodur.
Page 15
Step 4 Lay an insulation layer (polystyrene) (P) on the floor. Then pour the screed (E). After the screed (E) has dried, remove the cardboard cover (PD) and the adhesive tape from the box .
Page 16
Step 5 Connect the sockets and screw the device carrier into box . Lay the floor covering (B) in the room and glue the covering (B) into the lid . Leave space for a flex joint (FF) all around the floor socket.
Page 17
Step 6 Insert flexible joint (FF) made of silicone or cork. Finally, place the lid into the frame again. The ground socket is now successfully installed. (See cross section below.)
Page 18
Attention! If the height of the floor covering (B) is lower than the height of the floor socket (less than 100 mm), the per- forated tabs (G) on the upper edge of the box can be broken out.
