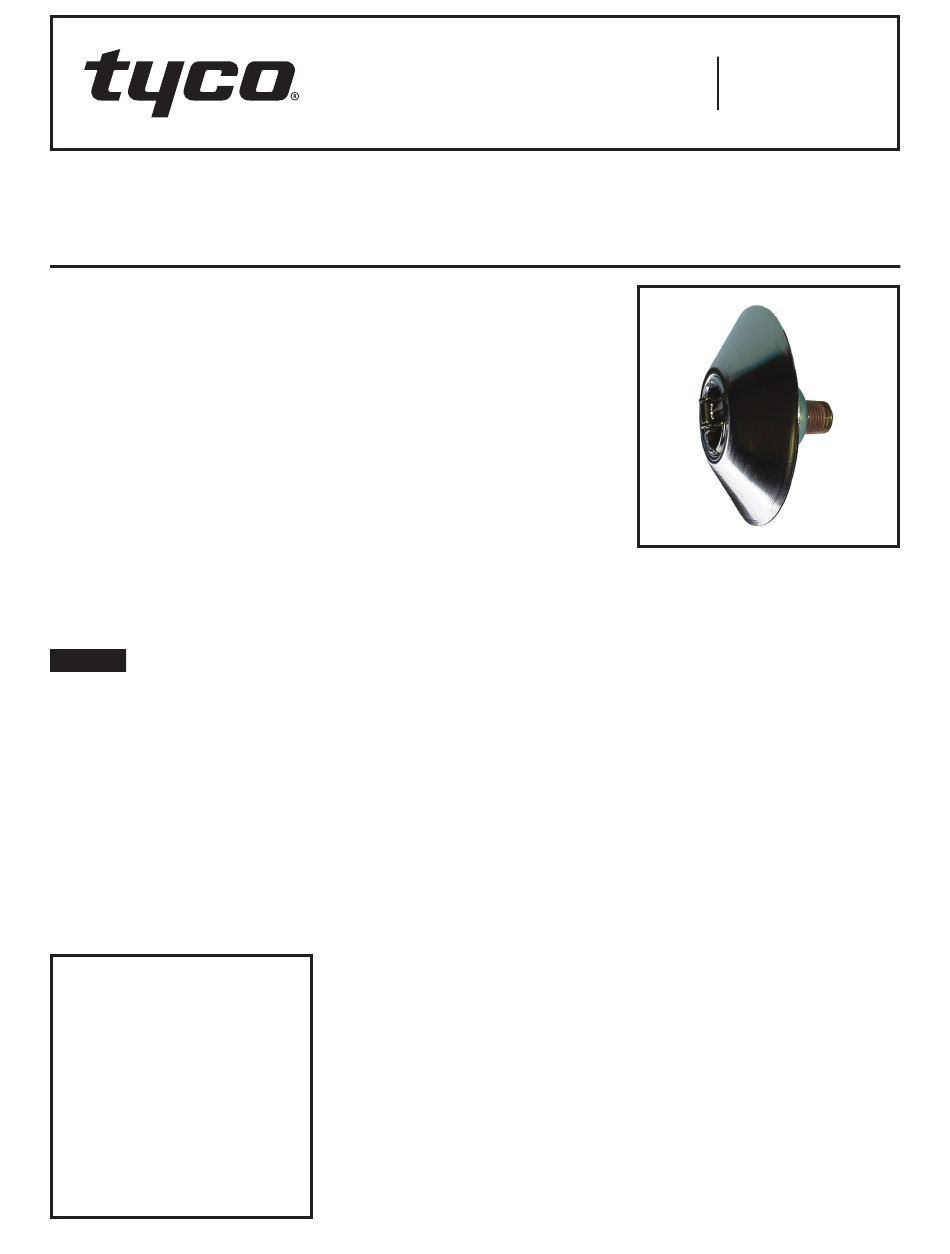

Model TFP PH5 — 5.6 K-factor
Institutional Horizontal Sidewall Sprinklers
Standard Response, Standard Coverage
General
Description
The TYCO Model TFP PH5, 5.6 K-fac-
tor, Institutional Horizontal Sidewall
Sprinklers are standard-response,
standard-coverage spray sprinklers
designed for use in areas such as cor-
rectional, detention, and mental health
care facilities.
The unique features of the Model
TFP PH5 provide a tamper-resistant
sprinkler design that helps eliminate
the opportunity for individuals to injure
themselves or others with components
of a fire sprinkler. At the same time,
the Model TFP PH5 optimizes an
aesthetically appealing flush design
that conceals most of the operating
parts.
NOTICE
The TYCO Model TFP PH5 Institu-
tional Horizontal Sidewall Sprinklers
described herein must be installed
and maintained in compliance with
this document, as well as with the
applicable standards recognized by
the Approval agency, in addition to
the standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
Johnson Controls specifically dis-
claims any liability for damages or
injury (including death) arising out of or
caused by manipulation, dismantling,
or misuse of TFP PH5 Sprinklers or the
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
use or attempted use of the TFP PH5
Sprinklers or any component thereof as
an instrument unrelated to its intended
function as a fire protection device.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number (SIN)
TY3390
Technical
Data
Approvals
UL and C-UL Listed for light and ordinary
hazard occupancies (Refer to the Design
Criteria section.)
NYC under MEA 351-01-E
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connection
1/2 in. NPT
Discharge Coefficient
K = 5.6 GPM/psi ½ (80,6 LPM/bar
Temperature Ratings
165°F (74°C)
Finishes
Sprinkler: Chrome Plated
Escutcheon: Chrome Plated
Physical Characteristics
Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Deflector Hood . . . . . . . . . . . . . . . . . . . . .Bronze
Deflector Post . . . . . . . . . . . . . . . . . . . . . .Bronze
Deflector Post Pin . . . . . . . . . . . . . . . . . . .Bronze
Deflector Core . . . . . . . . . . . . . . . . . . . . . .Bronze
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Release Spring . . . . . . . . . . . . . . . . . . . . .Bronze
Sealing Assembly . . Beryllium Nickel w/TEFLON
Dust Cover . . . . . . . . . . . . .Chrome Plated Steel
Fusible Element . . . . . . . . . . . . .Solder, Copper,
AUGUST 2018
Worldwide
Contacts
Operation
In the standby condition, the design of
the TYCO Model TFP PH5 is such that
a dynamic load of 80 lb (36 kg) or more
applied to the linkage mechanism will
release the sprinkler. Also, when prop-
erly installed, the escutcheon is held
fast to the wall to deter its removal.
The shape of the escutcheon cannot
be grasped easily, which further deters
tampering.
A fusible solder operating element
secures the linkage mechanism of the
Model TFP PH5. When the rated tem-
perature is reached, the solder melts,
releasing the linkage mechanism that
½ )
holds the sprinkler closed. This release
allows the deflector to extend outward
and water to flow.
Stainless Steel
