Johnson Controls tyco TFP PH2 Manual

Model TFP PH2 — 5.6 K-factor
Institutional Pendent Sprinklers
Standard Response, Standard Coverage
General
Description

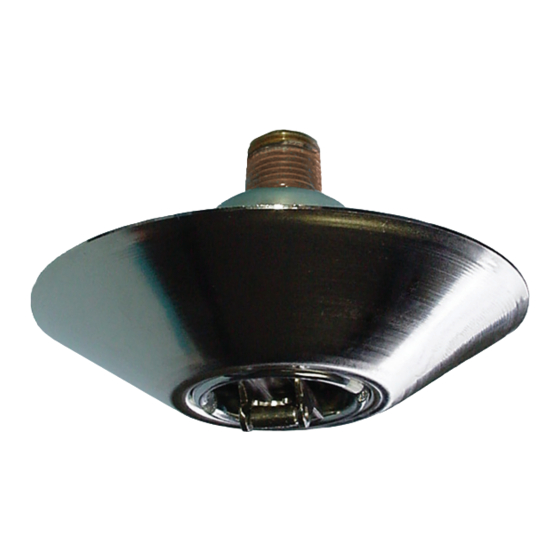

The TYCO Model TFP PH2, 5.6 K-fac-
tor, Institutional Pendent Sprinklers are
standard response standard coverage,
fusible solder type spray sprinklers
designed for use in areas such as cor-
rectional, detention, and mental health
care facilities.
The unique features of the Model TFP
PH2 provide a tamper resistant sprin-
kler design that helps eliminate the
opportunity for individuals to injure
themselves or others with the compo-
nents of a fire sprinkler. At the same
time, the Model TFP PH2 optimizes an
aesthetically appealing flush design
that conceals most of the operating
parts.
NOTICE
The Model TFP PH2 Institutional Pendent
Sprinklers described herein must be
installed and maintained in compliance
with this document, as well as with the
applicable standards of the NATIONAL
FIRE PROTECTION ASSOCIATION, in
addition to the standards of any other
authorities having jurisdiction. Failure to
do so may impair the performance of
these devices.
The owner is responsible for maintaining
their fire protection system and devices
in proper operating condition. Contact
the installing contractor or product
manufacturer with any questions.
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
Sprinkler
Identification
Number (SIN)
TY3290
Technical
Data
Approvals
UL and C-UL Listed
NYC under MEA 351-01-E
(Refer to the Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connection
1/2 in. NPT
Discharge Coefficient
K=5.6 GPM/psi ½ (80,6 LPM/bar
Temperature Ratings
165°F (74°C) or
212°F (100°C)
Finishes
Sprinkler: Chrome Plated
Escutcheon: Chrome Plated
Physical Characteristics
Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Deflector Reinforcement
Deflector Post . . . . . . . . . . . . . . . . . . . . . .Bronze
Deflector Post Pin . . . . . . . . . . . . . . . . . . .Bronze
Deflector Core . . . . . . . . . . . . . . . . . . . . . .Bronze
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Release Spring . . . . . . . . . . . . . . . . . . . . .Bronze
Core Sleeve . . . . . . . . . . . . . . . . . . . . . . . Copper
Sealing Assembly . Beryllium Nickel w/ TEFLON
Dust Cover . . . . . . . . . . . . .Chrome Plated Steel
Fusible Element . . . . . . . . . . . . .Solder, Copper,
AUGUST 2018
Worldwide
Contacts
Operation
In the standby condition, the design
of the Model TFP PH2 is such that a
dynamic load of 80 lb (36 kg) or more
½ )
applied to the linkage mechanism will
release the sprinkler. Also, when prop-
erly installed, the escutcheon is held
fast to the ceiling to deter its removal.
The shape of the escutcheon cannot
be easily grasped, which further deters
tampering.
A fusible solder operating element
secures the linkage mechanism of the
Model TFP PH2. When the rated tem-
perature is reached, the solder melts,
Bronze
releasing the linkage mechanism that
holds the sprinkler closed. This allows
the deflector to extend downward and
water to flow.
Design
Criteria
Stainless Steel
The TYCO Model TFP PH2, 5.6 K-fac-
tor, Institutional Pendent Sprinklers
(TY3290) are intended for use with
fire protection systems designed in
accordance with the standard instal-
lation rules recognized by the appli-
cable Listing or Approval agency (for
example, Listing is based on NFPA 13
requirements).
www.tyco-fire.com
TFP650
