DV-5A Red-E Cabinet
Integrated Preaction Fire Protection Package
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/dv-5a-red-e-
cab-inte-pre-fire-pro-pack
General
Description

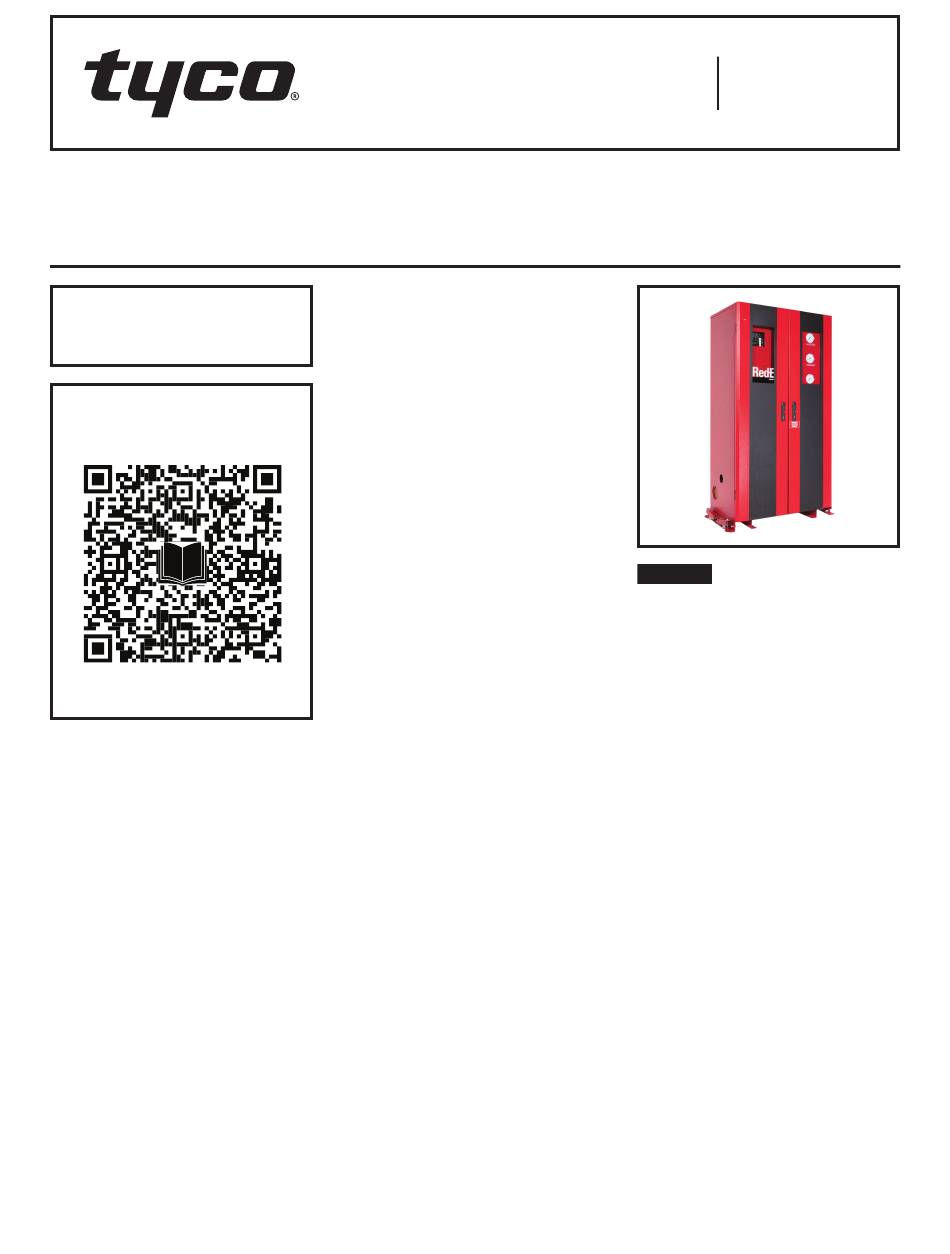

The TYCO DV-5 Red-E Cabinet is a
A
pre-assembled fire protection valve
package enclosed within a free-stand-
ing cabinet designed to occupy minimal
floor space and to provide an aestheti-
cally pleasing enclosure for a fire pro-
tection valve riser. The entire package
is pre-wired and the water inlet and
outlets to the valve riser are grooved
to provide minimal installation time.
The valve package includes a system
(manual) shut-off control valve, an auto-
matic water control valve, and water-
flow/supervisory switches. A built-in
air compressor with associated con-
trols provides an automatic air supply
for use as either supervision and pneu-
matic actuation of the automatic water
control valve.
Page 1 of 8
Integral to the DV-5 Red-E Cabinet is a
A
control panel and back-up batteries for
providing electrical alarm, supervisory,
and trouble functions. All switches
within the cabinet are pre-wired to the
control panel, making the electrical
connections for power, detection cir-
cuits, and alarms the only remaining
connections to complete the system.
In addition to the control panel being
integral to the DV-5 Red-E Cabinet,
A
windows are provided in the door for
viewing the releasing panel functions
and essential system pressure gauges.
A lock for the control panel access door
is standard, and a lock for the cabinet
door is optional.
Features and benefits are as follows:
• Aesthetically pleasing appearance
• Professionally assembled
• Internally wired
• Custom manufactured
• All gauges and panel display are
externally visible
• Industrial grade rollers (4) are stan-
dard at bottom of cabinet
• Forklift compatible
• Two-door cabinet design for ease of
maintenance
• Internal, gauge panel, and control
panel lighting
• Optional Model QRS Electronic
Accelerator for the 6 in. and 8 in.
Double Interlock Electric/Electric
Actuation system types
• Optional seismic kit
The DV-5 Red-E Cabinet is designed
A
to readily incorporate 1-1/2 to 8 in.
(DN40 to DN200) valve risers for the
following types of preaction systems:
• Single Interlock Wet Pilot Actuation
• Single Interlock Dry Pilot Actuation
• Single Interlock Electric Actuation
• Double Interlock Electric/Pneumatic
• Double Interlock Electric/Electric
• Preaction Type A
JULY 2022
Worldwide
www.tyco-fire.com
Contacts
NOTICE
The DV-5 Red-E Cabinets described
A
herein must be installed and main-
tained in compliance with this docu-
ment and with the applicable standards
of the NATIONAL FIRE PRO TECTION
ASSOCIATION (NFPA), in addition to
the standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Technical
Data
Approvals
UL and C-UL Listed, FM Approved,
CSFM Listed System Types
• Single Interlock Wet Pilot Actuation
• Single Interlock Dry Pilot Actuation
• Single Interlock Electric Actuation
• Double Interlock Electric/
Pneumatic Actuation
• Double Interlock Electric/Electric
Actuation
