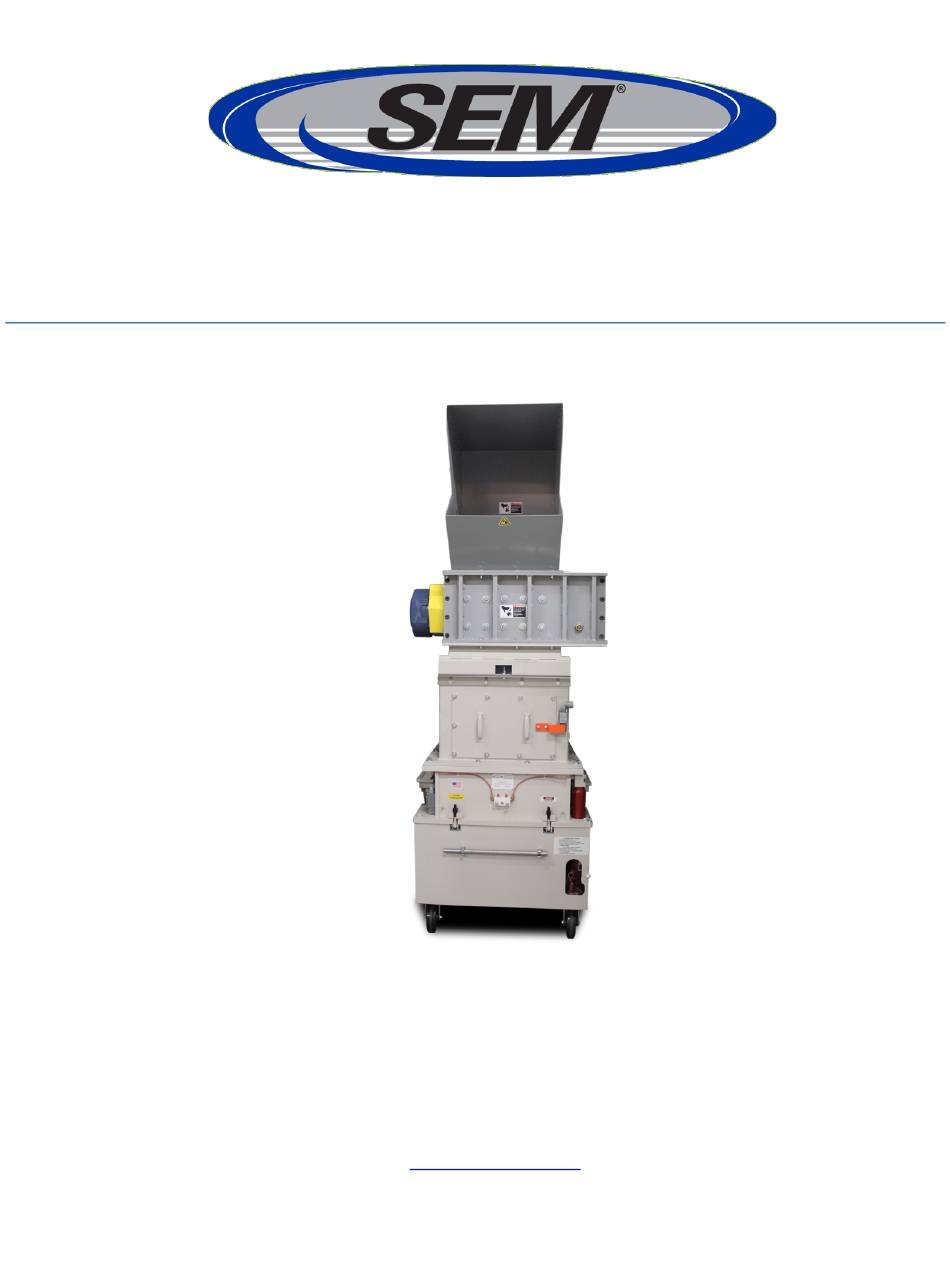

- Page 1 Operation and Maintenance Manual SEM Model 3000 MAN-013 | Created 11/19/2019 | ECN: 00434 For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive • Westborough, MA 01581 service@semshred.com 1-508-366-1488 www.semshred.com...
-
Page 2: Table Of Contents
Table of Contents Disintegrator Safety Rules ........................3 1. Introduction ............................4 2. Installation ............................5 3. Pre-Operational Procedures ....................... 7 3.1 Pre-Operation Checklist ......................... 8 4. Operation Instructions ........................9 5. Service Instructions .......................... 10 5.1 Changing Knives: ..........................12 5.2 Sharpening Knives: .......................... -
Page 3: Disintegrator Safety Rules
SAFETY GLASSES OR A FACE SHIELD MUST ALWAYS BE WORN when operating or servicing the machine. Although SEM machines are designed for the maximum in fly back control, caution must be used when operating near the area of the hopper feed opening in order to guard against unexpected material fly back. -
Page 4: Introduction
Evacuation General Description SEM disintegrators are designed to uniformly and consistently reduce the size of waste products through a user selected sizing screen. The rotor on which the cutting knives are mounted is a fabricated, steel unit supported by bearings mounted outside the cutting chamber. -
Page 5: Installation
All non-painted items subject to corrosion are coated with a quality rust preventative and the machine is then covered with heavy duty polyethylene to protect it from moisture and dirt. SEM Disintegrators are normally shipped completely assembled unless the size of the machine or an agreement for special shipping arrangements causes partial disassembly. - Page 6 SETUP Make certain the floor is clean, level, and free of obstructions before placing the machine into position. Open the machine by loosening the hex coupling nut(s) at the front of the machine enough to allow for rotation of the threaded swing bolts out of the clamp(s). Visually inspect the hopper in-feed opening to ensure that no stray packing material or debris is present.
-
Page 7: Pre-Operational Procedures
If the voltage is not the same, contact SEM customer service for voltage modification instructions. Once it has been determined that the voltages are correct, it is necessary to start the motors and check for the proper direction of rotation. -
Page 8: Pre-Operation Checklist
3.1 Pre-Operation Checklist After all electrical and mechanical machine elements have been inspected and any defects corrected, the following pre-operational checklist should be used to ensure the disintegrator is ready for operation: • Have all installation and preparation instructions been read and followed? •... -
Page 9: Operation Instructions
4. Operation Instructions NOTE: Please read this section carefully, as most problems occur during the first days of operation. These problems can be eliminated by a careful review of this section. Machine ready: all doors, covers, guards, and limit switches are in place, securely fastened, and functional. All accessory components are properly connected. -
Page 10: Service Instructions
5. Service Instructions 1). Make sure the machine is de-energized from its power source using proper Lock-Out Tag-Out (LOTO) procedures before servicing. 2). Remove the bolts (7x) located on the top of the mid-hopper that are securing it to the frame in order to adjust it for servicing. - Page 11 8th Bolt (Top View) Figure 1 Figure 2 Figure 3 Figure 4 508.366.1488 | www.semshred.com...
-
Page 12: Changing Knives
Inspect knives weekly and sharpen after every 80-100 hours of use. Knives may be sent to SEM or a capable machine shop in your area for sharpening. When sharpened, the rotor knives must be sharpened as a set to maintain consistency in tolerances between the bed knives. If knives are badly nicked or damaged, they will function after sharpening if 75% of the cutting surface is effective. - Page 13 The general rule is to place a rotor knife and bed knife back to back as shown above and measure the total distance equal to dimension A above. Cutting Chamber for Model 3000 3 Rotor Knives, 2 Bed Knives 508.366.1488 | www.semshred.com...
-
Page 14: Belts
5.3 Belts Prior to startup of this machine it is recommended that the drive belt tension be checked for proper run in deflection force as shown in illustration. After the equipment has run between 24 and 48 hours, drive belt tension must again be checked for proper operational deflection. -
Page 15: Bearing Lubrication
All SEM security disintegrators and accessories are supplied with pillow block bearings which are pre- lubricated from the factory. The external mounting of bearings on SEM Security Disintegrators results in a trouble free, low maintenance, and long life bearing design. -
Page 16: Troubleshooting
Machine is overloaded. Reduce amount of feedstock put into the machine per unit of time. c. Bearings have exceeded their rated life. Consult with SEM customer service for replacement instructions. d. Bearings are not properly installed or tightened. Consult with SEM customer service for installation instructions. - Page 17 7. Motor will not start a. Fuses are blown or circuit breaker popped. Replace fuses with the size and type shown on the wiring diagram or reset circuit breaker (located in the control enclosure). b. A limit switch is open. Check the limit switches at the machine front doors and any hopper cleanout door.
-
Page 18: Tools, Ppe, Spare Parts
The serial number of the machine will also be required when ordering parts from SEM. This listing of recommended parts does not include all parts which are available for purchase. SEM customer service can be reached at 1-800-225-9293 or www.semshred.com. - Page 19 For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive • Westborough, MA 01581 service@semshred.com 1-508-366-1488 www.semshred.com Follow us on social media: Facebook: https://www.facebook.com/semshred Twitter: https://twitter.com/semsecure Linkedin: https://www.linkedin.com/company/security-engineered-machinery Youtube: https://www.youtube.com/user/datadestruction 508.366.1488 | www.semshred.com...
