T&D RTR-505 User Manual

Wireless Data Recorder
RTR-505
User's Manual
Thank-you-for-purchasing-our-product.-
Carefully-read-this-instruction-manual-before-using-this-Unit.

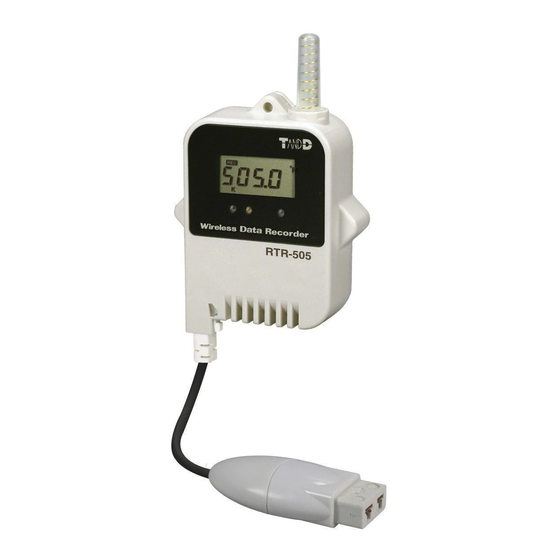

Outline of RTR-505
Part Names
External Input Module Type
Splash proof (rated for use in daily life)
Antenna
RTR-505-is-a-Data-Logger-designed-to-measure-and-
record-different-items-depending-on-the-Input-Module-to-
be-connected:-temperature-(Thermocouple/Pt),-voltage,-
4-20mA,-and-pulse.--The-body-is-splash-proof-(rated-for-
LCD-Display
use-in-daily-life),-which-can-be-placed-in-an-environment-
between--40-and-80°C.--Recorded-data-can-be-
automatically-collected-from-the-RTR-505-via-wireless-
Optical-
communication-with-the-Base-Unit-(sold-separately),-and-
also-viewed-in-graph-and-table-form-as-well-as-printed- Communication-
out-by-using-the-supplied-software.
Area
Package-Contents:--
Module
Data-Logger-(RTR-505),-Tubed-Lithium-Battery-(LS14250),-
Jack
Input-Module(*),-Strap,-User's-Manual-(this-manual-
including-warranty)-
*-An-Input-Module-included-in-the-package-differs-
depending-upon-which-"set-model"-has-been-purchased.-
RTR-505 is a Remote Unit. In order to use wireless
communication, it is necessary to purchase a Base Unit
separately. (Compatible Base Units: RTR-500NW, RTR-
500AW, RTR-500, RTR-500DC,RTR-500GSM)
Wireless Data Recorder RTR-505 is referred to as the "Unit"
in this manual.
T&D Corporation
http://www.tandd.com/
817-1-Shimadachi-Matsumoto,-Nagano-390-0852-JAPAN
Fax:+81-263-40-3152
©-Copyright--T&D-Corporation.---All-rights-reserved.-
This-is-printed-using-recycled-paper.- 2016.11-16504760013-(3rd-Edition)
1. Installing the Battery
1.
Remove the screws and open the cover.
Make-sure-to-use-the-proper-size-and-type-of-screwdriver.-(Phillips-head-#1-screwdriver-is-recommended.)
2.
Insert the included battery.
Do-not-remove-the-battery-from-its-tube-casing.
Screws
3. Check the rubber packing for any cuts or scratches and close the cover as it was when
opened.
- - Dust-or-defects-on-the-packing-can-adversely-affect-the-waterproof-capacity;-in-this-case,-remove-the-dust-or-replace-the-pack-
ing-if-it-is-damaged.
- - Be-sure-to-completely-close-the-cover.
- - Make-sure-not-to-over-tighten-the-screws.--
(Appropriate-Tightening-Torque:-20N cm-to-30N cm{2Kgf cm-to-3Kgf cm})
Cover
Notes about Battery Installation
-
- - After-inserting-the-battery-for-the-first-time,-nothing-may-appear-or-occur-for-about-10-seconds;-this-is-not-a-malfunction.
Rubber-
- - If-a-new-battery-has-been-installed-and-nothing-appears-in-the-display,-please-remove-and-reinsert-the-battery.
Packing
- - When-inserting-a-battery,-make-sure-no-water-or-foreign-objects-get-inside-the-case.
- - Make-sure-that-+-and---are-in-the-correct-direction.
About Lithium Batteries
- - When-using-an-LS14250-type-lithium-battery,-even-though-a-new-battery-has-been-inserted-the--battery-warning-mark-may-
remain-on-for-a-short-time.-This-is-due-to-a-special-characteristic-of-the-battery.-Note-that-the-longer-the-battery-has-been-in-stor-
age-the-longer-the-amount-of-time,-from-10-minutes-to-about-1-hour,-the-battery-warning-mark-will-remain-on.-If-during-that-time-
the-Base-Unit-is-used-to-get-the-current-status-of-the-Remote-Unit,-the-remaining-battery-level-will-show-that-the-battery-level-is-low.
- - Please-store-the-LS14250-in-a-place-that-is-20°C-or-less.
- - The-estimated-battery-life-of-the-Lithium-Battery-LS14250-is-about-ten-months-if-recorded-data-is-downloaded-once-a-day-or-the-
monitoring-occurs-once-every-10-minutes.
Lithium-Battery
- - When-using-lithium-batteries-other-than-LS14250-produced-by-SAFT,-such-as-CR2,-product-specifications-cannot-be-guaranteed-
(inserted-into-tube)
nor-can-the-performance-of-some-functions,-such-as-the-battery-warning-function.
- - Please-avoid-using-the-CR2-in-the-following-situations:
Using-the-unit-in-an-environment-below-0-°C-or-above-60-°C
Exposing-the-CR2-to-continuous-vibration-such-as-in-transportation
- - When-using-a-CR2-lithium-battery,-the-tube-is-not-necessary.
- - To-maintain-waterproof-capacity,-when-changing-batteries-also-change-the-rubber-packing-and-the-drying-agent-(silica-gel).-When-
using-a-CR2-lithium-battery,-please-purchase-the-optional-Maintenance-Set-(TR-00P1)-to-replace-the-rubber-packing-and-silica-gel.
Specifications
Device-Name RTR-505-/-505L
Measurement-Items-(*1) Temperature-/-Voltage-/-4-20mA-/-Pulse-Count
Select-from-15-choices:-1,-2,-5,-10,-15,-20,-and-30-sec.-/-1,-2,-5,-10,-
Recording-Intervals
15,-20,-30,-and-60-min.-
Logging-Capacity 16,000-Readings
Recording-Mode-(*2) Endless-/-One-Time-(Factory-Default-Setting:-Endless)
Measurement,-Recording-Status,-Recording-Mode,-Battery-Life-
Warning,-Unit-of-Measurement,-Full-(Logging-Capacity-FULL),-
LCD-Displayed-Items
Sensor-Unconnected,-Input-Module-Unconnected,-Measurement-
Range-Exceeded,-Display-Range-Exceeded)
Communication-
Wireless-Communication-/-Optical-Communication
Interfaces
Wireless-Communication-
Specifications
RF-Power 7mW
Radio-Standard- FCC-Part15-Section247-/-IC-RSS-210
Specifications Frequency-Range-:-902-to-928MHz
Transmission-Range About-150-meters-(500-ft)-(if-direct-and-unobstructed)
Communication-
About-2-min.-(when-downloading-1-unit-at-full-logging-capacity)
Speed
Optical-Communication-Speed About-160-sec.-(when-downloading-1-unit-at-full-logging-capacity-at-2400bps)
Lithium-Battery-(LS14250)---L-Type:-Large-Capacity-Battery-Adaptor-
Power Kit-(RTR-500B1)(*3)-
External-Power-Adaptor-Kit-(-RTR-500A2:-sold-separately-)-
Battery-Life-(*4) About-10-months-(for-temperature-measurement)
Waterproof-Capacity Splash-proof-(rated-for-use-in-daily-life)-(*5)
Dimensions H62×W47×D19mm-(excluding-protrusions-and-sensor)
Weight About-50g-
Operating-Temperature-Range:---30-to-80°C
(The-operating-temperature-range-and-measurement-range-is--40-to-
Operating-Environment
80°C,-but-wireless-communication-cannot-occur-in-an-environment-
of-less-than--30°C.)
A-Base-Unit-is-required-(sold-separately).
Other (Compatible-Base-Units:-RTR-500NW,-RTR-500AW,-RTR-500,-
RTR-500DC,RTR-500MBS-A)
(*1)- Measurement-items-other-than-Pulse-will-have-different-measurement-range-depending-on-the-Input-
Module-and-sensor-to-be-connected.--For-details,-see-the-User's-Manual-included-with-the-Input-Module.
(*2)- Only-"Endless"-is-available-when-using-RTR-500W-for-Windows-or-RTR-500MBS-for-Windows.
(*3)--When-using-RTR-500B1-it-is-necessary-to-purchase-Lithium-Battery-(LS26500).-For-details,-contact-
your-local-authorized-distributor.
(*4)- Battery-life-varies-depending-upon-the-ambient-temperature-in-which-it-is-used,-the-recording-
interval,-the-frequency-of-communication,-and-the-battery-performance.-All-estimates-are-based-on-
operations-carried-out-with-a-new-battery-and-are-in-no-way-a-guarantee-of-actual-battery-life.
(*5)- This-is-the-waterproof-capacity-of-a-Unit-with-an-Input-Module-connected.--
The-specifications-listed-above-are-subject-to-change-without-notice.
2. Connecting an Input Module
Insert an Input Module into the module jack. Once the Unit recognizes the module, the LCD display will change as
shown below and recording will start. (If you have purchased an RTR-505-P, the Unit has been set by default to start
recording upon installation of the battery.)
- - The-factory-default-settings-are-as-follows:-Recording-Interval:10-minutes,-and-Recording-Mode:-Endless.
Set-Model-Number Measurement-Item Input-Module
Temperature
RTR-505-TC
(Type-K,-J,-T,-S)
Temperature
RTR-505-Pt
(Pt100,-Pt1000)
RTR-505-V Voltage
Make-sure-that-the-module-is-completely-
RTR-505-mA 4-20mA
inserted-until-you-hear-a-"click"-sound.
RTR-505-P Pulse
3. How to Read the LCD Display
When being used in very hot or cold environments the display may become difficult to read. This is not a malfunction.
Basic LCD Display
-
[REC]-Mark The-recording-status-will-appear.
ON:-Recording-in-progress--
BLINKING:-Waiting-for-programmed-start
[ONETIME]-Mark When-the-recording-mode-is-set-to-"One-Time",-
this-mark-will-appear.-The-factory-default-setting-
is-"Endless"-and-this-mark-will-not-appear.
Battery-Warning- When-it-is-time-for-the-battery-to-be-replaced,-this-
Mark mark-will-appear.
Measurements-and- Measurements-or-operational-messages-will-ap-
-
Messages-Area pear-here.
The-type-of-sensor-connected-to-or-set-in-the-Unit-
will-appear.
Sensor-Type
Thermocouple-Sensor:-K,-J,-T,-S--
Platinum-Thermal-Resistance-Sensor:-Pt-(Pt100),-
PtK-(Pt1000)
The-unit-of-measurement-for-the-display-will-ap-
Unit-of-Measurement
pear.
Battery Replacement
1.
When it is time for the battery to be replaced, a battery
warning mark will appear.
Please-replace-the-battery-as-soon-as-possible-if-this-
mark-appears.
-
2. If you do not change the battery and continue using the
Unit, the measurement display will intermittently
display [bAtt].
- - After-this-point-the-downloading-of-data-can-no-
longer-be-done-via-wireless-communication.
- - Without-changing-the-battery-and-attempting-to-use-
optical-communication-to-download-recorded-data,-
the-communication-may-be-broken-and-if-so-all-
recorded-data-may-be-lost.
- - Recording-will-be-continued.
3. If the battery is further left unchanged, the display will
automatically shut off.
If,-at-this-time,-a-new-battery-is-placed-in-the-Unit,-
[CHEC]-will-appear-on-the-display-after-which-record-
ing-will-begin-again-using-the-previously-set-recording-
conditions.-Note-however-that-all-previously-recorded-
data-will-have-been-lost.
LCD-Displayed-Items-(see-the-following-section-#3)
Thermocouple-Module-(TCM-3010) Measurement,-Unit-of-Measurement,-Sensor-Type,-Operational-Status
Pt-Module-(PTM-3010) Measurement,-Unit-of-Measurement,-Sensor-Type,-Operational-Status
Voltage-Module-(VIM-3010) Measurement,-Unit-of-Measurement,-Operational-Status
4-20mA-Module-(AIM-3010) Measurement,-Unit-of-Measurement,-Operational-Status
Pulse-Input-Cable-(PIC-3150) Measurement,-Unit-of-Measurement,-Operational-Status
Estimated Battery Life
When-a-battery-warning-mark-appears,-try-to-replace-the-battery-with-a-new-
one-as-soon-as-possible.
In a normal temperature environment, where recorded data is down-
loaded once a day or if monitoring is carried out once every ten minutes:
Set-Model-Number Battery-Life-(Recording-Interval:-10-seconds-or-longer)
RTR-505-TC About-10-months
RTR-505-Pt About-10-months
RTR-505-V About-10-months
RTR-505-mA About-10-months
RTR-505-P About-10-months
- - The-battery-warning-mark-may-appear-sooner-than-noted-above.
- - Battery-life-will-be-shortened-when:-downloading-data-very-often,-setting-the-record-
ing-interval-at-less-than-ten-seconds,-or-measuring-in-an-environment-below--20°C-
(-4°F)-or-above-60°C-(140°F).
Notes about Changing the Battery
- - Before-replacing-a-battery,-please-make-sure-to-download-any-necessary-data-and-
proceed-with-changing-the-battery.
- - If-+-(plus)-and-–-(minus)-are-mistaken,-or-if-the-battery-terminals-+-and-–-are-shorted,-
the-recorded-data-that-is-stored-in-the-Unit-will-be-lost.
- - Downloading-of-data-cannot-occur-while-the-battery-is-removed.
Example of Display
Display-varies-depending-upon-the-model-being-used.
RTR-505-TC (Thermocouple)
Temperature-measurement-(Unit:-°F-/-°C)-will-be-
displayed.-Sensor-type-will-be-displayed-under-the-
measurement;-the-factory-default-setting-is-Type-K.-
By-using-the-software-included-with-the-Base-Unit,-
you-can-change-the-sensor-type.
RTR-505-Pt (Pt100 / Pt1000)
Temperature-measurement-(Unit:-°F-/-°C)-will-be-
displayed.-Sensor-type-will-be-displayed-under-the-
measurement;-the-factory-default-setting-is-Pt100.-
By-using-the-software-included-with-the-Base-Unit,-
you-can-change-the-sensor-type.
RTR-505-V (Voltage)
Voltage-measurement-(Unit:-V-/-mV)-will-be-dis-
played.-Due-to-the-wide-measurement-range,-the-
Unit-has-been-set-by-default-to-adjust-the-decimal-
point-automatically-to-display-the-measurement-in-V.-
By-using-the-software-included-with-the-Base-Unit,-
you-can-change-the-unit-of-display.
RTR-505-mA (4-20mA)
4-20mA-measurement-(Unit:-mA)-will-be-displayed.
RTR-505-P (Pulse)
There-are-two-display-methods-for-the-pulse-measurement.-By-using-the-
software-included-with-the-Base-Unit,-you-can-change-the-display-method.
Continued-on-Back-Page.->>
