BAC S ( BAC MS/TP):
NET LAVE FOR NET
This section is used to define the main parameters of BACnet MS/TP line. The
means of the fields are:
In the field "Baudrate" the data rate of the BACnet line is defined;
In the field "Parity" the parity of the line is defined;
In the field "BACnet Device
defined;
In the field "MAC Address" the MAC of BACnet node (from 0 to 254) is
defined;
The field "Max Master" specifies the highest allowable address for master
nodes. The value shall be less than or equal to 127;
The field "Max Info Frames" specifies the maximum number of information
frames the node may send before it must pass the token;
In the field "Device
converter is defined;
In the field "Network" the BACnet MS/TP network number is defined;
If the field "BACnet description up to 32
description of the BACnet objects can be up to 32 chars.
NTP (N T P
ETWORK IME ROTOCOL
This section is used to define the parameters of NTP protocol. The means of the
fields are:
In the field "Server URL" the URL or the IP Address of the NTP Server is
defined;
In the field "Poll Time
synchronization is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Name" the name to give to the BACnet node is
Instance" the of the BACnet MS/TP side of the
chars" is checked, the
)
(seconds)" the polling time for the time
User Manual OPC UA Client / BACnet Slave
Document code: MN67B11_ENG Revision 1.002

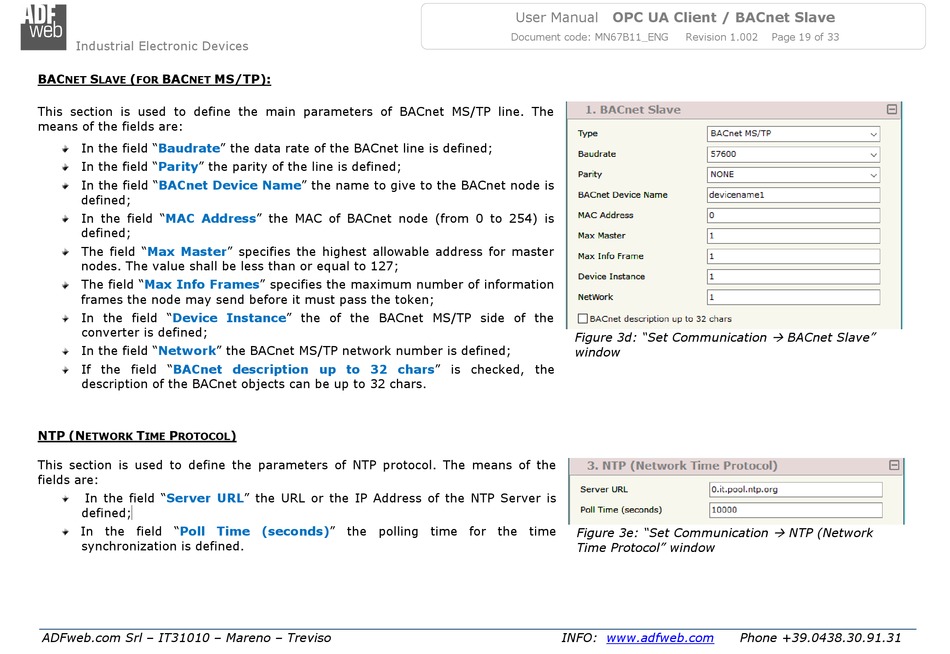

Figure 3d: "Set Communication
window
Figure 3e: "Set Communication
Time Protocol" window
