Nedap TRANSIT Entry Quick Reference page 2

Step 3

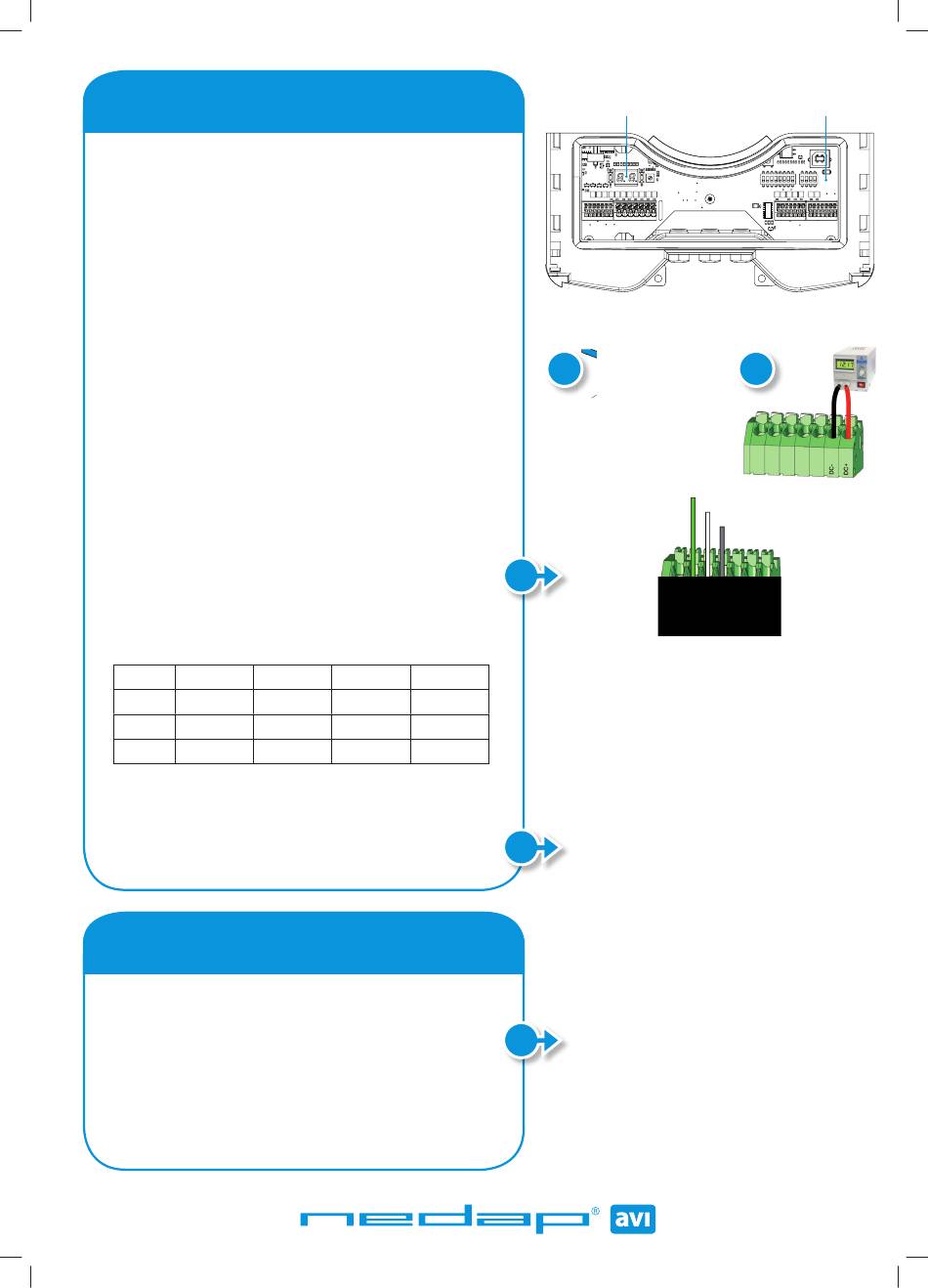

Connections
Connection procedure with spring cage terminal connectors.
1. Strip wire lead for about 9 mm (0.35 inch).
2. Push the screwdriver straight down to release the spring cage.
Use a slotted, narrow-head screwdriver.
3. Insert the wire lead into the wire terminal.
4. Remove the screwdriver, this clamps the wire.
5. Gently pull on the installed wire to make sure the connection is reliable.
Note 1: Each connector terminal can accommodate only 1 solid or stranded wire.
Note 2: Wiring is normally done without ferrules. However, it is possible to
use ferrules, provided that they are properly crimped.
Step 3.1 Power supply
The TRANSIT Entry requires DC power supply in the range from 12 - 24V.
Connections:
DC- Power supply 0V. Should be connected to a protective earth connection.
DC+ Power supply 12 - 24VDC.
Note: The power supply connection has an auto resetting fuse protection.
Step 3.2 Wiegand, magstripe,
barcode connection
The synchronous communication interface wiring depends upon the
selected communication protocol and the reader firmware. Please refer to
the firmware manual for more details.
Note: Maximum cable length 150 meters (500 feet)
OUT1 OUT2
Wiegand Data-0 (green) Data-1 (white)
Magstripe Card Loaded Clock
Barcode
Step 3.3 RS232 connection
The TRANSIT Entry has an on-board RS232 interface, see firmware
manual for details.
Step 4
Digital I/O
Step 4.1 Relay output
The relay output is automatically activated upon identification of a
transponder,refer to the firmware manual for more details. The 'smile'
on the front cover lights-up simultaneously with the relay output.
Connections:
NC Relay contact normally closed
COM Relay contact common
NO Relay contact normally open
OUT 3 GND
Ground (black)
Data Ground
Data Ground
Contact ratings:
Max. switching current: 2A
Max. switching voltage: 250VAC /220VDC
Max. switching power: 62.5VA /60W
Frequency
selection
K2 K5
Screwdriver
3
W W i Wire
lead
3
.2
DIN9
Female to host
K3
3
.3
4
.1
DIP
switch
K3 K4
Power
supply
3
.1
K5 K5
DATA-0
DATA-1
GND
K2
contact
supply
K5
