Bosch
Connected
Control
BCC100
Wi-Fi Thermostat
Installation Guide and User Manual
BoschHeatingAndCooling.com

Advertisement

Table of Contents
loading

Summary of Contents for Bosch BCC100

  • Page 1 Bosch Connected Control BCC100 Wi-Fi Thermostat Installation Guide and User Manual BoschHeatingAndCooling.com...
  • Page 2 Table of Contents Installation Guide BCC100 Device User Manual BCC App User Manual Compatibility Thermostat Main Screen BCC App Thermostat Installation Icons App Main Screen Overview Initial Setup Temperature Setpoints Setpoint(s) on the App Advanced Settings Schedule Overview Thermostat Overview...
  • Page 3 Meet the Bosch Connected Control (BCC100 Thermostat) The Bosch Connected Control BCC100 Thermostat is compatible with the majority of 24V heating and cooling equipment to help you save energy and money. Easily control your home's temperature from the full color 5” touchscreen display, the Bosch Connected Control smartphone app or your voice with the Bosch Connected Control Alexa Smart Home Skill and your Alexa-enabled smart devices or with Google Assistant.
  • Page 4 For conventional (gas/oil/electric): Heat Only, Cool Only,and Combined Heat & Cool. For heat-pump systems: Up To 4-Heat & 2-Cool. The BCC100 is not compatible with other Bosch Boiler controls, such as the Logamatic. The thermostat cannot support...
  • Page 5 (for attaching the Wall Plate to the wall) Flathead Screwdriver Smartphone Wire Labels (for taking pictures of the existing wiring) Jumper Wire Bosch Connected Control smartphone app User Guide (for configuring the thermostat settings and Customer Support Card registering your device) Tools you may need Needle-Nose Pliers (for pulling wires from the wall) Drill with 7/32”...

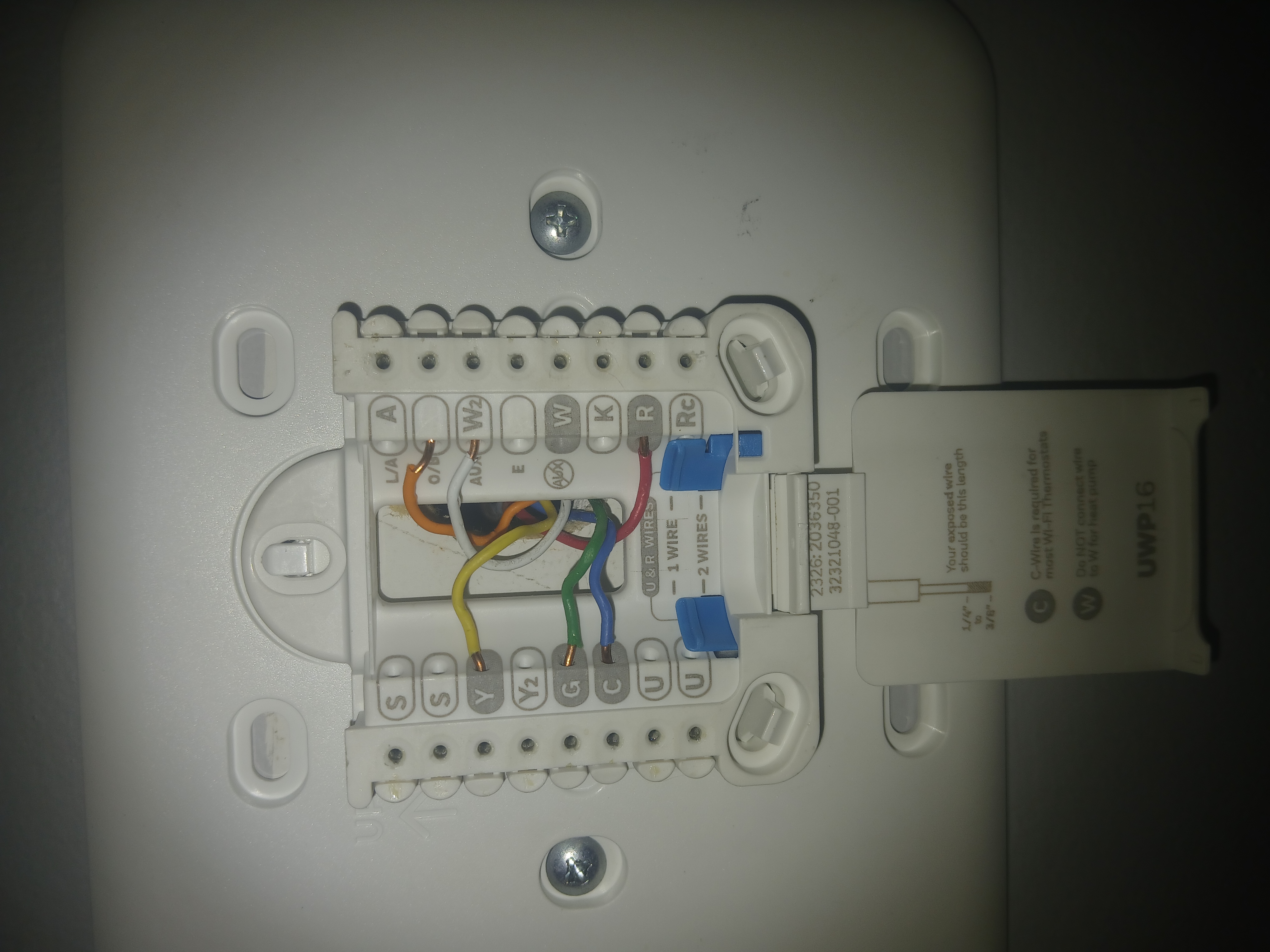

  • Page 6 If you see any of these wire nuts, or the old thermostat does not even power on, then you unfortunately the BCC100 may not have successfully turned off the power to your system. work with your system. If you are...
  • Page 7 BCC100 It is recommended to use the BCC100 Wall Plate as a reference Thermostat is compatible with your system. guide to mark the mounting holes and ensure that...
  • Page 8 Check if the wall plate is level and insert screws to place each wire. Be sure that you insert Make sure your new BCC100 wall plate is level and insert the each wire, one by one, and then included screws from the package. Mount your new wall plate immediately close the terminal and confirm to the wall using a Phillips head screw driver.
  • Page 9 2nd Stage Heating R/RC Humidifier/Dehumidifier Thermostat Power/ Cooling Appliance Power PUSH Note: The color of your wires may not be the same as shown (1)Emergency Heat activated at W/E, (2)Single-stage Auxiliary heat activated at W2/AUX, (3)Only to be used with Bosch WSHP...
  • Page 10 Download the Bosch Connected Control app to setup your new BCC100 or circuit breaker box Your BCC100 Thermostat is not yet configured to your home’s The thermostat will power on and display a Bosch logo and HVAC system. Go to the Apple App Store or Google Play Store loading bar.
  • Page 11 Follow the on-screen instructions to name your thermostat and connect your smartphone to the device. After downloading the Bosch Connected Control app, If your thermostat is unable to connect to the app, follow open the app on your smartphone and click the Register the on-screen instructions.
  • Page 12 Initial Setup If you have a furnace Select Fossil Fuel and click the Next Arrow at the top right For a quick and easy way to begin using your new smart corner of the screen. thermostat, the device will automatically direct you to the Then select Appliance or Thermostat depending on your Initial Setup screen after you have turned it on for the first time.
  • Page 13 If you have a Humidifier Note: In a dual fuel system, the BCC100 will stage up from heat Select Humidifier and click the Next Arrow at the top right pump to fossil fuel following the stage settings, which can be corner of the screen.
  • Page 14 To complete the Wi-Fi setup, follow the Follow the on-screen instructions to set the date and time of on-screen instructions. BCC100 Thermostat and then click Next Arrow at the top right corner of the screen. Scan On Device To start Wi-Fi setup, click the Scan icon to view available Wi-Fi Enter your location’s current date and time;...
  • Page 15 Wi-Fi setup. complete setup. After completing the setup, download the Bosch Connected Control App from the Apple Store or Google Play Store. Create an account within the app and then add a device (BCC100) by following the on-screen instructions.
  • Page 16 Schedule if you do not wish to set up a schedule at this time, and click the Setup button or Next arrow. Note: Home is the default schedule for your BCC100. If you wish to add a different schedule, use the Bosch Connected Control App.
  • Page 17 Vacation Note: There is a 5 degree deadband required between heating and cooling setpoints to prevent equipment from This schedule will be used to set your heating/cooling short cycling. equipment to 2 periods with set points (1 heating and 1 cooling) that can be manually adjusted.
  • Page 18 Initial Setup Review In the final step, the BCC100 provides a summary review of information that you have entered into the thermostat. You will be able to go back to different parts of the Initial Setup guide Congratulations! by pressing the different sections on the left pane or using the Previous arrow.
  • Page 19 Choose Comfort Choose Bosch!
  • Page 20 Advanced Settings allow HVAC professionals the ability to modify specific thermostat settings for better control of the heating and cooling appliance(s). In order to access the Advanced Settings of the BCC100 Thermostat, your thermostat must be connected to Wi-Fi. The Advanced Settings section is accessible from the Menu of the BCC100 thermostat.
  • Page 21 Advanced Settings Heating & Cooling u To access the Heating and Cooling, select Advanced Settings from the Menu, then select Heating and Cooling. u Enter the Professional Access Code and select a parameter to modify the default value. From this menu you can adjust: Title Default Description...
  • Page 22 Advanced Settings Device Log To access the Device Log, click Log on the Advanced Settings screen and enter the Professional Access Code. The Device Log stores up to 90 days’ worth of thermostat activity. To view historical data, select the time period you would like to view. Then select the function you would like to view: Functions Adjustment shows changes to temperature set point and schedule hold...
  • Page 23 The Dual Fuel feature is disabled when Wi-Fi is unavailable. Dual fuel requires Wi-Fi to determine outdoor air temperature and function properly. Will the BCC100 support all Wi-Fi systems & routers? This device only works with 2.4 GHz systems and is NOT compatible with 5.0 GHz systems or web pages that require additional web authentication.
  • Page 24 What is the name of the smartphone app in the App Store and Google Play Store? The name of the app is Bosch Connected Control. Bosch Control is a different Wi-Fi thermostat app used with Bosch Boilers. How many accounts can be associated with the thermostat at once? Only one account can be associated with a given thermostat.
  • Page 25 Wiring Diagrams Single Stage Heat – Furnace Example: Bosch 80% AFUE Gas Furnace - BGS80 ▶ Ensure the system has a C-wire Ensure the pre-installed jumper wire remains between RH and RC ▶ Connect the R, C, W1 and G wires from the Furnace to R/RC, C, ▶...
  • Page 26 RH and W/E on the thermostat. R/RC ▶ *NOTE: Bosch Greenstar boilers will require an external transformer to power the thermostat. The two power wire should connect to R/RC and C on the Thermostat. Combined Single Stage Heat Furnace and Single Stage Cool Air Conditioner Ensure the system has a C-wire ▶...
  • Page 27 Heat pump systems are specialty designed to be able to provide heating and cooling using a single compressor, a reversing valve, and a fan. Single Stage Heat Pump Example: Bosch Inverter Ducted Split Ensure the system has a C-wire ▶ Ensure the pre-installed jumper wire remains between RH and R/RC ▶...
  • Page 28 Wiring Diagrams Two Stage Heat Pump with One Stage Emergency Heat Ensure the system has a C-wire ▶ Ensure the pre-installed jumper wire remains between RH and R/RC ▶ ▶ Connect the R, C, W1, Y1, Y2, O/B and G wires from the heat pump to R/RC, C, W/E, Y, Y2, O/B and G terminals R/RC on the wall plate, respectively...
  • Page 29 Humidifier or Dehumidifier Accessory with a Single Stage Heat Pump A single Humidifier or Dehumidifier Accessory can be controlled using the BCC100. The thermostat only supports Humidifiers in heating operation, Dehumidifiers in cooling operation, and only one accessory per thermostat.
  • Page 31 Main Screen Main Menu Wifi / Cloud Access Status System Indicator Mode Current Current Room Schedule Current Room Adjust Humidity Temperature Temperature Set-Points...
  • Page 32 Thermostat and App Icons Basic Icons System Modes Fan Modes Menu Heat Mode Auto Exit / Save Settings Cool Mode Back Circulation Auto Mode Schedule Emergency Heat Mode Accessory Device Settings Humidifier Heating Types System Settings Dehumidifier Fossil Fuel Advanced Setting Heat Pump Weather Dual Fuel...
  • Page 33 System Connectivity Unit Operation Heat Mode Schedule on Device Heating on (1st stage) & (2nd stage) Schedule on Cloud Cool Mode Cooling on (1st stage) & (2nd stage) Wi-Fi Connection Established Auto Mode Wi-Fi Connection Not Established Heating on (1st stage) & (2nd stage) Internet is Not Available Auto Mode Cooling on (1st stage) &...
  • Page 34 Adjusting Temperature Setpoint(s) Schedule Override on the App Temporary Adjustment You can override the current schedule by scrolling the This feature will override the current set point in favor of temperature up and down with your finger. the set point you enter until the next programmed time in the schedule.
  • Page 35 Thermostat Overview Unit Operating Mode Heat: The thermostat cycles your heating appliance to maintain your scheduled heating set point. Cool: The thermostat cycles your cooling appliance to maintain your scheduled cooling set point. Auto: The thermostat cycles your heating/cooling appliance to maintain your scheduled heating/cooling set points. Off: The thermostat turns off all heating/cooling functions.
  • Page 36 Thermostat Overview Humidifier & Dehumidifier Operating Mode Temperature, Alerts, and Auto-On You can enable automatic humidity control if the correct Alert: Send an alert message or turn on the system humidifier or dehumidifier accessory was correctly wired and automatically when the room temperature is out of the range configured during the thermostat’s initial setup.
  • Page 37 Additional Information Weather Forecast Device Information The weather forecast is based on the location of the Device information will contain all the relevant Account and installed thermostat. The first time you connect your System information. thermostat to the app, your location was assigned to the Account: Change or remove the account associated with thermostat.
  • Page 39 This is a perfect solution to help you achieve maximum comfort with minimum effort! Three Ways to Download The Connected Control App In the App Store or Google Play, search “Bosch Connected Control” or “BCC100” and then download the app.
  • Page 40 App Screen Overview Back Menu Current Time Refresh / Sync Time Thermostat Screen Lock Actual Room Relative Humidity Actual Room Temperature Current Schedule Period Hold Cancel Schedule Override Cooling Setpoint Heating Setpoint System Mode Accessory...
  • Page 41 Adjusting Temperature Setpoint(s) on the App No Schedule From the Main Screen, tap Schedule the current temperature Follow the same process as and use your finger to scroll above to change the up or down to change the setpoint, but be aware that temperature setpoint.
  • Page 42 Schedule Overview Schedule Add a New Period Edit an Existing Period To add a new Period to a To edit an existing Period, To add a new Schedule, use the ‘+’ button in the top right given day, click the Add click on the Starting time, hand corner, name your schedule and click OK.
  • Page 43 Schedule Overview Delete an Existing Period Copy a Schedule Save Schedule To delete an existing period, To copy a schedule to other days of Use the Save button in the swipe left on the existing the week, click the lettered days at top right hand corner of the period and click delete.
  • Page 44 App Menu Overview Mode Device Messages Temperature Similar to the BCC100 Thermostat, Alert messages regarding your Follow the on-screen instructions to use the Mode screens to remotely specific thermostat can be read and change temperature units and set adjust the System Mode, Fan Mode deleted from this section of the app.
  • Page 45 “Alexa, Set My Thermostat to 72 degrees”...
  • Page 46 Additional Features Control Your BCC100 with Amazon Alexa Bosch offers one Smart Home Skill for integrating your BCC100 with Alexa’s voice controls. Using the Bosch Connected Control Skill from the Skills section of the Amazon Alexa App. You Can Control the BCC100 by Saying:...
  • Page 47 In the Amazon Alexa app, click on the Menu button in the top left corner. Click on the Skills section and search for “Bosch Connected Control” in the search bar at the top of the page. After you find and click on the Bosch Connected Control Skill, click on the blue Enable button.
  • Page 48 Control Your BCC100 with Google Assistant Once installed and connected to the app, Bosch offers one Smart Home link for integrating your BCC100 with Google Assistant’s voice controls. After setting up your thermostat as a new device in the Google Home app:...
  • Page 49 Google Home app at any time. The set up process should now be complete and you can start to control your BCC100 thermostat with your Google-enabled device.
  • Page 50 WARRANTY COVERAGE Limited Warranty Bosch warrants that the Product will remain free from defects in material and workmanship for five (5) years from the date of original installation or from the date of manufacture if proof of installation is not available, provided it is properly installed and the other conditions of this warranty are met.
  • Page 51 Bosch procedure then in force for handling goods returned for the purpose of inspection to determine cause of failure (contact Bosch if you have questions regarding the return process). If Bosch determines that the returned product is defective and that this warranty applies, Bosch will furnish the repaired or replacement Product.
  • Page 52 Bosch Thermotechnology Corp. Watertown, MA • Londonderry, NH • Ft. Lauderdale, FL General Inquiries: 1-800-283-3787 www.boschheatingandcooling.com 76H993390F 5/20 Copyright © 2020 Bosch Thermotechnology Corp. All rights reserved. Subject to change without notice.
