Kramer VP-4x4K Quick Start Manual page 2

# Feature
14 - Button
15 + Button
16 STATUS 7-
segment Display
# Feature

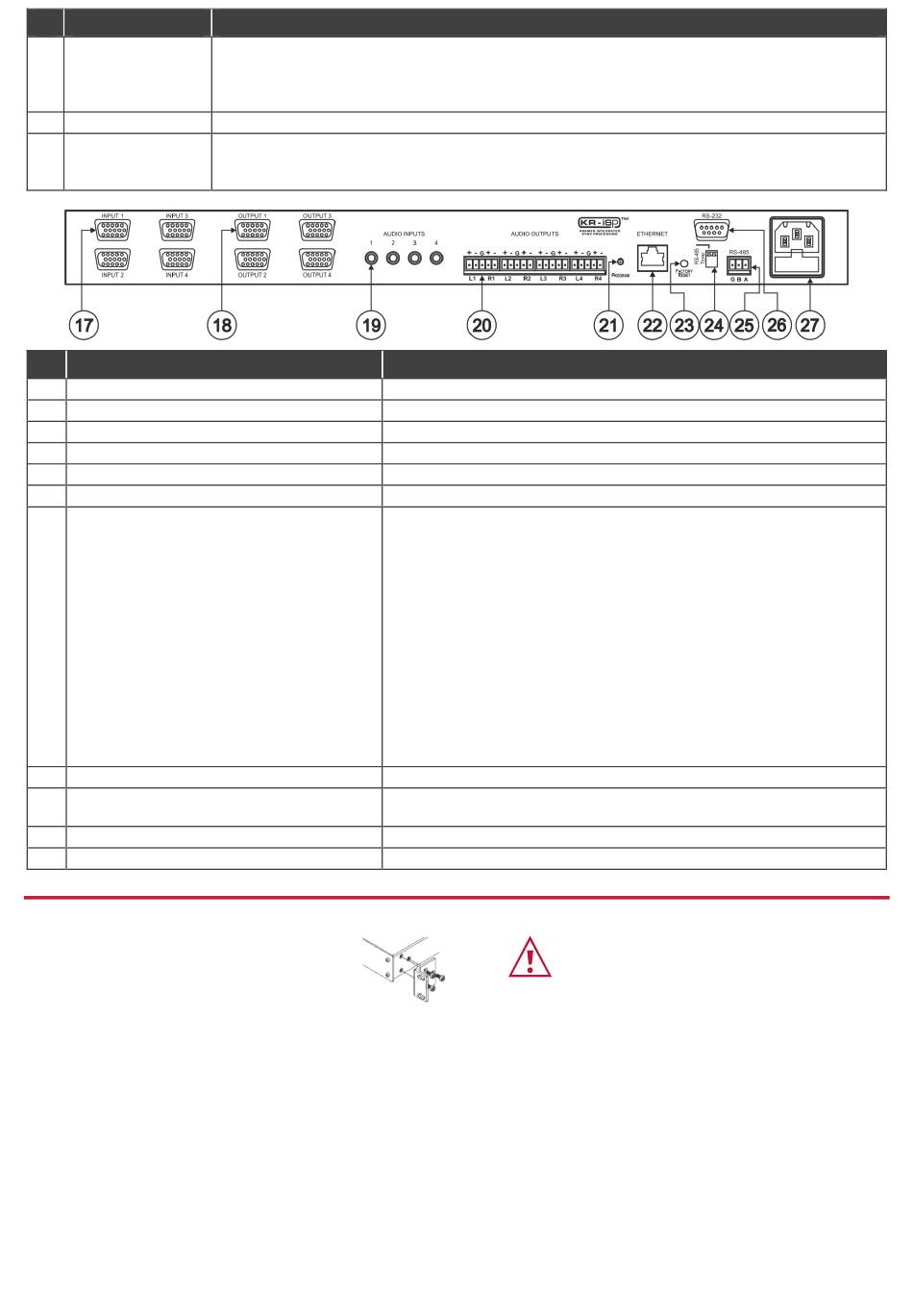

17 INPUT 15-pin HD Connectors
18 OUTPUT 15-pin HD Connectors
19 AUDIO INPUTS 3.5mm Mini Jack
20 AUDIO OUTPUTS Terminal block connectors
21 PROGRAM Button
22 Ethernet Connector
23 Factory Reset Button
24 RS-485 TERM DIP-switch
25 RS-485 Terminal Block Port
26 RS-232 9-pin D-sub Connector
27 Power Connector with Fuse
Step 3: Mount VP-4x4K
To rack mount the machine, attach both rack ears
(by removing the screws from each side of the
machine and replacing those screws through the
rack ears) or place the machine on a table.
Function
Press to decrease the numerical value
By pressing the + or - buttons continuously, you can speed up their response. For step-by-step
response, press and release these buttons as many times as needed
Gain, switching delay time and machine number
Press to increase the numerical value
Displays the selected input switched to the output (marked above each input)
Also displays the number of IN and OUT ports, the firmware version number, the MACHINE # and
the audio gain level
Function
Connect to the video sources (from 1 to 4)
Connect to the acceptors (from 1 to 4)
Connect to the unbalanced stereo audio sources (from 1 to 4)
Connect to the balanced stereo audio acceptors (from 1 to 4)
Not used (for technical staff use only)
Connects to the PC or other Serial Controller through computer networking
Press to reset to the factory default definitions:
IP number − 192.168.1.39
Mask – 255.255.0.0
Gateway – 0.0.0.0
UDP port – 50000
TCP port – 5000
Protocol 3000 commands
All 8 Presets deleted
All audio channels set to 0dB
Machine name – the last four digits of the machine's serial number
DHCP disabled
Turn the POWER switch OFF and then ON again while pressing the
Factory Reset button. The unit will power up and load its memory with the
factory default definitions
DIP 1 is for RS-485 Termination, DIP 2 is not used
Pins B (-) and A (+) are for RS-485; Pin G (Ground) may be connected to
the shield of the cable if desired
Connects to the PC or the Remote Controller
AC connector enabling power supply to the unit
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
