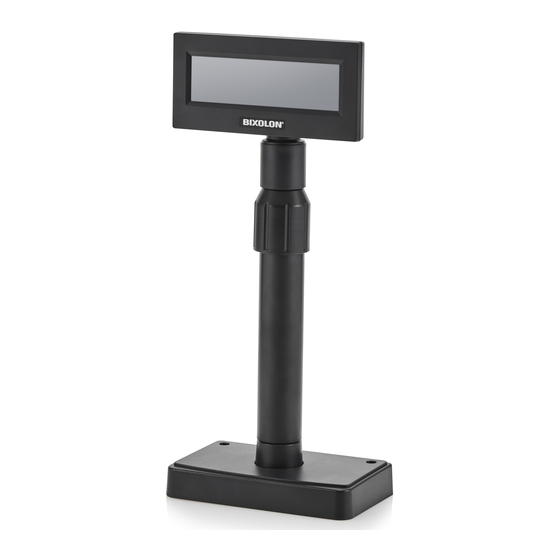

BIXOLON BCD-2000 Installation Manual & Safety Manual

Display Installation Guide & Safety Guide
KN10-00006A (Rev.1.1)
◈ Information
This Installation Guide includes a brief outline of information necessary for product
installation. For more detailed installation information, please refer to the user manual in the
enclosed CD. The contents of the CD include the following.
1. Manual: User Manual, Command Manual, Code Page
2. Drivers: Windows Drivers, OPOS Drivers, VCOM(USB) Drivers
3. SDK: mPOS SDK (Android, Windows, iOS)
4. Utility: Customer Display Utility
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality
of all our products. In following, product specifications and/or user manual content may be
changed without prior notice.
Components
◈ Product Models &
BCD-2000A BCD-2000AU
BCD-2000WA BCD-2000WAU
Common Components of All Products
CD Installation Guide
◈ Initial Settings & Options (Serial)
1. Direct Connection: Connected to the Display directly without passing through the board.
Item
Standard
Model
Connect an SMPS to the Serial Cable Jack
How to
Connect a
Power Cable to
the Serial
Cable
2. Pass Through: Data transmits through Host(PC) → Display → Printer.
Item
Standard
Model
Standard
Board
Specificati
ons
Power
(Optional)
24V, 2.5A
Cable
Types
(Optional)
,
Software Manuals
BCD-2000N BCD-2000NU
BCD-2000WN BCD-2000WNU
Screws
M3*10,Tapping 4 ea
Display- Serial
BCD-2000N BCD-2000A
Voltage Used: 24V (2pin)
BCD-2000N+SMPS
Display- Serial
BCD-2000DS
24V, 1.5A
Serial Cable 9PM to 25PF
Power Cable 3P to 3P
Power Cable 3P to 2P
CUSTOMER DISPLAY
◈ Connection Types (BCD-2000A/N/DS/WA/WN/WDS)
Standard
Components
Interface
Power
Connection 1
(Separate power
supply needed
for
Rinter/Display)
Power
Connection 2
(SMPS→Display
BCD-2000DS
→Printer)
Power
Connection 3
BCD-2000WS
(SMPS→Display
→Printer)
Serial Cable
Connection 1
(Host→Display
→Printer)
Serial Cable
Connection 2
(Host→Printer)
(Host→Display)
Misc.
◈ How to Connect (BCD-2000AU/NU/WAU/WNU)
1. Install the USB Virtual COM driver.
2. Connect the display cable to a computer via a USB port.
3. Turn on the PC and display. The PC will automatically detect new hardware connected to
the USB port.
4. Once the driver is installed, the display is ready to receive data.
◈ Swivel
This device can be swiveled freely. Please follow the instructions below to avoid damage or
malfunction when installing the device. To change the direction of the display after
installation, follow the instructions provided below.
Pole Adjustable Ball
Nut Holder
Pole-Main
(Host PC Side)
(Printer Side)
▼
▼
A
-
-
3 pin
2 pin
-
9 pin
25 pin
9 pin
25 pin
9 pin
A: Power Supply Connector (Output 24VDC, 3pin)
B: Host Interface Connector (D-SUB 25pin, Female)
C: Power Supply Connector (Input 24VDC, 2pin)
D: Display Connector
E: Printer Interface Connector (D-SUB 9pin, Male)
F: Power Supply Connector (Input 24VDC, 3pin)
(a) (b)
BCD-2000
(Display Side)
▼
B C D E F
24VDC
or
24VDC
3 pin
24VDC
3 pin
25 pin
9 pin
25 pin
(c)
