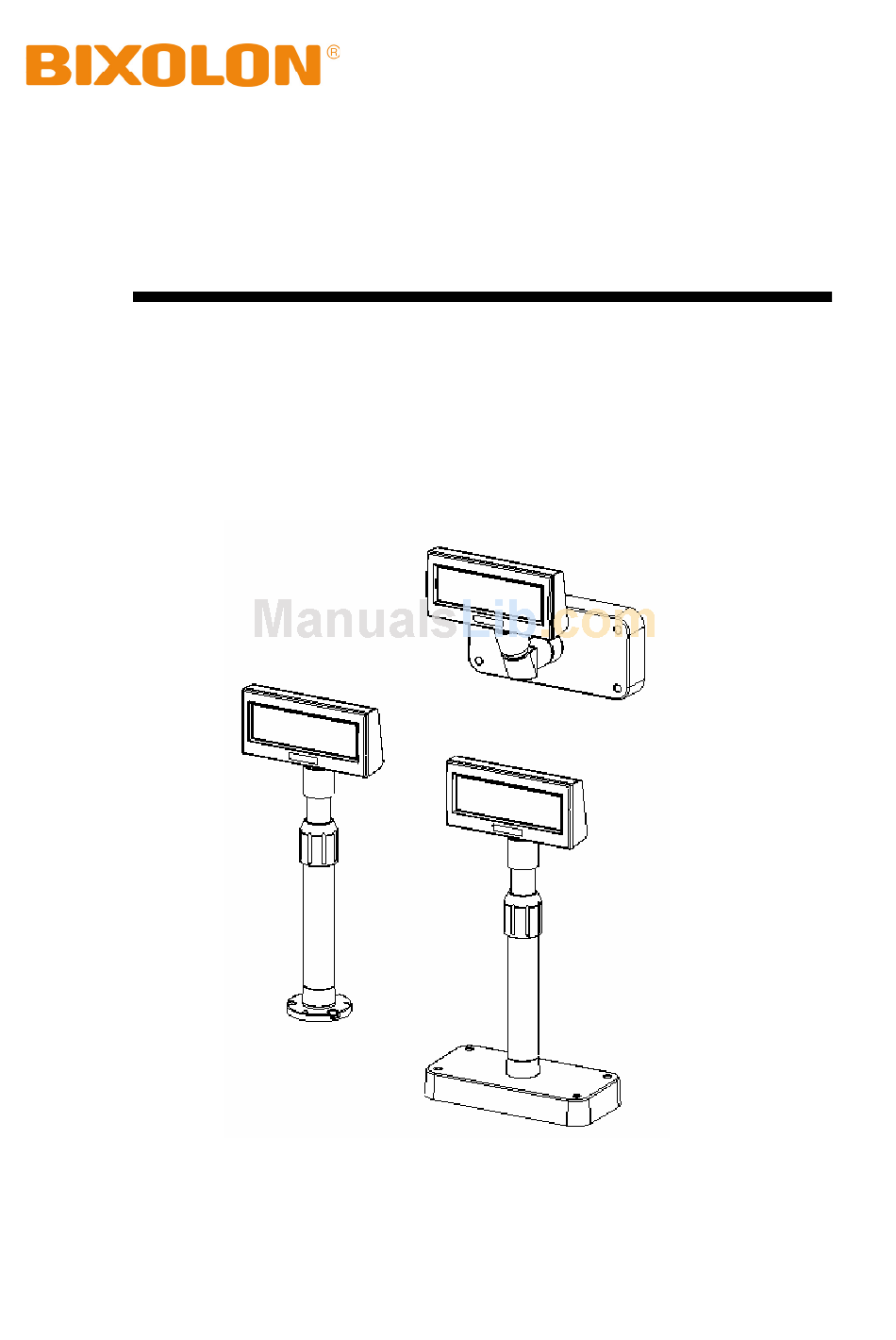

- Page 1 User’s Manual BCD-1100 Series Customer Display Rev. 1.00 http://www.bixolon.com...
-
Page 2: Safety Precautions
• Call your dealer when you need these services. DISASSEMBLING PROHIBITED Keep the plastic bag out of children’s reach. • If not, a child may put the bag on his head. - 2 - BCD-1100 Display... -
Page 3: Table Of Contents
6-1 Display Switch ... 11 6-2 DIP switches ... 11 6-3 Memory Switches ... 12 7. USB Virtual COM Installation... 13 8. Appendix ... 17 8-1 Specifications ... 17 8-2 Certification... 17 8-3 Label Types ... 18 Rev. 1.00 - 3 - BCD-1100... -
Page 4: Complete Product Configuration
- Wall Mount Types (BCD-1100W/WN) BCD-1100DN BCD-1100WN ※ NOTES For the table installation, please fix a product tightly using screw. Rev. 1.00 BCD-1100D BCD-1100W ※ NOTES For the wall-mounting installation, please fix a product tightly using screw. - 4 - BCD-1100... -
Page 5: Unpacking
BCD-1100 2. Unpacking 2-1 BCD-1100DN Type Display Set Manual Install CD Screw (M3*10) Tapping 2-2 BCD-1100D Type Display Set Manual Install CD - 5 - Rev. 1.00... -
Page 6: Bcd-1100W Type
2-3 BCD-1100W Type Display Set 2-4 BCD-1100WN Type Display Set Rev. 1.00 Manual Install CD Manual Install CD - 6 - BCD-1100 Screw (M3*10) Tapping Screw (M3*10) Tapping... -
Page 7: Connection Type
PC via the USB port. STEP3. Install the USB Virtual COM driver. (Refer to 7. USB Virtual COM Driver Installation) STEP4. After driver installation is complete, data can be received. Rev. 1.00 - 7 - BCD-1100... -
Page 8: Size
BCD-1100 4. Size 4-1 Desk Top Type 4-2 Wall Mount Type 4-3 Etc. - 8 - Rev. 1.00... -
Page 9: Function
Rotation of the DISPLAY UNIT when it is not fully lowered will produce a clicking sound. This sound does not indicate any product breakage and is a result of the friction between the POLE-MAIN RIB and the rotation section within the POLE-ADJUST. Rev. 1.00 - 9 - BCD-1100... -
Page 10: Angling
BCD-1100 5-2 Angling This product allows display tilting to any angle desired by the user. Please adhere to the following instructions during installation to prevent possible product damage and/or malfunction. TILT ANGLE : The display can be angled left and right from the Center Line in 13° angle intervals for a total of 4 steps, 5 positions. -
Page 11: Switches
4,800 bps 0 1 1 2,400 bps 0 1 0 1,200 bps (“0” : S/W OFF, “1” : S/W ON) - 11 - BCD-1100 Switch ON EEP-ROM Data Leading Operator Side Executes 5 6 7 8 Emulation 1 0 0 0 NCR Real POS... -
Page 12: Memory Switches
Msw 14 Cursor display Rev. 1.00 Default Content to be set Page 0 is selected U.S.A is selected 100% Display is selected Selected Selected - 12 - BCD-1100 Range to be set 0-5, 16-19, 254, 255 0-13 0, 1, 48, 49... -
Page 13: Usb Virtual Com Installation
BCD-1100 7. USB Virtual COM Installation PC requires software installation when it detects new hardware connected to USB Port. First, connect BDC-1100DU/WU (USB) to PC USB Port and install software and set the conditions as below. 1) Connect BDC-1100DU/WU (USB) to PC USB Port. Message will pop up Found New Hardware. - Page 14 BCD-1100 4) Message pops up again at right bottom of PC Found New Hardware (USB Serial Port) when it completes. 5) Repeat step 1) thru 3) again at Found New Hardware Wizard. It installs twice. 6) Open Device Manager (Start > Control Panel > System > Hardware > Device Manager) - 14 - Rev.
- Page 15 8) Set Serial communication conditions and select Advanced. Preset Serial conditions are 9600 bps, 8 data bit, none parity, hardware flow control. They must be the same with Master setting and application program Serial setting. Rev. 1.00 - 15 - BCD-1100...
- Page 16 9) Check in the boxes of Serial Enumerator and Serial printer. Then select OK. Now Virtual COM driver has been installed Successfully. (Windows 98 does not have the boxes of Serial enumerator and Serial printer) Rev. 1.00 - 16 - BCD-1100...
-
Page 17: Appendix
• North America: FCC Part 15 Subpart B • Safety Standards: CB-scheme: IEC60950-1: 2001 WARNING Use of an unprotected interface cable with this device conflicts with EMC standards. Users should only use cables approved by BIXOLON. 2) CE Mark • EMC Directive 89/336/EEC • Radio Spectrum •... -
Page 18: Label Types
This product should not be mixed with other commercial wastes for disposal. 8-3 Label Types The label types used with this printer is as follows. • BIXOLON Logo Labels: PET • Rating Labels: PP • Other Labels: PET Rev. 1.00...
