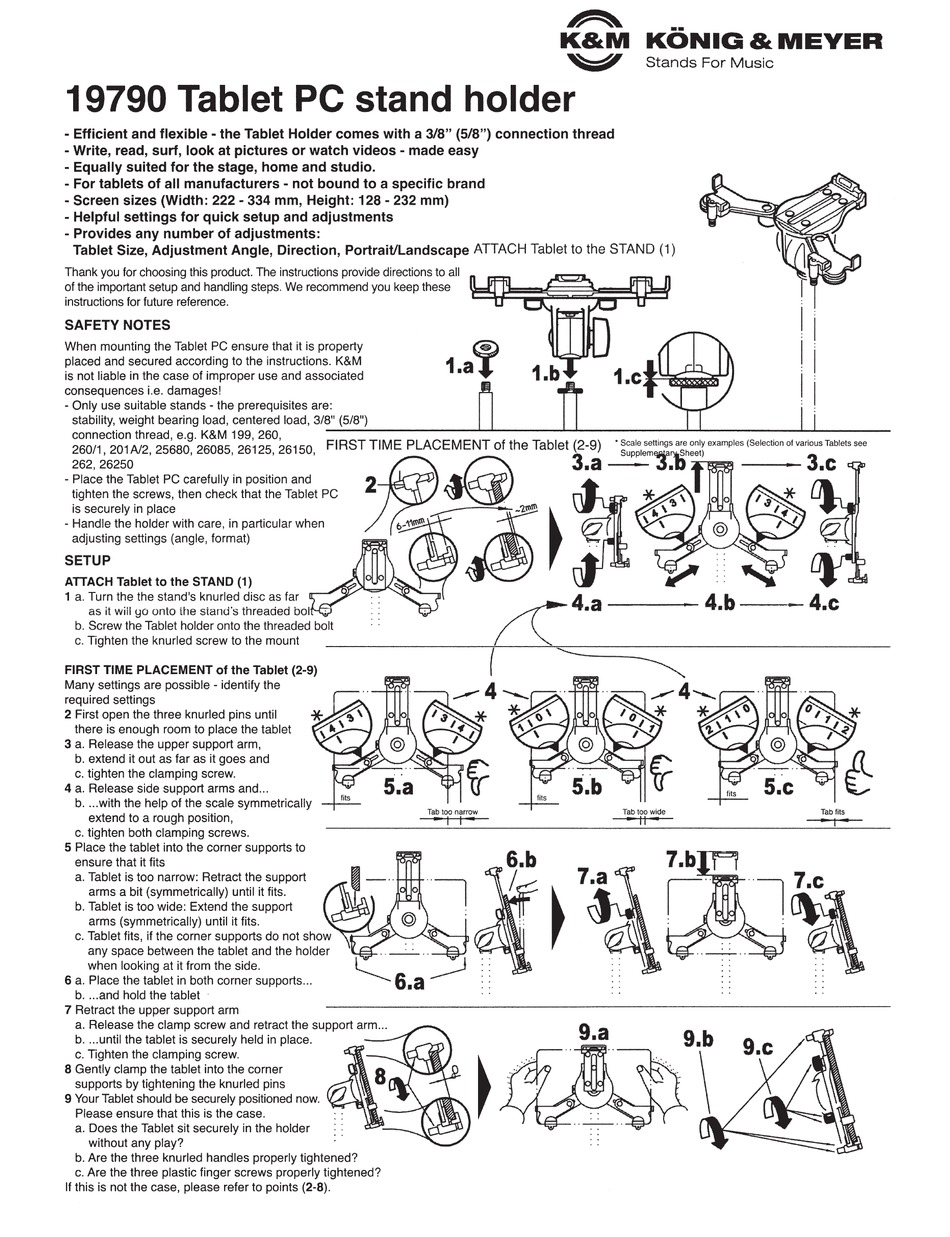

Konig & Meyer 19790 Quick Start Manual

~
K&M KONIG & MEYER
~
Stands For Music

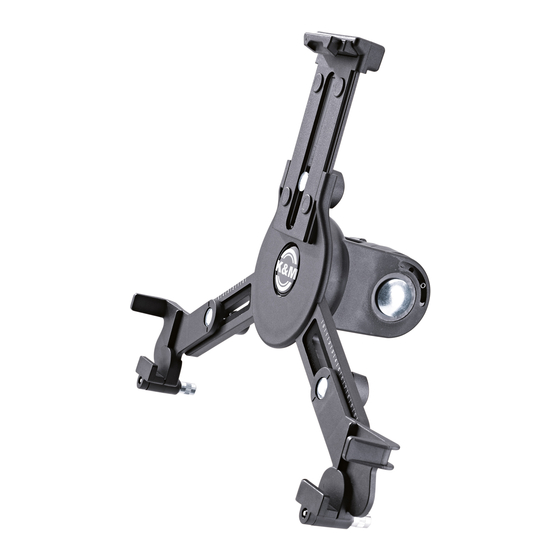

19790 Tablet PC stand holder
- Efficient and flexible- the Tablet Holder comes with a 3/8" (5/8") connection thread
- Write, read, surf, look at pictures or watch videos - made easy
- Equally suited for the stage, home and studio.
- For tablets of all manufacturers - not bound to a specific brand
-Screen sizes (Width: 222-334 mm, Height: 128-232 mm)
- Helpful settings for quick setup and adjustments
- Provides any number of adjustments:
Tablet Size, Adjustment Angle, Direction, Portrait/Landscape
ATIACH Tablet to the STAND (1)
Thank you for choosing this product. The instructions provide directions to all
of the important setup and handling steps. We recommend you keep these
instructions for future reference.
SAFETY NOTES
When mounting the Tablet PC ensure that it is property
placed and secured according to the instructions. K&M
is not liable in the case of improper use and associated
consequences i.e. damages!
-Only use suitable stands- the prerequisites are:
I
I
=
I I ,
. I
I
I
stability, weight bearing load, centered load, 3/8" (5/8")
connectionfuffiad , a~K&M19~260, ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
260/ 1 , 20 1 A/2, 2 5 6 80 , 26085 , 26125 , 26150 ,
FIRST TIME PLACEMENT
of the Tablet
J(2-9) ·
~~;~~O:~~h~~:r
examples (Selection of varJ1ous Tablets see
262, 2625o
~ .a -
,.,.u
.c
- Place the Tablet PC carefully in position and
2
tighten the screws, then check that the Tablet PC
* \
is securely 1n place
~-'2J""'
., \'!I
adjusting settings (angle, format)
SETUP
ATTACH Tablet to the STAND (1)
1 a. Turn the the stand's knurled disc as far
as it will go onto the siand's threaded bol
b. Screw the Tablet holder onto the threaded bolt
c. Tighten the knurled screw to the mount
FIRST TIME PLACEMENT of the Tablet (2-9)
Many settings are possible - identify the
required settings
2
First open the three knurled pins until
there is enough room to place the tablet
3
a. Release the upper support arm,
b. extend it out as far as it goes and
c. tighten the clamping screw.
4 a. Release side support arms and ...
b .... with the help of the scale symmetrically
extend to a rough position,
c. tighten both clamping screws.
5
Place the tablet into the corner supports to
!
ensure that it fits
a. Tablet is too narrow: Retract the support
m -··
b. Tablet is too wide: Extend the support
arms (symmetrically) until it fits.
Tab too narrow
arms a bit (symmetrically) until it fits.
~
c. Tablet fits, if the corner supports do not show
' < V"...__.---....,.,
any space between the tablet and the holder .. _ _ ..
when looking at it from the side.
l
w
__:J
6 a. Place the tablet in both corner supports... .......____
6.a
b . ... and hold the tablet ·
7 Retract the upper support arm
a. Release the clamp screw and retract the support arm ...
b .... until the tablet is securely held in place.
c. Tighten the clamping screw.
~
8 Gently clamp the tablet into the corner
8
supports by tightening the knurled pins
9 Your Tablet should be securely positioned now.
Please ensure that this is the case. : :
a. Does the Tablet sit securely in the holder : :
without any play? · ·
b. Are the three knurled handles properly tightened?
c. Are the three plastic finger screws properly tightened?
If
this is not the case, please refer to points (2-8) .
---4.c
(
~
Tab nts
9.a
