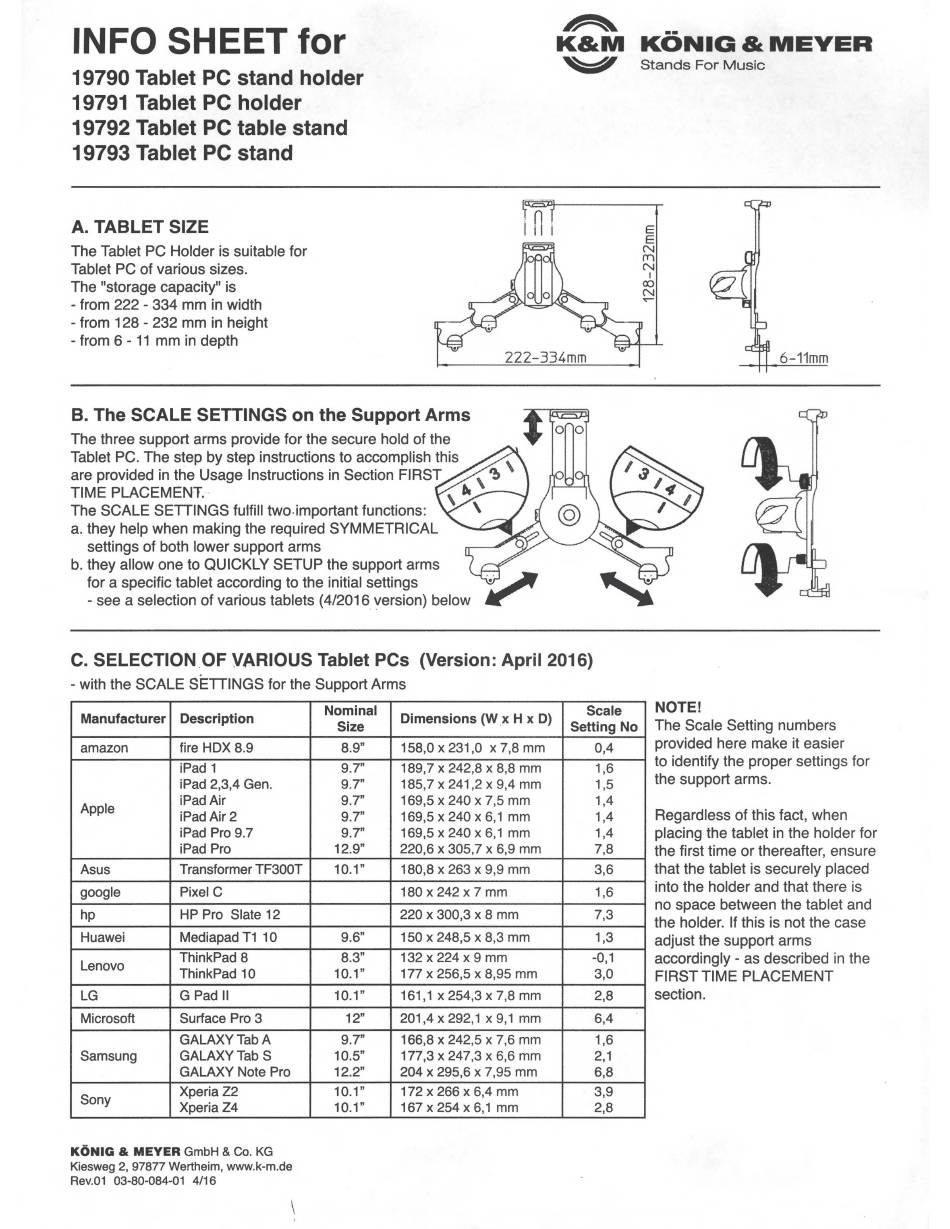

Konig & Meyer 19790 Info Sheet

INFO SHEET for

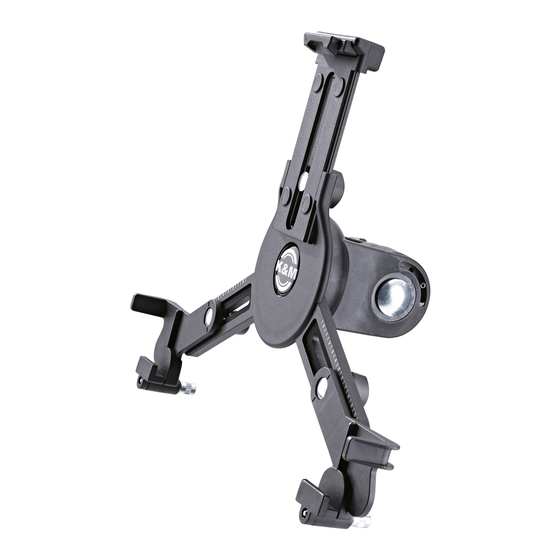

19790 Tablet PC stand holder
19791 Tablet PC holder
19792 Tablet PC table stand
19793 Tablet PC stand
A. TABLET SIZE
The Tablet PC Holder is suitable for
Tablet PC of various sizes.
The "storage capacity" is
- from 222 - 334 mm in width
- from 128 - 232 mm in height
- from 6 - 11 mm in depth
~
K&M
~
222-334mm
B. The SCALE SETTINGS on the Support Arms
The three support arms provide for the secure hold of the
Tablet PC. The step by step instructions to accomplish this \
are provided in the Usage Instructions in Section FIRST \
'?,
TIME PLACEMENT. \
bs ---.,
The SCALE SETTINGS fulfill two .important functions: \
a. they help when making the required SYMMETRICAL
settings of both lower support arms
b. they allow one to QUICKLY SETUP the support arms
for a specific tablet according to the initial settings
- see a selection of various tablets (4/2016 version) below
C. SELECTION OF VARIOUS Tablet PCs (Version: April 2016)
- with the SCALE SETTINGS for the Support Arms
Manufacturer Description
amazon fire HDX 8.9
iPad 1
iPad 2,3,4 Gen.
Apple
iPadAir
iPadAir 2
iPad Pro 9.7
iPad Pro
Asus Transformer TF300T
google
PixelC
hp HP Pro Slate 12
Huawei Mediapad T1 10
Lenovo
ThinkPad 8
ThinkPad 10
LG G Pad II
Microsoft Surface Pro 3
GALAXY Tab A
Samsung GALAXYTabS
GALAXY Note Pro
Sony
Xperia Z2
Xperia Z4
KONIG
& MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
Rev.01 03-80-084-01 4/16
Nominal
Dimensions (W x H x D)
Scale
Size Setting No
8.9" 158,0 x 231,0 x 7,8 mm 0,4
9.7" 189,7 x 242,8 x 8,8 mm 1,6
9.7" 185,7 x 241,2 x 9,4 mm 1,5
9.7" 169,5 x 240 x 7,5 mm 1,4
9.7" 169,5 x 240 x 6,1 mm 1,4
9.7" 169,5 x 240 x 6,1 mm 1,4
12.9"
220,6 x 305,7 x 6,9 mm
7,8
10.1" 180,8 x 263 x 9,9 mm 3,6
180 x 242 x 7 mm 1,6
220 x 300,3 x 8 mm 7,3
9.6" 150 x 248,5 x 8,3 mm 1,3
8.3" 132 x 224 x 9 mm -0, 1
10.1" 177 x 256,5 x 8,95 mm 3,0
10.1" 161,1 x 254,3 x 7,8 mm 2,8
12" 201,4 x 292,1 x 9,1 mm 6,4
9.7" 166,8 x 242,5 x 7,6 mm 1,6
10.5" 177,3 x 247,3 x 6,6 mm 2,1
12.2" 204 x 295,6 x 7,95 mm 6,8
10.1" 172 x 266 x 6,4 mm 3,9
10.1" 167 x 254 x 6,1 mm 2,8
KONIG & MEYER
Stands For Music
E
E
N
fT)
N
I
OC>
N .....
6-11mm
NOTE!
The Scale Setting numbers
provided here make it easier
to identify the proper settings for
the support arms.
Regardless of this fact, when
placing the tablet in the holder for
the first time or thereafter, ensure
that the tablet is securely placed
into the holder and that there is
no space between the tablet and
the holder. If this is not the case
adjust the support arms
accordingly - as described in the
FIRST TIME PLACEMENT
section.
