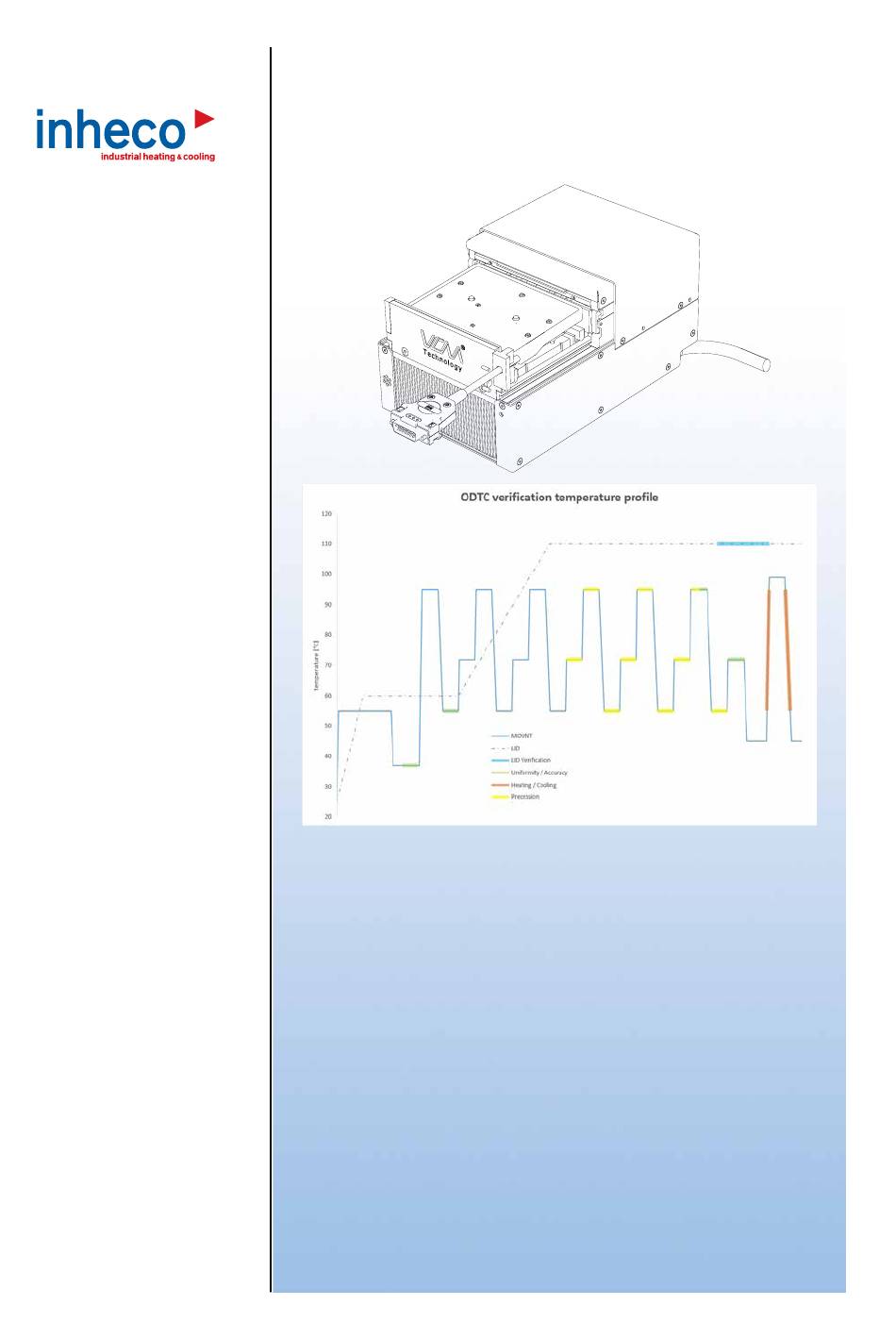

- Page 1 Insert gap closure in ODTC (at position of removable Block) Insert gap closure in ODTC (at position of removable Block) ODTC Verification Tool ® (OVT) Set Part No.: 790200X ► User´s Manual Doc ID: 900905-000 October 2018...
- Page 2 This manual and the information herein have been assembled with due diligence. INHECO GmbH does not assume liability for any misprints or cases of damage resulting from misprints in this manual. If there are any uncertainties, please feel free to contact sales@inheco.com.
-
Page 3: Table Of Contents
General Information ..................04 Explanation of Symbols ................05 Abbreviations and Glossary ................ 05 Warranty ...................... 06 How to contact INHECO ................06 Product Description .................. 07 Intended Use ....................07 Components - scope of supply ..............07 Functional Elements ..................08 Labels ...................... -
Page 4: Important Notes
- The signal word NOTICE stands for the general measures that help using the device. Contact INHECO in case there are any uncertainties of how to operate or how to handle the OVT device. -
Page 5: Explanation Of Symbols
Vapor Chamber Mount (three dimensional heat pipe) ® Gbit/s Gigabit per second Slope Heating and Cooling Rate of ODTC ® Verification Proof that the ODTC is working within its specifications → Technical Data of ® ODTC Manual ® INHECO Doc ID: 900905-000 October 2018... -
Page 6: Warranty
OVT outside the specifications and guidelines leads to the loss of warranty. INHECO will only accept parts / devices for return that do not pose a threat to the health of our staff. In particular, the devices may not have been used in Biosafety Level 3 and 4 environments, or have been exposed to radioactive or radiation materials. -
Page 7: Product Description

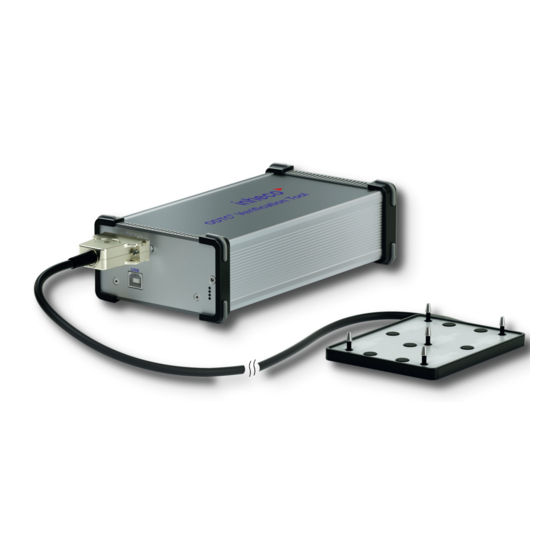

In case of parcel or product damages, take photos of the damaged boxes and products and email them to techhotline@inheco.com without delay. Transportation damages must be reported to INHECO within 7 days of delivery. The following components should be included in each shipment: Fig.1:... -
Page 8: Functional Elements
Never unplug the connector of the Measurement Head from the OVT Data Logger. It is secured with a calibration void label. INHECO will not take any liability for quality of the measurement performed with the OVT if the Measurement Head was disconnected before. - Page 9 The Gap Closure has to be manually positioned to the front of the ODTC (same ® position as right removable block) to guide the cable out of the ODTC and close the ® gap. Fig.5: Gap Closure INHECO Doc ID: 900905-000 October 2018...
- Page 10 Never unplug the connector of the Measurement Head from the OVT Data Logger. It is secured with a calibration void label. INHECO will not take any liability for quality of the measurement performed with the OVT if the Measurement Head was disconnected before.
-
Page 11: Labels
The label is placed on the bottom of the OVT Data Logger. The identification label must not be removed. If it has become illegible or falls off, it has to be replaced by a new identification label. New label can be ordered from INHECO. INHECO GmbH... -
Page 12: Technical Data
+18°C to + 28°C [+64.4°F and +82.4°F] altitude 0-2,000m Transportation and -10°C to +60°C [+14°F and +140°F] storage altitude 0-11,000m Condensate can prevent the OVT from operating properly and can damage the OVT ® ® INHECO Doc ID: 900905-000 October 2018... -
Page 13: Safety Instructions
- Disconnect Data Logger from the power outlet before opening the OVT Data Logger housing . - Original cable provided by INHECO has to be used to guarantee safe and proper operation. - The OVT is designed in accordance with Protection Class I (IEC). -
Page 14: Technical Alterations
- Do not alter the product. Any modification or change which is not approved by INHECO leads to the loss of warranty and INHECO´s liability → Warranty, page 6 - Use only original parts provided by INHECO. Parts provided by other suppliers can impair the functionality of the unit. -
Page 15: Communication With The Ovt
COMMUNICATION WITH THE OVT NOTICE The OVT Data Logger should only be operated with the INHECO OVT Software. 4.1. Installation OVT control software The OVT control software is delivered on a USB flash drive together with the device. Install the software following the installation routine after double click of the application OVT 1.x.x Setup.exe on the USB Flash drive. -
Page 16: Network Configuration
Energy saving settings of connected PC For proper functionality of OVT Control Software the energy saving settings and lock screen settings of the connected PC need to be set to at least 30 min. INHECO Doc ID: 900905-000 October 2018... -
Page 17: Hardware Installation / Operation
The OVT Control software scans automatically all physical and all virtual LAN ports. In case the OVT finds several physical LAN ports a window will open to select the port the ODTC is connected to: ® Fig.17: Select LAN port • Select the correct LAN Port INHECO Doc ID: 900905-000 October 2018... - Page 18 Never unplug the connector of the Measurement Head from the OVT Data Logger. It is secured with a calibration void label. INHECO will not take any liability for quality of the measurement performed with the OVT if the Measurement Head was disconnected before.
- Page 19 OVT control ® software and ODTC (power off and on). If this does not help please check whether ® network configuration are set correctly → Network configuration, page 16. INHECO Doc ID: 900905-000 October 2018...
- Page 20 • After the Measurement Head is inserted and the Gap Closure is attached, the insertion needs to be confirmed in the software to start verification. The "Confirm Mea- surement Head and start verification" button will be activated after the connection is established. INHECO Doc ID: 900905-000 October 2018...
- Page 21 During the measurement do NOT disconnect any cable as this will eventually lead to a system crash without specific error message. Fig.27: Status information about verification runtime • During the verification, the following temperature profile will be run on the ODTC ® Fig.28: Temperature profile during verification INHECO Doc ID: 900905-000 October 2018...
- Page 22 • In case you want to view the certificate after saving please check "Try to open the Certificate with attached pdf-Viewer after exit the program" Fig.30: Image of software • Remove Gap Closure • Remove Measurement Head • Reinstall Sealing Cover (if necessary) INHECO Doc ID: 900905-000 October 2018...
- Page 23 Please make sure that you only start the measurement when the ODTC and OVT are ® Operator Date Signature on ambient conditions. Supervisor Date Signature Supervisor Date Signature In case the FAILED result is showing up again please contact techhotline@inheco. 2017-06-26_TemplateVerificationCertificate.docx com. 2017-06-26_TemplateVerificationCertificate.docx INHECO Doc ID: 900905-000 October 2018...
-
Page 24: Maintenance
Opening of the unit and/or the exchange of parts will lead to the loss of warranty. INHECO will only accept parts / devices for return that do not pose a threat to the health of our staff. In particular, the devices may not have been used in Biosafety Level 3 and 4 environments, or have been exposed to radioactive or radiation materials. -
Page 25: Decontamination
Sensor position (top view) NOTE Never unplug the connector of the Measurement Head from the OVT Data Logger. It is secured with a calibration void label. INHECO will not take any liability for quality of the Lid 1 Lid 2 measurement performed with the OVT if the Measurement Head was disconnected before. -
Page 26: Troubleshooting
• Test TCP/IP Network link for automatic IP configured hosts: - Open an MS-DOS/Command window (Command Prompt) and type: C:\> ping <ODTC NetBIOS Name> - The <ODTC NetBIOS Name> is a unique identifier printed on the INHECO ODTC Power and Control Unit (PCU) label called ‘Node name’. -
Page 27: Accessories
Notebook only for the OVT with 1004504 (optional) preinstalled OVT software with european power supply Notebook US dedicated Notebook only for the OVT with 1004505 (optional) preinstalled OVT software with european power supply INHECO Doc ID: 900905-000 October 2018... -
Page 28: Appendix
AppENDIx 9.1. CE Declaration INHECO Doc ID: 900905-000 October 2018... -
Page 29: Certificate Of Temperature Verification
The design of the OVT is optimized for the use with the latest version of ODTC beginning with the serial number: ODTC 96: 2000 ODTC 384: 2000. For ODTCs with lower serial number the acceptance criteria are adjusted to the limits valid at that time. Operator Date Signature Supervisor Date Signature 2017-06-26_TemplateVerificationCertificate.docx INHECO Doc ID: 900905-000 October 2018... - Page 30 ODTC uniformity heated lid [K] average uniformity of L1 to L2 (max. temperature – min. temperature) Set point [°C] Max limit Measured value Result (ODTC 96 / 384) 110 / 115 0,19 PASSED 2017-06-26_TemplateVerificationCertificate.docx INHECO Doc ID: 900905-000 October 2018...
-
Page 31: Certificate Of Calibration
Never unplug the connector of the Measurement Head from the OVT Data Logger. It is secured with a calibration void label. INHECO will not take any liability for quality of the measurement performed with the OVT if the Measurement Head was disconnected. - Page 32 Fig.36: Red area shows the value which is used for adjustment decision If the deviation is > ±0.150K the customer will be informed by INHECO. The "mean value" and "maximum - minimum" values in the certificate are only for information.
- Page 33 Fig.38: OVT Channel corresponding sensing elements for ODTC Mount (VCM) ® Channel 7 is Sensing Element Lid 1 Channel 8 is Sensing Element Lid 2 Fig.39: OVT Channel corresponding sensing elements for ODTC ® INHECO Doc ID: 900905-000 October 2018...
