1) WARNING:
• USE COVER BOLTS CLASS A4-70
• DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
• POTENTIAL ELECTROSTATIC HAZARD
• FOR INDOOR OR OUTDOOR USE
• TO REDUCE THE RISK OF IGNITION OF
HAZARDOUS ATMOSPHERES, CONDUIT
RUNS MUST HAVE A SEALING FITTING
CONNECTED WITHIN 18 INCHES OF
CONDUIT
•
CAUTION - RISK OF ELECTRIC SHOCK -
MORE THAN ONE DISCONNECT MAY BE
REQUIREDTO DE-ENERGIZE THE
EQUIPMENT BEFORE SERVICING
AVERTISSEMENT:
•
UTILISER COUVRIR BOULONS CLASSE A4-
70
•
NE PAS OUVRIR UN PRESENCE
D'ATMOSPHERE EXPLOSIVE
•
DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - VOIR LES
INSTRUCTIONS
•
POUR USAGE INTÉRIEUR OU EXTERIEUR
•
POUR RÉDUIRE LE RISQUE
D'INFLAMMATION DES ATMOSPHÈRES
DANGEREUSES, LES CONDUITES DE
CONDUIT DOIVENT AVOIR UN RACCORD
D'ÉTANCHÉITÉ RACCORDÉ À MOINS DE 18
POUCES DE L'ENFERMEMENT
•
ATTENTION - RISQUE DE CHOC
ELECTRIQUE - PLUSIEURS SECTIONNEURS
PEUVENT ETRE NECESSAIRES POUR
COUPER L'ALIMENTATION DE
L'APPAREILLAGE AVANT
D'ENTREPRENDRE L'ENTRETIEN
2) Rating & Marking Information
2.1 NEC & CEC Class / Division Ratings for US / Canada
The GNExCP7 callpoints comply with the following
standards:
UL 60947-4-1 Low voltage switchgear and controlgear – Part 4-1:
Contactors and motorstarters – Electromechanical contactors and
motorstarters – Ed. 3 Rev. date 2017/10/
CSA C22.2 NO. 60947-4-1-14 Low voltage switchgear and
controlgear – Part 4-1: Contactors and motorstarters –
Electromechanical contactors and motorstarters – Ed. 2 - Issue Date
2014/01/04
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D202-00-211-IS

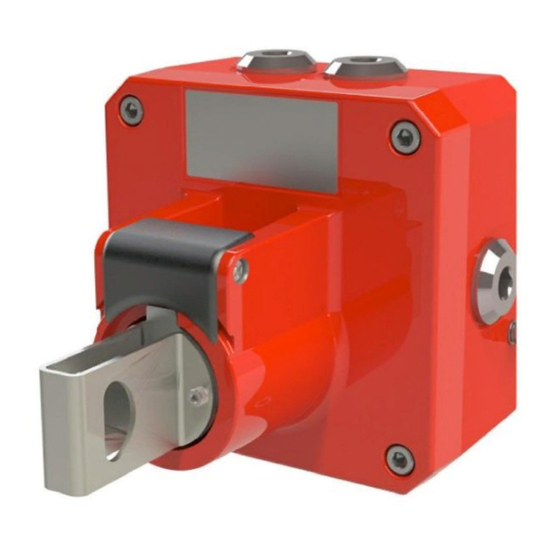

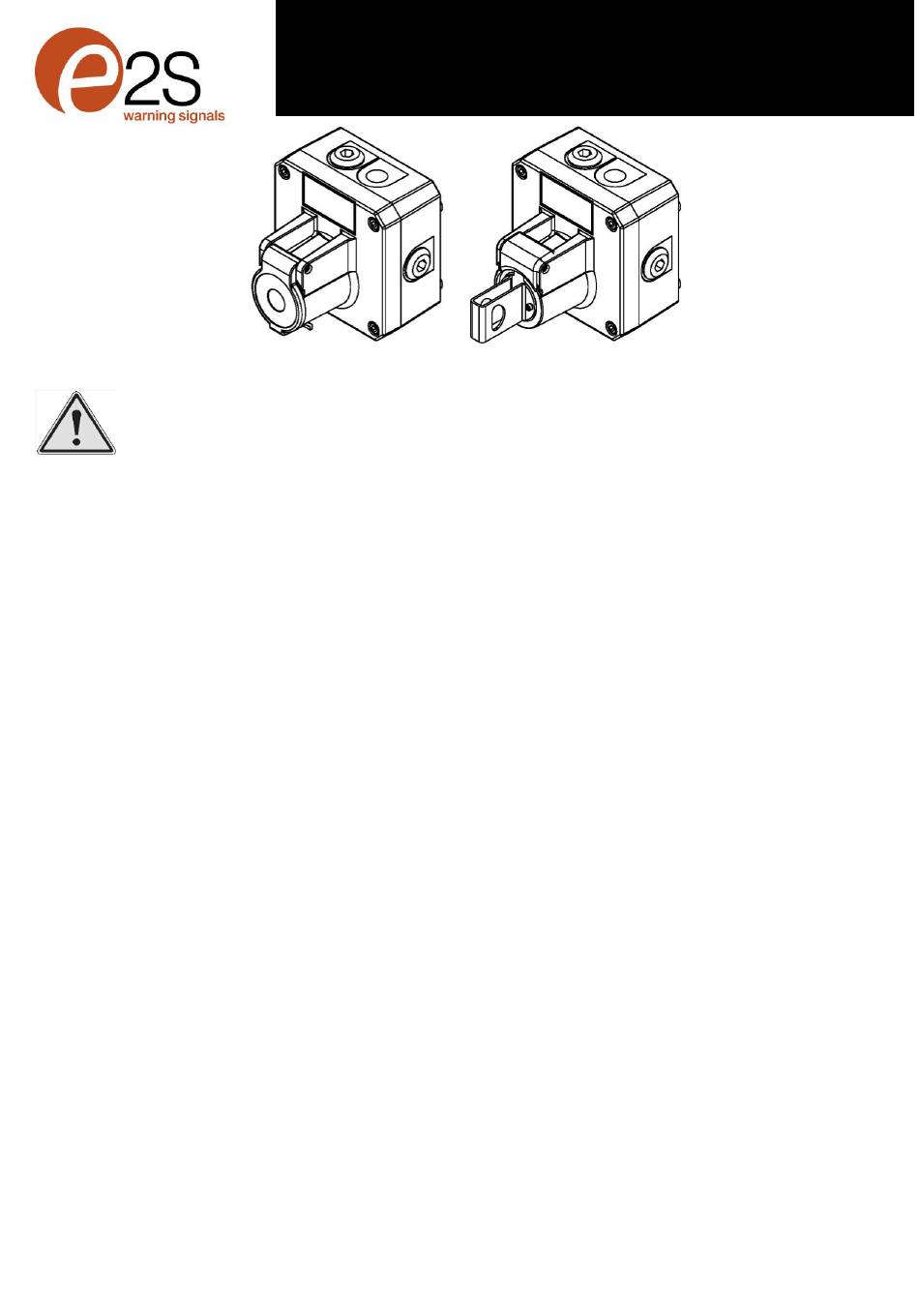

GNExCP7-PB-S, GNExCP7-PB-D, GNExCP7-PM-S, GNExCP7-PM-D,
GNExCP7-PT-S & GNExCP7-PT-D CALL POINTS
Issue 3
24-03-2020
INSTRUCTION MANUAL
For use in Flammable Gas Atmospheres
The GNExCP7 callpoints are rated as follows:
Class I Div 2 Group ABCD T6 Ta -55°C to +60°C
Class II Div 2 Group FG T4 Ta -55°C to +60°C
Class III Div 1 & 2 Ta -55°C to +60°C
2.2 NEC Class / Zone ratings US
The GNExCP7 callpoints comply with the following
standards:
UL 60079-0:2017 (Ed 6): Explosive Atmospheres - Part 0: Equipment
- General requirements
UL 60079-1:2015 (Ed7): Explosive Atmospheres - Part 1: Equipment
protection by flameproof enclosures "d"
UL 60079-31:2012 (Ed 2): Explosive Atmospheres - Part 31:
Equipment dust ignition protection by enclosure "t"
The GNExCP7 callpoints are rated as follows:
Class I Zone 1 AEx db IIC T6 Gb (Ta -55°C to +60°C)
Zone 21 AEx tb IIIC T125°C Db (Ta -55°C to +60°C)
2.3 CEC Class / Zone ratings Canada
The GNExCP7 callpoints comply with the following
standards:
CSA C22.2 NO. 60079-0:2015 (Ed 3) Explosive Atmospheres – Part
0: Equipment – General requirements
CSA C22.2 NO. 60079-1:2016 (Ed 3): Explosive Atmospheres – Part
1: Equipment protection by flameproof enclosures "d"
CSA C22.2 NO. 60079-31:2015 (Ed 2): Explosive Atmospheres –
Part 31: Equipment dust ignition protection by enclosure "t"
The GNExCP7 callpoints are rated as follows:
Class I Zone 1 Ex db IIC T6 Gb X (Ta -55°C to +60°C)
Zone 21 Ex tb IIIC T125°C Db (Ta -55°C to +60°C)
2.4 ATEX / IECEx Certification
The GNExCP7 callpoints comply with the following
standards:
EN60079-0:2018 / IEC60079-0:2017 (Ed 7): Explosive Atmospheres
– Part 0: Equipment. General requirements
EN60079-1:2014 / IEC60079-1:2014 (Ed 7): Explosive Atmospheres
- Part 1: Equipment protection by flameproof enclosures "d"
EN 60079-31:2014 / IEC 60079-31:2013 (Ed 2): Explosive
Atmospheres - Part 31: Equipment dust ignition protection by
enclosure "t"
sales@e-2-s.com
www.e-2-s.com
Sheet 1 of 9
Tel: +44 (0)208 743 8880
Fax: +44 (0)208 740 4200
Advertisement
Table of Contents
Related Manuals for E2S GNExCP7-PB-S
Summary of Contents for E2S GNExCP7-PB-S
- Page 1 INSTRUCTION MANUAL GNExCP7-PB-S, GNExCP7-PB-D, GNExCP7-PM-S, GNExCP7-PM-D, GNExCP7-PT-S & GNExCP7-PT-D CALL POINTS For use in Flammable Gas Atmospheres The GNExCP7 callpoints are rated as follows: 1) WARNING: • USE COVER BOLTS CLASS A4-70 • DO NOT OPEN WHEN AN EXPLOSIVE Class I Div 2 Group ABCD T6 Ta -55°C to +60°C Class II Div 2 Group FG T4 Ta -55°C to +60°C...
-
Page 2: Installation Requirements
All units have a rating label, which carries the following important information: - IP Rating: IP66/67 to EN/IEC60529 and IP6X to EN/IEC60079-0, EN/IEC60079-31 Model No.: GNExCP7-PB-S (Single Switch) GNExCP7-PB-D (Dual Switch) Equipment Category: 2G / 2D GNExCP7-PM-S (Single Switch) Equipment Protection Level:... -
Page 3: Location And Mounting
5) Location and Mounting Call Point Base Call Point Cover The location of the call point should enable ease of access for operation and testing. The unit should be mounted using the 4 off fixing holes which will accept up to M5 sized fixings. They should only be fixed to services that can carry the weight of the unit. -
Page 4: Power Supply Selection
For high ambient temperatures the cable entry temperature For Single Switch models GNExCP7-PT-S / GNExCP7-PM-S may exceed +70ºC or the cable branching point temperature / GNExCP7-PB-S: may exceed 80ºC and therefore suitable heat resisting cables and cable glands must be used, with a rated service Max. - Page 5 PM – Momentary Push Button Wiring Diagram for 6-Way PCB Terminal Board M/S 1 M/S 2 The -PM needs to have the protective flip lid opened first and then the main plunger pressed in. There will be a click sound to indicate positive engagement, the plunger will spring back up if not held pressed.
-
Page 6: Maintenance, Overhaul & Repair
Ex d according to the unit voltage. If lower value resistors than seen on table are required it may be possible to configure but seek advice from E2S to ensure compliance is still maintained. Series (In line) device;... - Page 7 _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH sales@e-2-s.com Tel: +44 (0)208 743 8880 www.e-2-s.com Fax: +44 (0)208 740 4200 Document No. D204-00-201-IS Issue 2 20-02-2020 Sheet 7 of 9...
- Page 8 _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH sales@e-2-s.com Tel: +44 (0)208 743 8880 www.e-2-s.com Fax: +44 (0)208 740 4200 Document No. D202-00-211-IS Issue 3 24-03-2020 Sheet 8 of 9...
- Page 9 _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH sales@e-2-s.com Tel: +44 (0)208 743 8880 www.e-2-s.com Fax: +44 (0)208 740 4200 Document No. D202-00-211-IS Issue 3 24-03-2020 Sheet 9 of 9...
