INSTRUCTION MANUAL
STExCP8-PB-I, STExCP8-PB-IR, STExCP8-PM-I, STExCP8-PM-IR
STExCP8-PT-I, STExCP8-PT-IR Intrinsically Safe Call Point
Class I Div 1 ; UL60947
NEC / CEC / ATEX / IECEx / UKEx Zone 0, 1, 2

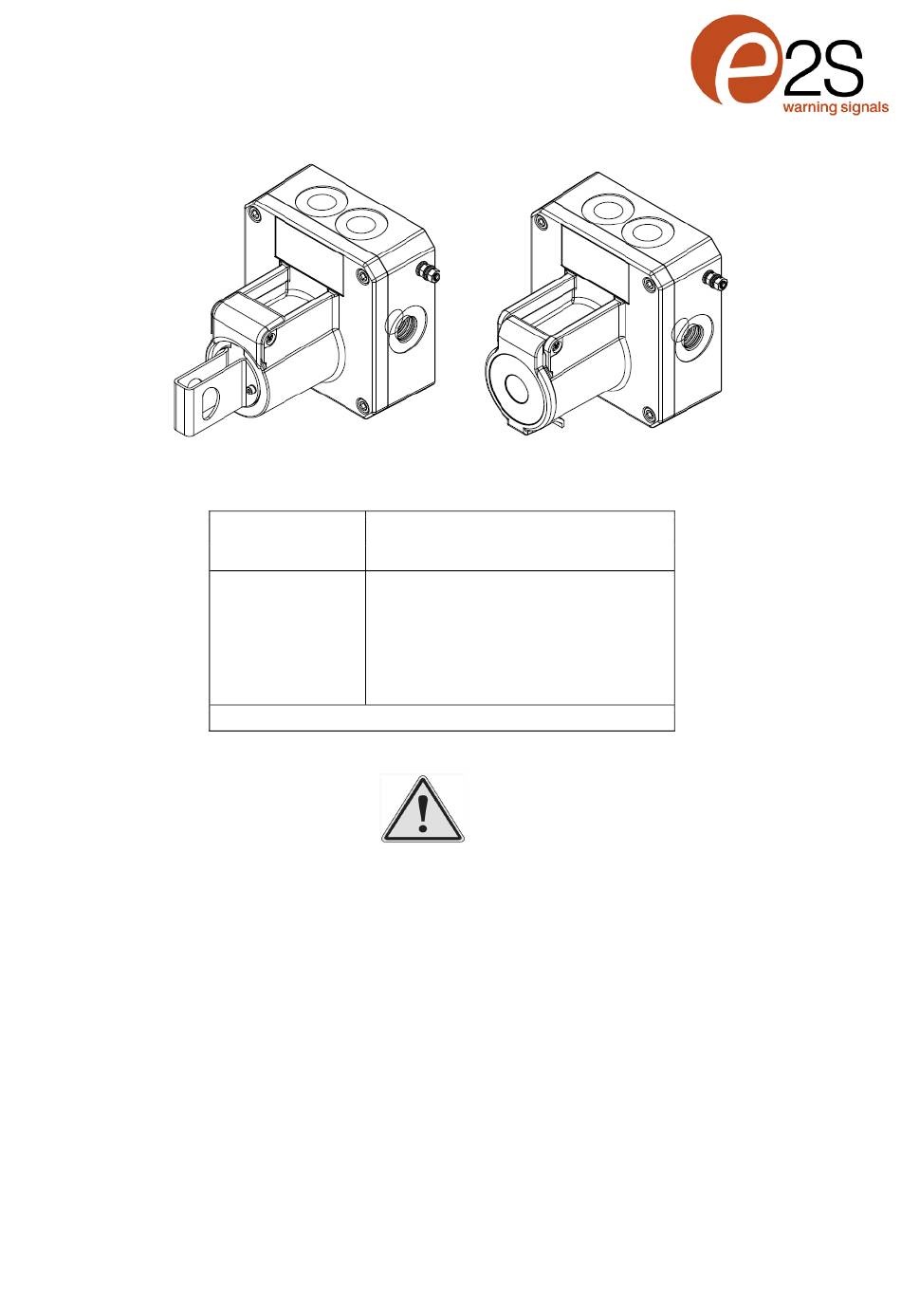

STExCP8-PB
1) Product Table
2) Warnings
WARNINGS:
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
DO NOT OPEN WHEN ENERGISED
ELECTROSTATIC CHARGING HAZARD – CLEAN ONLY WITH A DAMP CLOTH.
AVERTISSEMENT:
NE PAS OUVRIR UN PRESENCE D'ATMOSPHERE EXPLOSIVE
NE PAS OUVRIR ENERGIE
DANGER POTENTIEL CHARGE ÉLECTROSTATIQUE - NETTOYER UNIQUEMENT AVEC UN CHIFFON HUMIDE
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D204-00-601-IS
Unit Type Code
STExCP8-PB-I
Ui
STExCP8-PB-IR
Ii
Pi
STExCP8-PM-I
Ci
STExCP8-PM-IR
Li
STExCP8-PT-I
STExCP8-PT-IR
Table 1: Electrical Ratings
Issue 1
28-01-2024
Input Parameters
=
30V
=
500mA
=
1100mW
=
0
=
0
www.e2s.com
Sheet 1 of 9
STExCP8-PM
STExCP8-PT
Tel: +44 (0)208 743 8880
Advertisement
Related Manuals for E2S STExCP8-PB
Summary of Contents for E2S STExCP8-PB
- Page 1 INSTRUCTION MANUAL STExCP8-PB-I, STExCP8-PB-IR, STExCP8-PM-I, STExCP8-PM-IR STExCP8-PT-I, STExCP8-PT-IR Intrinsically Safe Call Point Class I Div 1 ; UL60947 NEC / CEC / ATEX / IECEx / UKEx Zone 0, 1, 2 STExCP8-PB STExCP8-PM STExCP8-PT 1) Product Table Unit Type Code...
- Page 2 3) Marking & Rating Information Certificate No. DEMKO 15 ATEX 1589X IECEx ULD 15.0018X UKEx UL UL21UKEX2133X The STExCP8-PB, -PM & -PT Call Points comply with the following standards for hazardous locations: Epsilon x II 2G Equipment Group Class/Division Ratings for US & Canada...
-
Page 3: Location And Mounting
To gain access to the mounting holes in the base the front cover must be removed. See Section 7 100ºC (STExCP8-PB-I , PM-I, PT-I) only 85ºC (STExCP8-PB-I , PM-I, PT-I) only Equipment Category Equipment Protection Level... - Page 4 80ºC and therefore suitable heat resisting cables rating to the incoming power conductors. and cable glands must be used, with a rated service temperature of at least the values stated below: For models STExCP8-PB-I, PM-I, PT-I: Max. ambient temperature ºC External Earth M5 Terminal req.
- Page 5 For EOL and Series device limitations and configurations see For model STExCP8- PB-I, PM-I, PT-I: Section 15. Fitting can be requested by E2S at the order stage or added to the correct terminal blocks afterward. All Max.
- Page 6 Rotate the tool anti clockwise and remove through the 2-off holes in the button plate. _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D204-00-601-IS Issue 1 28-01-2024...
- Page 7 Failure to open a contact when the call point is struck with specified force _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D204-00-601-IS Issue 1 28-01-2024...
- Page 8 _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D204-00-601-IS Issue 1 28-01-2024...
- Page 9 Ccable = 60 pF/ft., Lcable = 0.2 μH/ft. _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D204-00-601-IS Issue 1...
- Page 10 WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON DRAWING NUMBER GNExCP7-I and STExCP8-I units EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET ALTERNATIVE MATERIAL LONDON W3 7QH APPROVED DATE AS PER LATEST DATE OF ISSUE SHOWN ABOVE with DIN Rail D202-06-501 02-02-2024 R.N.POTTS WWW.E2S.COM...
- Page 11 B.ISARD WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7-IR and DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE STEXCP8-IR units AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-502 with PCB 02-02-2024 WWW.E2S.COM R.N.POTTS...
- Page 12 B.ISARD WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7-IR and DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE STEXCP8-IR units AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-502 with PCB 02-02-2024 WWW.E2S.COM R.N.POTTS...
- Page 13 B.ISARD WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7-IR and DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE STEXCP8-IR units AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-502 with PCB 02-02-2024 WWW.E2S.COM R.N.POTTS...
- Page 14 B.ISARD WRITTEN CONSENT. STANDARDS MANSELL ROAD ACTON GNExCP7-IR and DRAWING NUMBER ALTERNATIVE MATERIAL EUROPEAN SAFETY SYSTEMS LTD. SCALE SHEET LONDON W3 7QH APPROVED DATE STEXCP8-IR units AS PER LATEST DATE OF ISSUE SHOWN ABOVE D202-06-502 with PCB 02-02-2024 WWW.E2S.COM R.N.POTTS...
-
Page 15: Eu Declaration Of Conformity
This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-116_Issue_A Quality Assurance Manager Date and Place of Issue: London, 29/02/2024 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-116_Issue_A - Page 1 of - QAF_252_Issue_5... - Page 16 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-118_Issue_A Quality Assurance Manager Date and Place of Issue: London, 29/02/2024 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-118_Issue_A - Page 1 of 1 - QAF_252_Issue_5...
