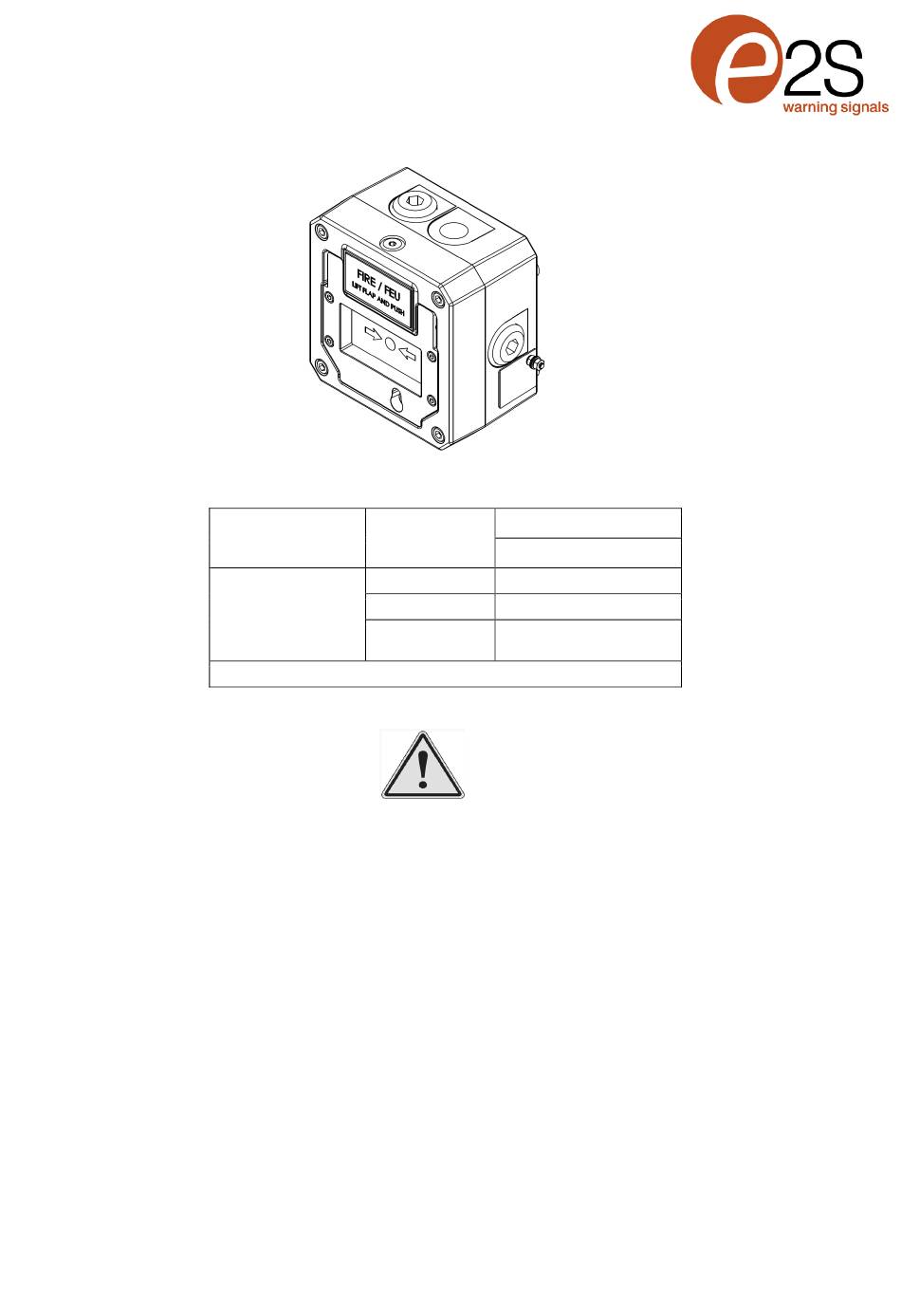

INSTRUCTION MANUAL
GNExCP7-BG-S, GNExCP7-BG-D
Call Point
Class I & II Div 2 ; UL38
NEC / CEC / ATEX / IECEx / UKEx Zone 1, 2, 21, 22
1) Product Table
2) Warnings
WARNINGS:
USE COVER BOLTS CLASS A4-70
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
POTENTIAL ELECTROSTATIC CHARGING HAZARD – SEE INSTRUCTIONS
FOR INDOOR OR OUTDOOR USE
TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, CONDUIT RUNS
MUST HAVE A SEALING FITTING CONNECTED WITHIN 2 INCHES OF ENCLOSURE
AVERTISSEMENT:
UTILISER COUVRIR BOULONS CLASSE A4-70
NE PAS OUVRIR UN PRESENCE D'ATMOSPHERE EXPLOSIVE
DANGER POTENTIEL CHARGE ÉLECTROSTATIQUE - VOIR LES INSTRUCTIONS
POUR USAGE INTÉRIEUR OU EXTÉRIEUR
POUR RÉDUIRE LE RISQUE D'INFLAMMATION DES ATMOSPHÈRES DANGEREUSES, LES CONDUITES DE CONDUIT
DOIVENT AVOIR UN RACCORD D'ÉTANCHÉITÉ RACCORDÉ À MOINS DE 2 POUCES DE ENCLOS
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D202-00-001-IS
Unit Type Code
GNExCP7-BG-S
GNExCP7-BG-D
Table 1: Electrical Ratings
Issue 1
25-04-2022
Input Current
Input Voltage
250Vac Max
48Vdc Max
3.33A Max Class Div/Zone
24Vdc Max
5.0 Max ATEX/IECEx/UKEx
Sheet 1 of 7
GNExCP7-BG
5.0A Max
1.0A Max
sales@e-2-s.com
www.e-2-s.com
Tel: +44 (0)208 743 8880
Fax: +44 (0)208 740 4200

Advertisement

loading
Need help?

Need help?

Do you have a question about the GNExCP7-BG-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for E2S GNExCP7-BG-S

Summary of Contents for E2S GNExCP7-BG-S

  • Page 1 INSTRUCTION MANUAL GNExCP7-BG-S, GNExCP7-BG-D Call Point Class I & II Div 2 ; UL38 NEC / CEC / ATEX / IECEx / UKEx Zone 1, 2, 21, 22 GNExCP7-BG 1) Product Table Input Current Unit Type Code Input Voltage 250Vac Max 5.0A Max...
  • Page 2 Model No: Rating The GNExCP7-BG Call Points comply with the following standards for hazardous locations: GNExCP7-BG-S Ex db IIC T6 Gb X Ta -55°C to +70°C Ex tb IIIC T110°C Db Ta -55°C to +70°C Class/Division Ratings for US & Canada GNExCP7-BG-D Ex db IIC T5 Gb Ta -55°C to +70°C...

  • Page 3: Location And Mounting

    The unit should be mounted using 85°C (GNExCP7-BG-D) ATEX/IECEx/UKEx the 4 off fixing holes which will accept up to M5 sized fixings. 110°C (GNExCP7-BG-S) Class Zone They should only be fixed to services that can carry the 135°C (GNExCP7-BG-D) Class Zone weight of the unit.
  • Page 4 On completion of the installation, the flameproof joints should 10) Power Supply Selection be inspected to ensure that they are clean and that they have not been damaged during installation. Electrical Ratings Once the screws are removed the cover will hang down out See table 1 of the way to gain access to the terminals, the internal earth 250Vac max.
  • Page 5 For EOL and Series device limitations and configurations see the enclosure, but in no case more than the size of the Section 15. Fitting can be requested by E2S at the order conduit or 2” of enclosure, whichever is the lesser.
  • Page 6 stage or added to the correct terminal blocks afterward. All devices must comply with the requirements stipulated in section 15. Electrical Connections are to be made into the terminal blocks using solid or stranded wire. Wires having a cross sectional area between 0.5 mm² to 2.5mm²...
  • Page 7 Supply voltage 24Vdc Supply voltage 48Vdc Type value Max. value Max. component current current fitted (mA) End-of-Line min. 470R/ 3000 min. 2k2 / 1000 Resistor 2W or min. 2W or min. *See note 2k2 / 0.5W 8k2 / 0.5W End-of-Line 59.13 25.26 Diode...
  • Page 8 (Resistor polarity is unimportant) Terminals (4/5) & (6) closed Terminals (4/5) & (6) closed POSITIVE (+) COMMON POSITIVE (+) COMMON (IF DIODES SUPPLIED & CONFIGURED BY E2S) (IF DIODES SUPPLIED & CONFIGURED BY E2S) M/S 1 M/S 1 M/S 1...
  • Page 9 (Resistor polarity is unimportant) COM EOL COM EOL POSITIVE (+) COMMON POSITIVE (+) COMMON (IF DIODES SUPPLIED & CONFIGURED BY E2S) (IF DIODES SUPPLIED & CONFIGURED BY E2S) DIODE DIODE 4A - Circuit as shown in Unoperated condition 4A - Circuit as shown in Unoperated condition 4A - Circuit as shown in Unoperated condition Terminals (1) &...
  • Page 10 Terminals (1) & (4) M/S 1 and M/S 2 open Terminals (1) & (4) M/S 1 and M/S 2 open Contact E2S sales for special wiring requests Terminals (1) & (3) M/S 1 and (5) & (7) M/S 2 closed Terminals (1) &...
  • Page 11 See Sht 1 GNExCP7 [ ] [S] [P] SWITCH TYPE: [S] - Single Microswitch TERMINAL TYPE [P] - PCB ACN0102 RNP 15-04-2022 GNExCP7 [ ] [D] [P] SWITCH TYPE: [D] - Double Microswitch TERMINAL TYPE [P] - PCB EOL RESISTOR FIT IN 2 &...

  • Page 12: Eu Declaration Of Conformity

        Manufacturer:      European Safety Systems Ltd.        Impress House, Mansell Road, Acton        London, W3 7QH        United Kingdom    Authorised Representative:  E2S Warnsignaltechnik UG        Charlottenstrasse 45‐51        72764 Reutlingen        Germany    Equipment Type: GNExCP7‐BG, GNExCP7‐PB, GNExCP7‐PM, GNExCP7‐PT    Directive 2014/34/EU: Equipment and Protective Systems for use in Potentially Explosive Atmospheres (ATEX)  Notified Body for EU type Examination (Module B):  UL International Demko A/S  Notified Body No.: 0539 ...
  • Page 13 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-099_Issue_A Quality Assurance Manager Date and Place of Issue: London, 24/02/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-099_Issue_A - Page 1 of 1 - QAF_252_Issue_5...
