Installing the Server into a Rack
Align the screw holes in the inner slider with corresponding holes in the chassis
2
side panel.
Attach 4 of the shorter screws (as shown in the illustration above) and tighten
3
them firmly.
Repeat the steps to attach the inner slider to the other side of the chassis.
4

Mounting the Chassis onto the Rack

The chassis with disk drives inserted weighs 27 pounds. To avoid
Caution
accidents, have another person help you support the weight of the chassis as you
slide it into the rack.

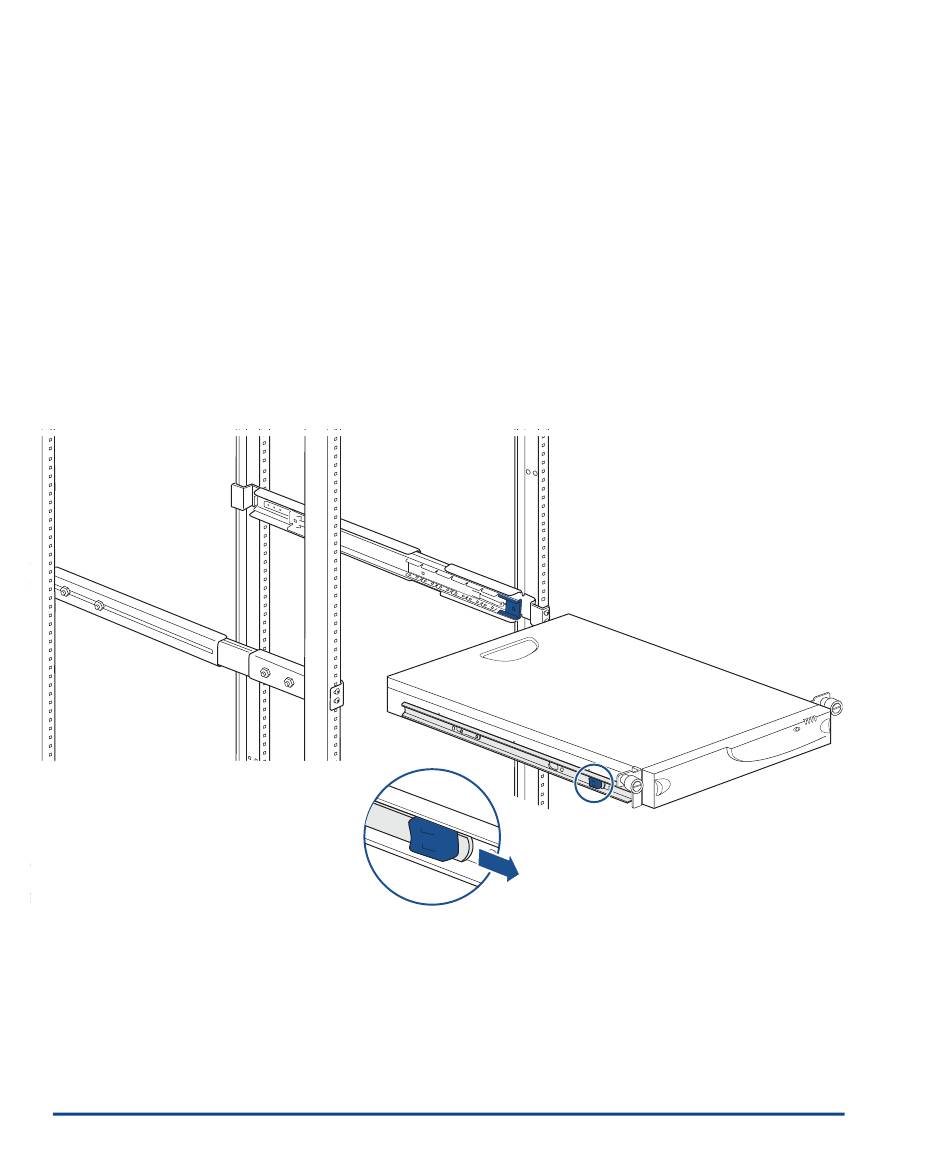

Align the inner sliders (attached to the chassis) with the front ends of the slide
1
rail assemblies (attached to the rack).
As you push the chassis into the rack, on the slide rails, pull the release buttons
2
on the inner sliders.
The release lets the inner sliders past a locking detent.
Tighten the screws that attach the ear brackets to the rack.
3
6
