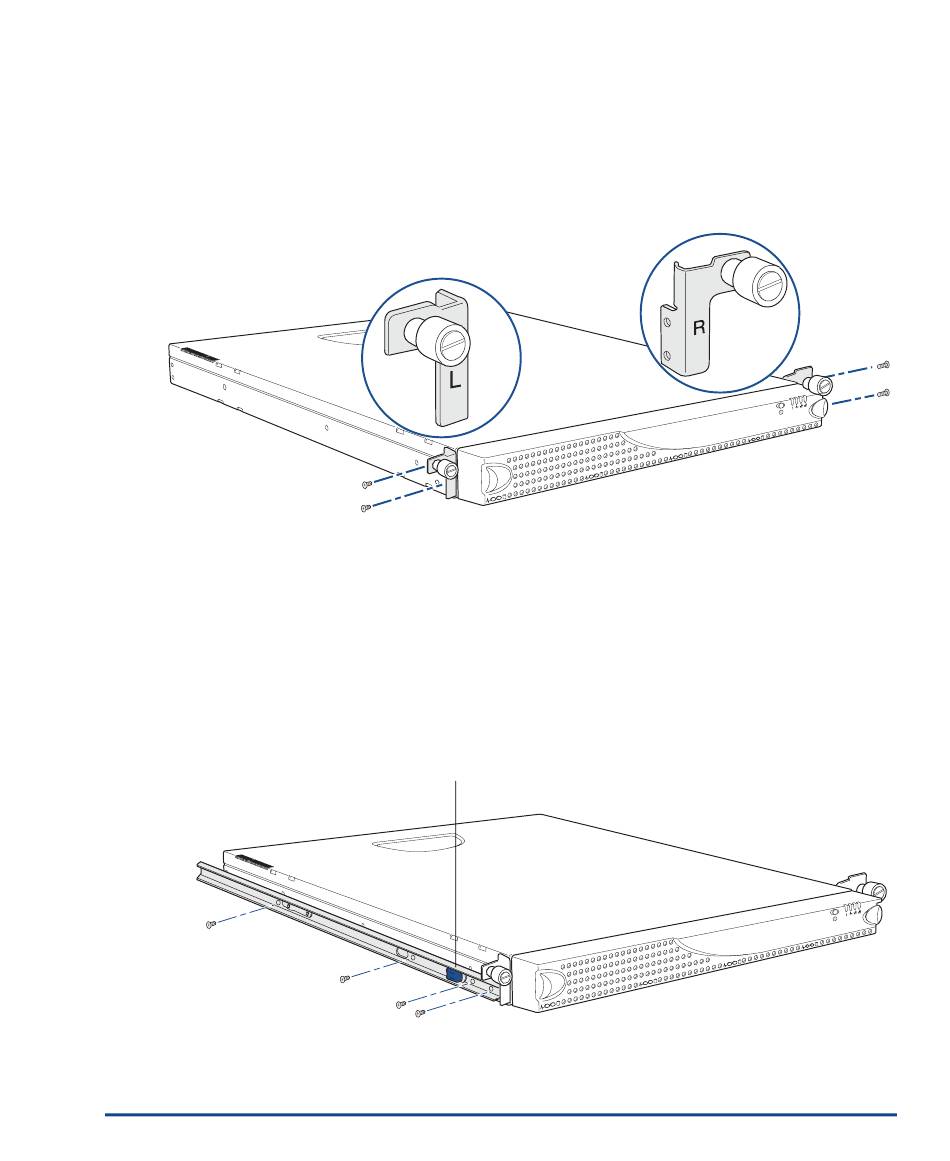

Attaching the Front Brackets to the Chassis
Position one of the front brackets at the front of the chassis side panel.
1
The brackets are oriented so one goes on the left side, and the other goes on
Tip
the right side.
Insert 2 small screws to attach each bracket to the chassis, and tighten them
2
firmly.
Attaching the Inner Sliders to the Chassis
Position an inner slider behind an ear bracket at the front of the chassis side
1
panel.
Be sure to position the inner slider with the release button toward the front of the
chassis.
Inner slider release button
