Removing the Inner Sliders from the Slide Rail Assemblies

Place the slide rail assembly on a flat surface.
1

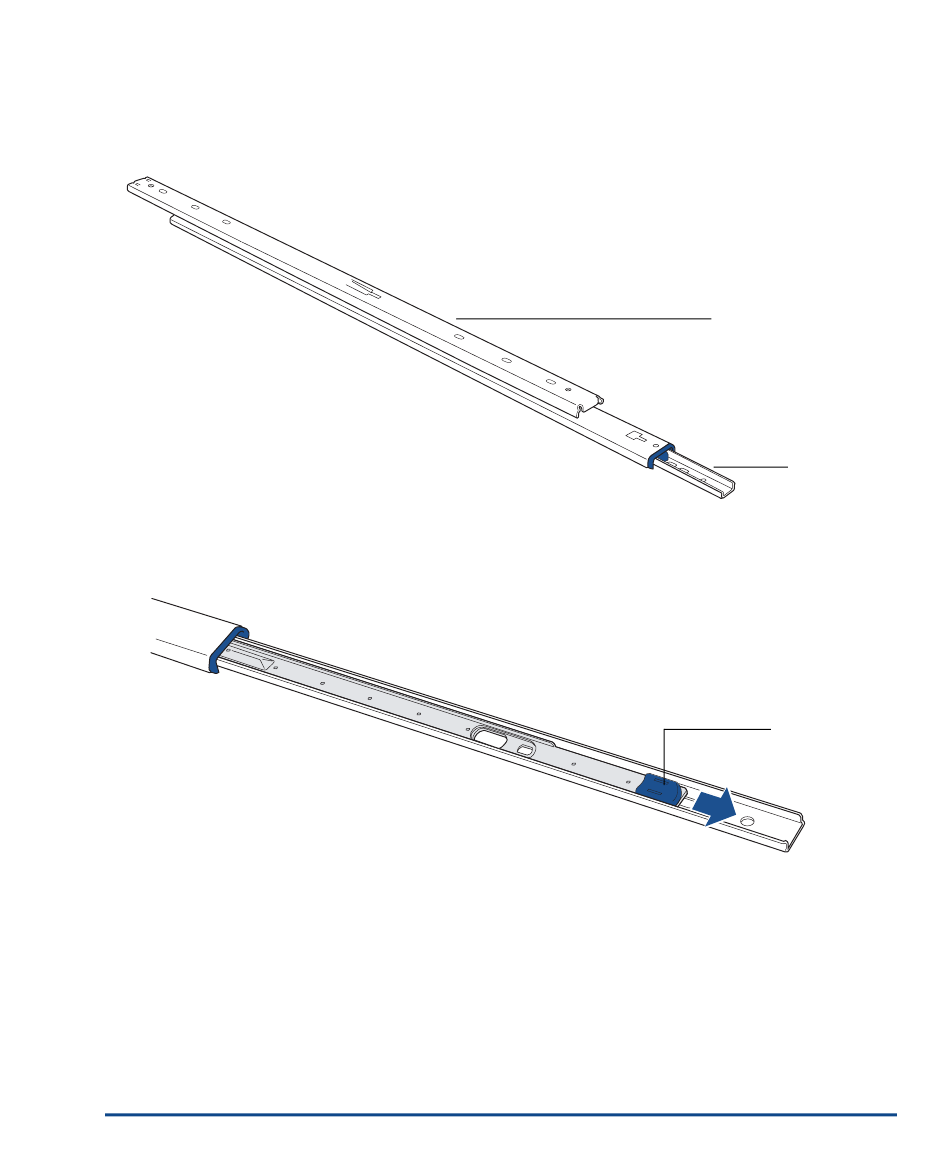

Grasp the inner slider and slide it toward the front of the assembly, as shown in
2
the picture below.
When the inner slider cannot move any farther, press the release button toward
3
the front.
The inner slider comes all the way out of the assembly.
Repeat the procedure with the second slide rail assembly. Set both inner sliders
4
aside for now. Later in the procedure, you attach them to the sides of the chassis.
Field Service Documentation
Copyright © 2004, Snap Appliance, Inc. All rights reserved. Information in this document is subject to change without notice and does not
represent a commitment on the part of Snap Appliance or any of its subsidiaries.
Installing the Server into a Rack
Slide rail assembly
Inner slider
Release button
