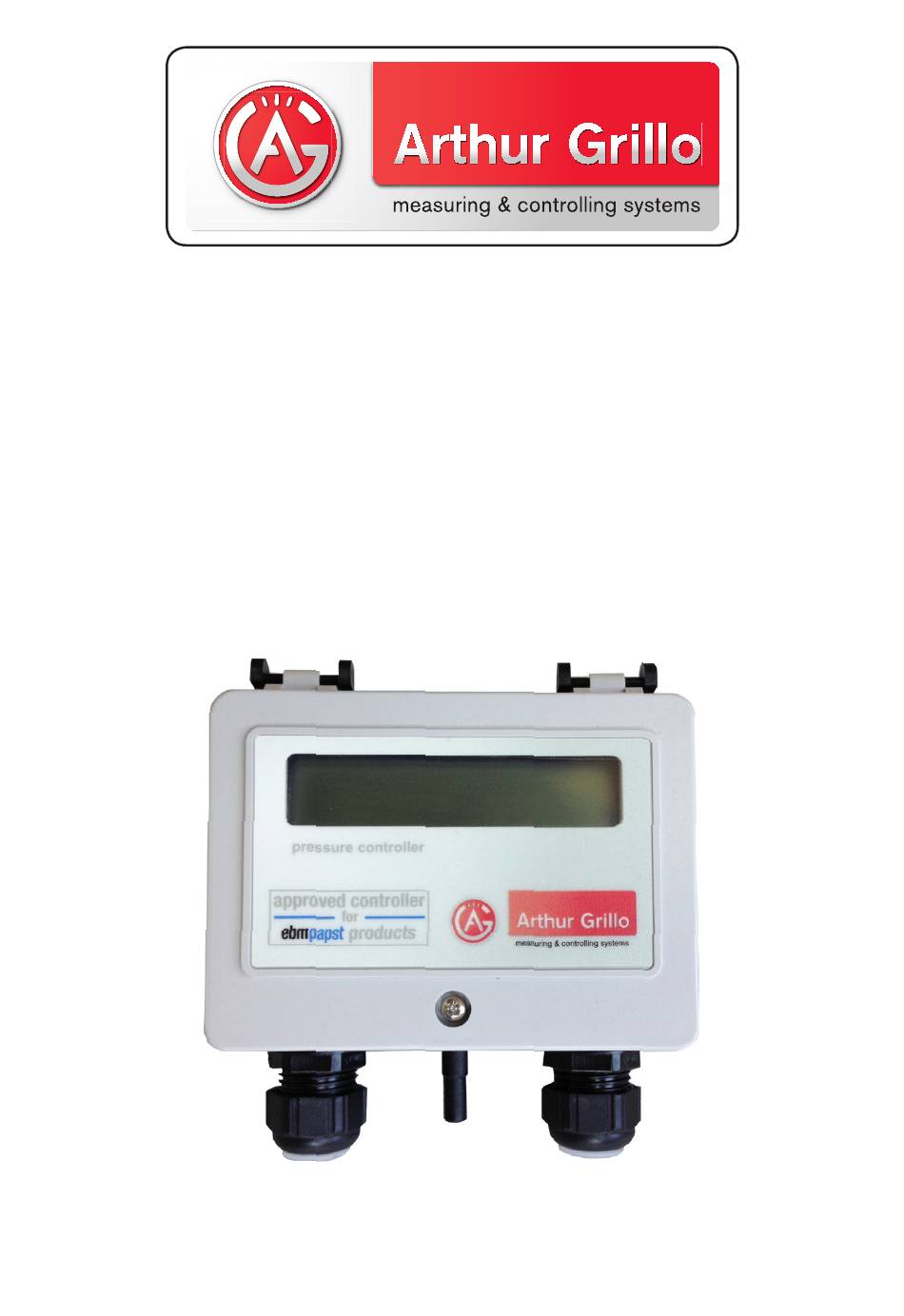

- Page 1 Installation and operation manual DPC200 - DIFFERENTIAL PRESSURE CONTROLLER Low pressure sensor with PI-control-mode Doc.-no.: DPC200_04_EBM_US Issue: 06/2018...
- Page 2 Arthur Grillo GmbH. This applies in particular to duplications, trans- lations, microfilming and storage and processing in electronic systems.
-
Page 3: Table Of Contents
Used pictograms and symbols General notes Product description Type plate Intended use Functional description Installation Dimensions Wall mounting Start up Overview DPC200 Schematic view inside Pressure connections Electrical connection Zero adjustment Operation Start menu Menu structure Adjustable parameters Function alarm output... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS General safety instructions 1.1 Signal words for safety instructions The safety instructions in this operation manual are designed to prevent hazards. They can be found in the operation manual before an operation / task / activity is described, which can entail a possible hazard. -
Page 5: Product Description
0...10V DC output signal is provided. Besides the measuring mode the DPC200 also can be operated in a control mode. Two setpoints can be adjusted in the device and can be selected with the potential free contact input. -
Page 6: Installation
INSTALLATION Installation The differential pressure controller DPC200 is designed for wall mounting. • The mounting surface must be solid enough and vibration-free. • The environment has to fulfill the ambient climatic conditions as given in the technical data. CAUTION Material damage... -
Page 7: Start Up

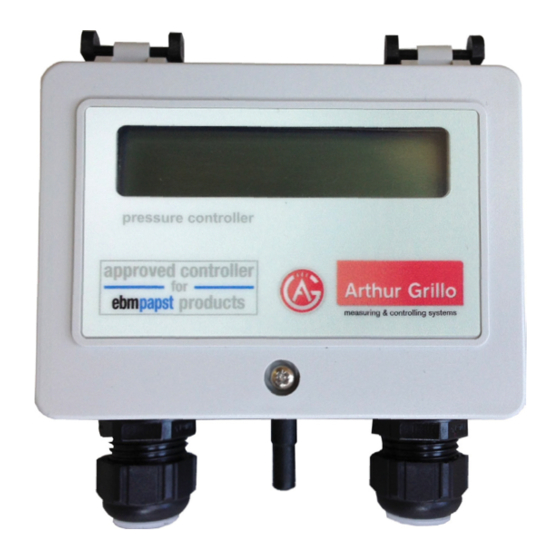

START UP Start up 4.1 Overview DPC200 Front cover Cable gland M16 x 1.5 Pressure connection 1 Pressure connection 2 Cable gland M16 x 1.5 4.2 Schematic view inside Button T1 Button T2 Button T1 and T2 serve for the operation of the menu 4.3 Pressure connections... -
Page 8: Electrical Connection
OPERATION 4.4 Electrical connection DPC200 + 10...30 Vdc or 24 Vac (±15%) excitation - GND (return) + 0...10 Vdc output ∆P - GND (return) dry contact open: Setpoint 1 close: Setpoint 2 Alarm output high ohm: alarm off low ohm:... -
Page 9: Menu Structure
OPERATION 5.2 Menu structure Doc.-no.: DPC200_04_EBM_US Issue: 06/2018... -
Page 10: Adjustable Parameters
OPERATION 5.3 Adjustable parameters Default set- Parameter Selection or parameter range ting Unit Metric or imperial metric Operating Measuring mode or control mode measuring mode mode: Differential pressure ΔP [Pa] or [InH differential Parameter Volume flow V [m /h] or [cfm] pressure ΔP [Pa] Volume flow calculation according to: V = k ·... -
Page 11: Function Alarm Output
OPERATION 5.4 Function alarm output The DPC200 has an open collector alarm output; depending on the operating mode the function is different. At the alarm event a contact between terminal no. 7 and no. 8 gets low-resistive and can be loaded with a maximum of 30 V DC/ 30 mA. When the alarm is switched off the contact will be high-resistive. -
Page 12: Maintenance
WARRANTY & SUPPORT Maintenance The DPC200 contains no wearing or consumable parts. Servicing is not required. On request, Arthur Grillo GmbH offers an annual calibration with factory certificate. For information, please contact: Arthur Grillo GmbH Phone: +49 21 02 - 47 10 22... -
Page 13: Specifications
SPECIFICATIONS 10. Specifications Measuring medium: Air or inert gases Measuring principle: Silicon diaphragm with spring and differential transformer Lowest span: 0...50 Pa Highest span: 0...4000 Pa Overpressure protection: 0.2 bar Static pressure: max. 0.2 bar Pressure connections: tubing 5 mm ø or 6 mm ø Enclosure: UL 94 HB;... -
Page 14: Ce-Labelling
CE-LABELLING & ORDERING INFORMATION 10.1 CE-labelling As an electric device the DPC200 falls within the scope of the directive 2004/108/EG (EMV-directive). In the scope of the EMV-directive the following norms were applied: DIN EN 61000-6-2:2006-03 Electromagnetic compatibility (EMC) - Part 6-2: Generic...
