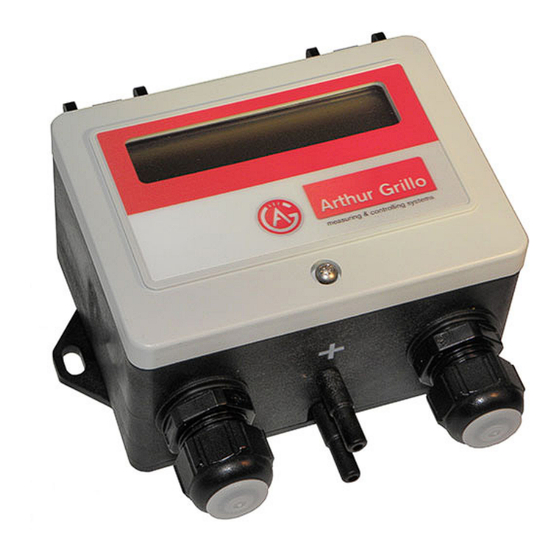

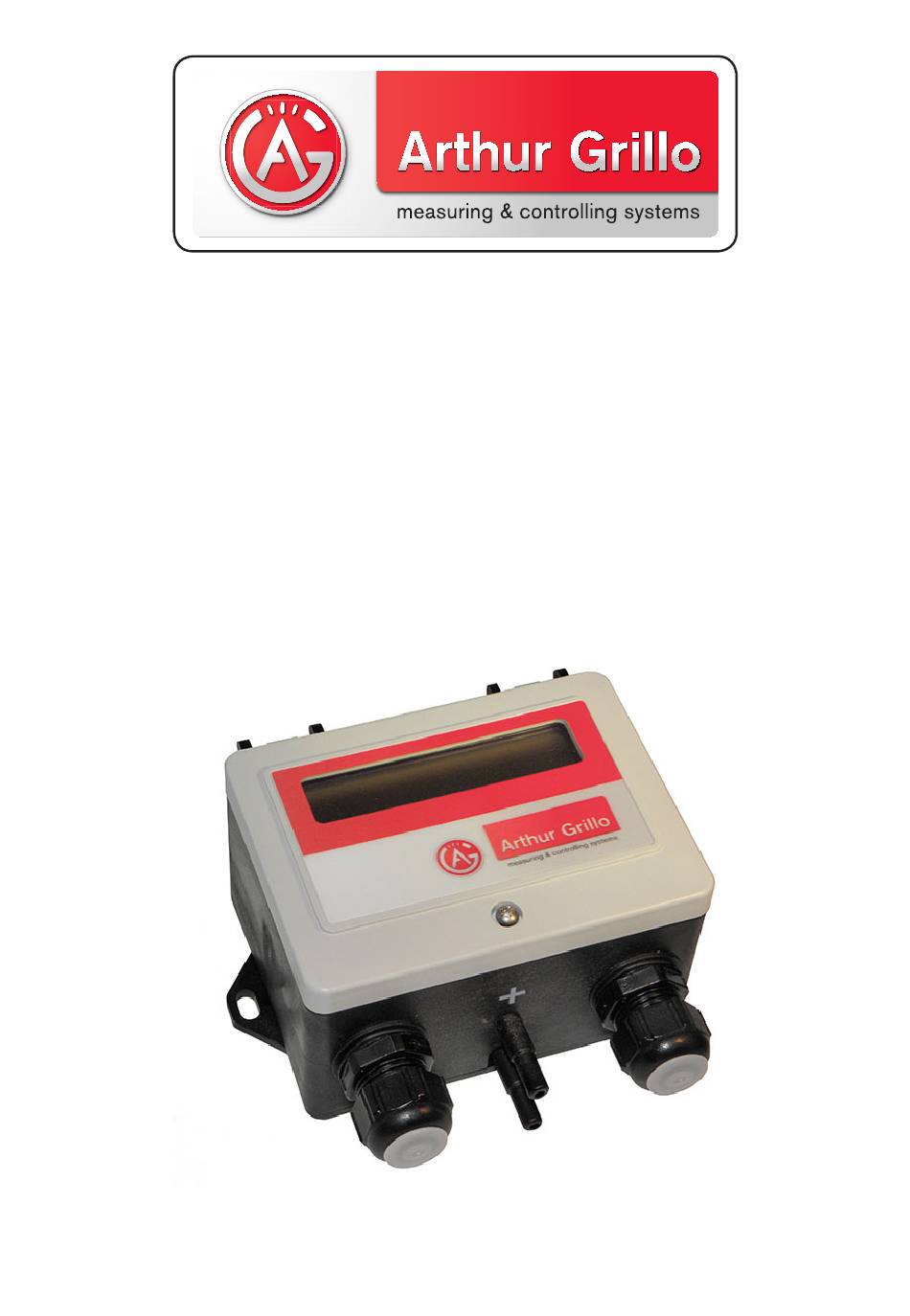

- Page 1 Installation and operation manual DPC200 - DIFFERENTIAL PRESSURE CONTROLLER Low pressure with PI-control-mode Issue: 11/2015 Doc.-no.: DPC200_01_EN...
- Page 2 Arthur Grillo GmbH. This applies in particular to duplications, trans- lations, microfilming and storage and processing in electronic systems.
-
Page 3: Table Of Contents
Used pictograms and symbols General notes Product description Type plate Intended use Functional description Installation Dimensions Wall mounting Starting up Overview DPC200 Schematic view inside Pressure connections Electrical connection Zero adjustment Operation Start menu Menu structure Measuring mode Control mode... -
Page 4: General Safety Instructions
The guidelines in this manual will help to avoid danger and downtime. Product description The differential pressure controller DPC200 measures low pressure of non-aggressive gases, particularly of air. Issue: 11/2015 Doc.-no.: DPC200_01_EN... -
Page 5: Type Plate
0...10 V DC output signal. Besides the measuring mode the DPC200 also can be operated in a control mode. Two setpoints can be adjusted in the device and can be selected with the potential free contact input. -
Page 6: Installation
INSTALLATION Installation The differential pressure controller DPC200 is designed for wall mounting. When selecting the installation site please note the following factors: • The mounting surface must be solid enough and vibration-free. • The environment has to fulfil the ambient climatic conditions as given in the technical data. -
Page 7: Starting Up
INBETRIEBNAHME Starting up The differential pressure controller DPC200 is designed for wall mounting. Please note when selecting the site, the following factors: • The mounting surface must be solid enough and vibration-free. • The environment must meet the environmental conditions specified in the technical data. -
Page 8: Electrical Connection
OPERATION 4.4 Electrical connection DPC200 + 10...30 Vdc or 24 Vac (±15%) excitation - GND (return) + 0...10 Vdc output ∆P - GND (return) dry contact open: Setpoint 1 close: Setpoint 2 Alarm output high ohm: alarm off low ohm:... - Page 9 OPERATION 5.2 Menüstruktur ΔP control set 1 150 Pa Press button T1 about 2 seconds to start menu menu Press button T2 Press button T1 unit unit metric imperial Press Press button T2 button T2 Press button T1 operating mode operating mode measuring mode control mode...
-
Page 10: Measuring Mode
OPERATION 5.3 Measuring mode Display Action ΔP Measurement Start menu: Press button T1 approx. two seconds 200 Pa menu Press button T2 to get to the next menu item Press button T1 to switch between: unit metric metric <=> imperial Press button T2 to get to the next menu item Press button T1 to switch between: operating mode measuring mode <=>... -
Page 11: Control Mode
OPERATION 5.4 Control mode Display Action ΔP Measurement Start menu: Press button T1 approx. two seconds 200 Pa menu Press button T2 to get to the next menu item Press button T1 to switch between: unit metric metric <=> imperial Press button T2 to get to the next menu item Press button T1 to switch between: operating mode measuring mode <=>... -
Page 12: Adjustable Parameters
OPERATION If selected parameter = volume flow than follows the additional input for the k-factor Button T1: reset value fan k-factor Button T2: set value k = 70 Button T1: confirm value, display flashes once Press button T2 to get to the next menu item 5.5 Adjustable parameters Parameter Selection or parameter range... -
Page 13: Function Alarm Output
BETRIEB 5.6 Function alarm output The DPC200 has an open collector alarm output; depending on the operating mode the function is different. At the alarm event a contact between terminal no. 7 and no. 8 gets low-resistive and can be loaded with a maximum of 30 V DC/ 30 mA. When the alarm is switched off the contact will be high-resistive. -
Page 14: Maintenance
WARRANTY & SUPPORT Maintenance The DPC200 contains no wearing or consumable parts. Servicing is not required. On request, Arthur Grillo GmbH offers an annual calibration with factory certificate. For information, please contact: Arthur Grillo GmbH Phone: 0 21 02 - 47 10 22... -
Page 15: Specifications
GEWÄHRLEISTUNG & SUPPORT 10. Specifications Specifications Measuring medium: Air or non-aggressive gases Measuring principle: Silicon diaphragm with spring and differential transformer Lowest span: 0...50 Pa Highest span: 0...6000 Pa Overpressure protection: 0,2 bar Static pressure: max. 0,2 bar Pressure connections: hose liners 5 mm ø... -
Page 16: Ce-Labelling
CE-LABELLING 10.1 CE-labelling As an electric device the DPC200 falls within the scope of the directive 2004/108/EG (EMV-directive). In the scope of the EMV-directive the following norms were applied: DIN EN 61000-6-2:2006-03 Electromagnetic compatibility (EMC) - Part 6-2: Generic Berichtigung 1:2011-06...
