Differential pressure controller
Hide thumbs Also See for DPC 200 Series:

Advertisement

Quick Links

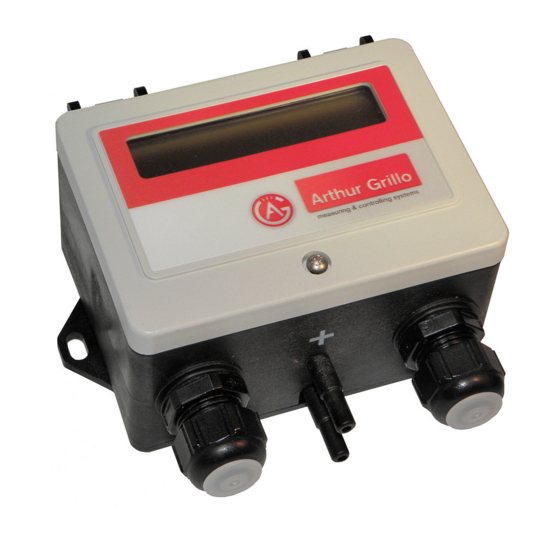

Differential Pressure Controller DPC 200
Diagraphm element with differential transformer
Measuring ranges: 0...50 Pa, 0...500 Pa, 0...1000 Pa, 0...4000 Pa
LCD-Display
Analog output 0...10 V
Controlling mode or measuring mode selectable
Controlling mode with PI algorithm
2 setpoints adjustable
Selectable measurements (differential pressure or volume flow)
Selectable units (metric or imperial)
Maximum output voltage adjustable
Compact plastic housing IP 54
Supply voltage 10...30 Vdc or 24 Vac (+/-15%)
Low pressure sensor with analog output
and PI controlling mode
Description and operating

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPC 200 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Arthur Grillo DPC 200 Series

  • Page 1 Differential Pressure Controller DPC 200 Low pressure sensor with analog output and PI controlling mode Diagraphm element with differential transformer Measuring ranges: 0...50 Pa, 0...500 Pa, 0...1000 Pa, 0...4000 Pa LCD-Display Analog output 0...10 V Controlling mode or measuring mode selectable Controlling mode with PI algorithm 2 setpoints adjustable Selectable measurements (differential pressure or volume flow)
  • Page 2 Safety instructions Attention! Read this instruction carefully, before you insert connect this item. Only qualified personal who is familar with installation, construction and operating of the equipment should work around these sensors. Application The differential pressure controller DPC200 measures low pressure of non-aggressive gases, particulary of air.
  • Page 3 Dimensions Electrical connection After opening the front cover, the electrical connection is made by using screw terminals. Terminals: 1+ 2- Excitation 10...30 Vdc or 24 Vac (+/-15%) 3+ 4- Output 0...10 V floating contact input for setpoint 1 or 2 Readjustment of the zero point The zero point can be, regardless of the menu, readjust with a small bar magnet.
  • Page 4 Mounting The differential pressure controller DPC 200 is designed for wall mounting. Installation must be done vertically. The connection of the pressure lines is performed with plastic tubing, inner diameter ø5 mm and ø6 mm. Device is position depended, therefore it is important that the assembly is vertical. Operation Start up: - The device must be mounted vertically.
  • Page 5 Adjustment: Menu structure: unit: The device can use metric or imperial units. operation mode: In the software menu two operating modes can be set. ‘controlling mode’ and ‘measuring mode’. parameter: The device can use differential pressure (Pa or InH2O) or volume flow (m /h or cfm) k-factor: For volume flow calculation, a k-factor can be entered.
  • Page 6 Adjustment: controlling mode ∆P = 150 Pa Press button T1 about 2 seconds to start menu menu Press button T2 Press button T1 unit unit metric imperial Press Press button T2 button T2 Press button T1 operating mode operating mode measuring mode controlling mode Press...
  • Page 7 Temperature drift, span: ± 0,2 % / 10 K Arthur Grillo GmbH · Am Sandbach 7 · 40878 Ratingen Telefon 0 21 02 - 47 10 22 · Telefax 0 21 02 - 47 58 82 www.grillo-messgeraete.de · info@grillo-messgeraete.de · www.sensor-store.de...
