swiftech MCX370-A Installation Manual

Compatible with AMD® Duron™, Athlon™, MP, XP 2000 & higher, and Intel® Pentium™ III processors

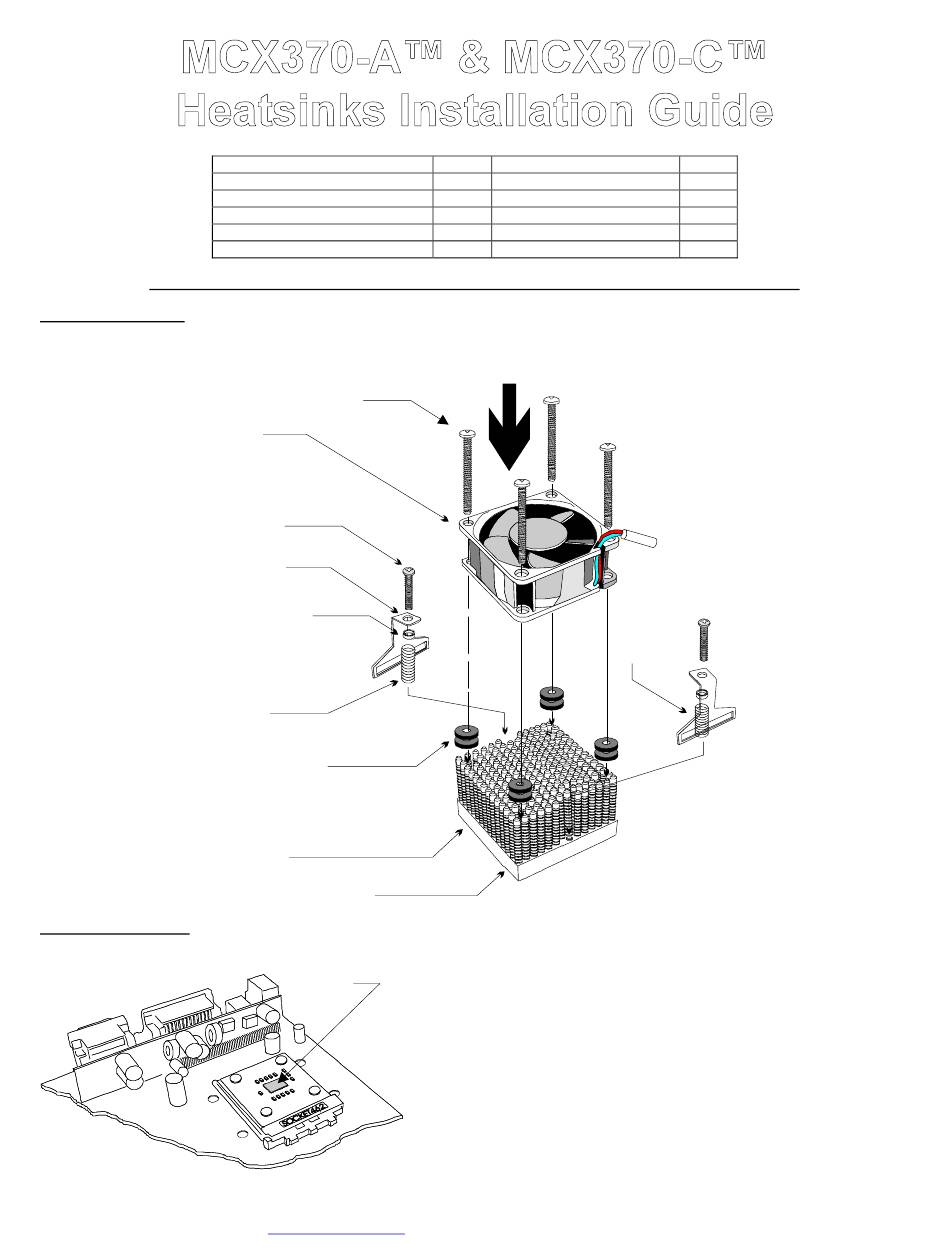

I. Assembly schematic
6-32 x 2 1/2" screw
Rubber washer
Step in heat sink base
II. Heat sink Installation
Copyright Swiftech 2001 – All rights reserved – Last revision date: Oct. 2001
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28
E Mail: Swiftech @swiftnets.com – URL:
Parts
Heat Sink
Fan
6-32 x 2 ½ " screws (for fan)
6-32 x 1" screws (for HS)
Clips
Fan
6-32 x 1 1/2"
screw
Clip
Nylon spacer
Long
spring
Heat sink
Thermal compound
here
th
Street, Signal Hill, CA 90806 – Tel. 562-595-8009 – Fax 562-595-8769
http://www.swiftnets.com
Packing list
Qty Parts
1 Nylon spacers
NO Long spring
4 Short spring
2 Rubber washers
2 Thermal grease
Fan air flow
direction
•
We recommend that you lay down your computer flat on a table.
•
Lightly coat the processor core with the included thermal compound.
Only a paper thin coat is necessary. It should be applied using
preferably a razor blade, or a credit card, held between thumb and
index at a 45 degree angle. It is critical to ascertain that the entire core
is covered with a uniform coat of thermal compound. Thermal
performance will dramatically decrease if any portion of the core is not
covered by thermal compound.
Qty
2
1
1
8
1
To power supply
Short
spring
Information subject to change without notice
Page 1
