What is Included in the box:

Incorrect installation of the fittings may permanently damage the thread of the reservoir ports, and is not covered
under our warranty. Please note that fittings should screw freely into a port. Should you feel any resistance in the first
turn when beginning to fasten a fitting, then do not attempt to force it! If this happens, back-off the fitting entirely, and
screw it back in while making sure that it is being inserted perfectly perpendicular to the port thread.
Fittings and plugs fastening torque and procedure: using a 5/8" socket or a flat wrench, the correct torque in
acrylic material is approximately 1/8
with the reservoir surface.
Fill-cap utilization: simply push on the fill-cap and twist it approximately 1/8 to 1/4 of a turn in any direction to
either loosen or fasten it.

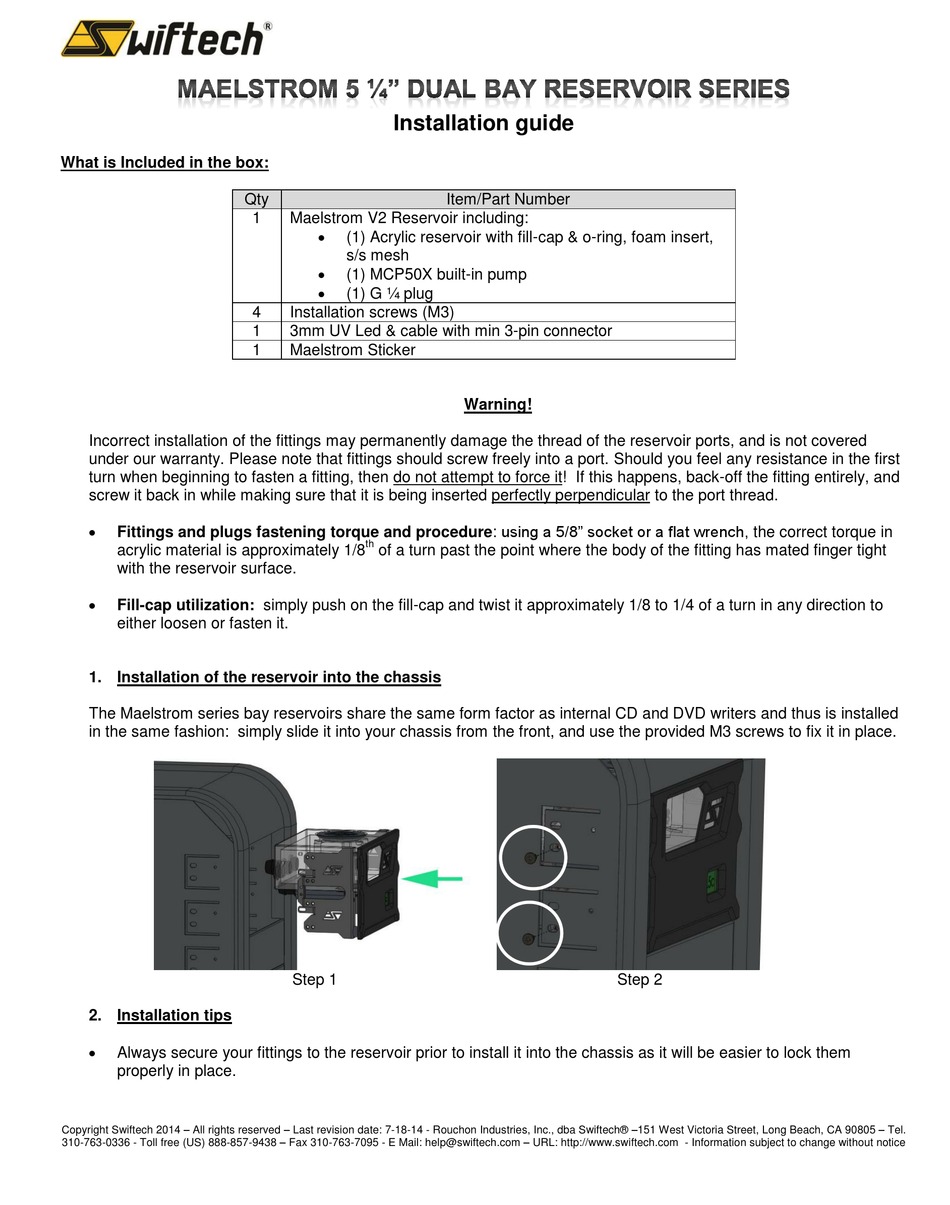

1. Installation of the reservoir into the chassis

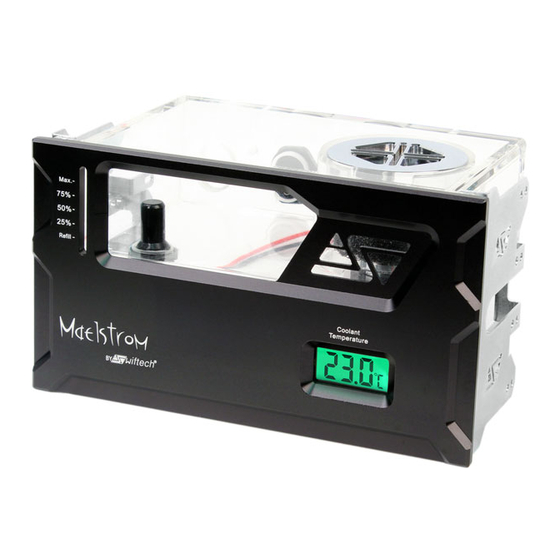

The Maelstrom series bay reservoirs share the same form factor as internal CD and DVD writers and thus is installed
in the same fashion: simply slide it into your chassis from the front, and use the provided M3 screws to fix it in place.

2. Installation tips

Always secure your fittings to the reservoir prior to install it into the chassis as it will be easier to lock them
properly in place.
Copyright Swiftech 2014 – All rights reserved – Last revision date: 7-18-14 - Rouchon Industries, Inc., dba Swiftech® –151 West Victoria Street, Long Beach, CA 90805 – Tel.
310-763-0336 - Toll free (US) 888-857-9438 – Fax 310-763-7095 - E Mail: help@swiftech.com – URL: http://www.swiftech.com - Information subject to change without notice
Installation guide
Qty
1
Maelstrom V2 Reservoir including:
(1) Acrylic reservoir with fill-cap & o-ring, foam insert,
s/s mesh
(1) MCP50X built-in pump
(1) G ¼ plug
4
Installation screws (M3)
1
3mm UV Led & cable with min 3-pin connector
1
Maelstrom Sticker
th
of a turn past the point where the body of the fitting has mated finger tight
Step 1
Item/Part Number
Warning!
Step 2
