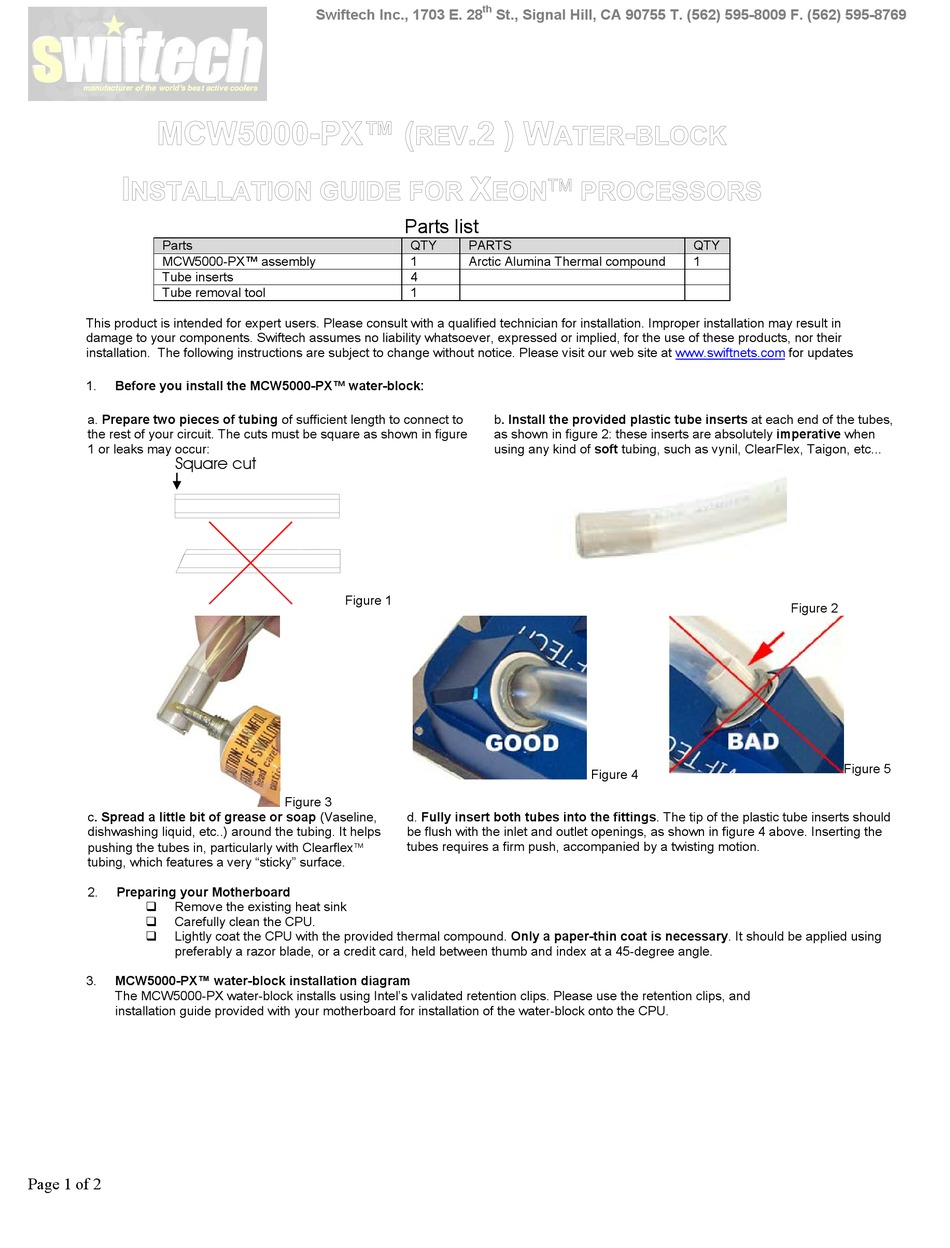

swiftech MCW5000-PX Installation Manual

Parts
MCW5000-PX™ assembly
Tube inserts
Tube removal tool
This product is intended for expert users. Please consult with a qualified technician for installation. Improper installation may result in
damage to your components. Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their
installation. The following instructions are subject to change without notice. Please visit our web site at
1. Before you install the MCW5000-PX™ water-block:
a. Prepare two pieces of tubing of sufficient length to connect to
the rest of your circuit. The cuts must be square as shown in figure
1 or leaks may occur:
Square cut
c. Spread a little bit of grease or soap (Vaseline,
dishwashing liquid, etc..) around the tubing. It helps
pushing the tubes in, particularly with Clearflex
tubing, which features a very "sticky" surface.
2.

Preparing your Motherboard

Remove the existing heat sink
Carefully clean the CPU.
Lightly coat the CPU with the provided thermal compound. Only a paper-thin coat is necessary. It should be applied using
preferably a razor blade, or a credit card, held between thumb and index at a 45-degree angle.
3. MCW5000-PX™ water-block installation diagram
The MCW5000-PX water-block installs using Intel's validated retention clips. Please use the retention clips, and
installation guide provided with your motherboard for installation of the water-block onto the CPU.
Page 1 of 2
Swiftech Inc., 1703 E. 28

Parts list

QTY
1
4
1
Figure 1
Figure 3
d. Fully insert both tubes into the fittings. The tip of the plastic tube inserts should
be flush with the inlet and outlet openings, as shown in figure 4 above. Inserting the
tubes requires a firm push, accompanied by a twisting motion.
th
St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769
PARTS
Arctic Alumina Thermal compound
b. Install the provided plastic tube inserts at each end of the tubes,
as shown in figure 2: these inserts are absolutely imperative when
using any kind of soft tubing, such as vynil, ClearFlex, Taigon, etc...
Figure 4
QTY
1
www.swiftnets.com for updates
Figure 2
Figure 5
