swiftech MCW5000-64RH Installation Manual

Parts
MCW5000-64™ base plate
6-32 x 1 ¾ Philips screw
Nylon shoulder washers
4-40 socket screws
MCW5000 replacement gasket
This product is intended for expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to
your components. Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The
following instructions are subject to change without notice. Please visit our web site at
Page 1 of 2
th
Swiftech Inc., 1703 E. 28 St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769

Parts list

QTY PARTS
1 Aluminum tension limiter
2 Springs
2 Arctic Alumina Thermal compound
4 Hex wrench
1 Stainless steel frame
Nylon spacers
6-32 x 1 3/4" philips
Nylon shoulder washer
Spring
Aluminum tension
limiter
4-40 socket screw
Stainless steel frame
Nylon spacer
Housing gasket
Copper base plate
4-40 x 3/8" socket
screw (use existing)
QTY
2
2
1
1
1
2
www.swiftnets.com for updates.

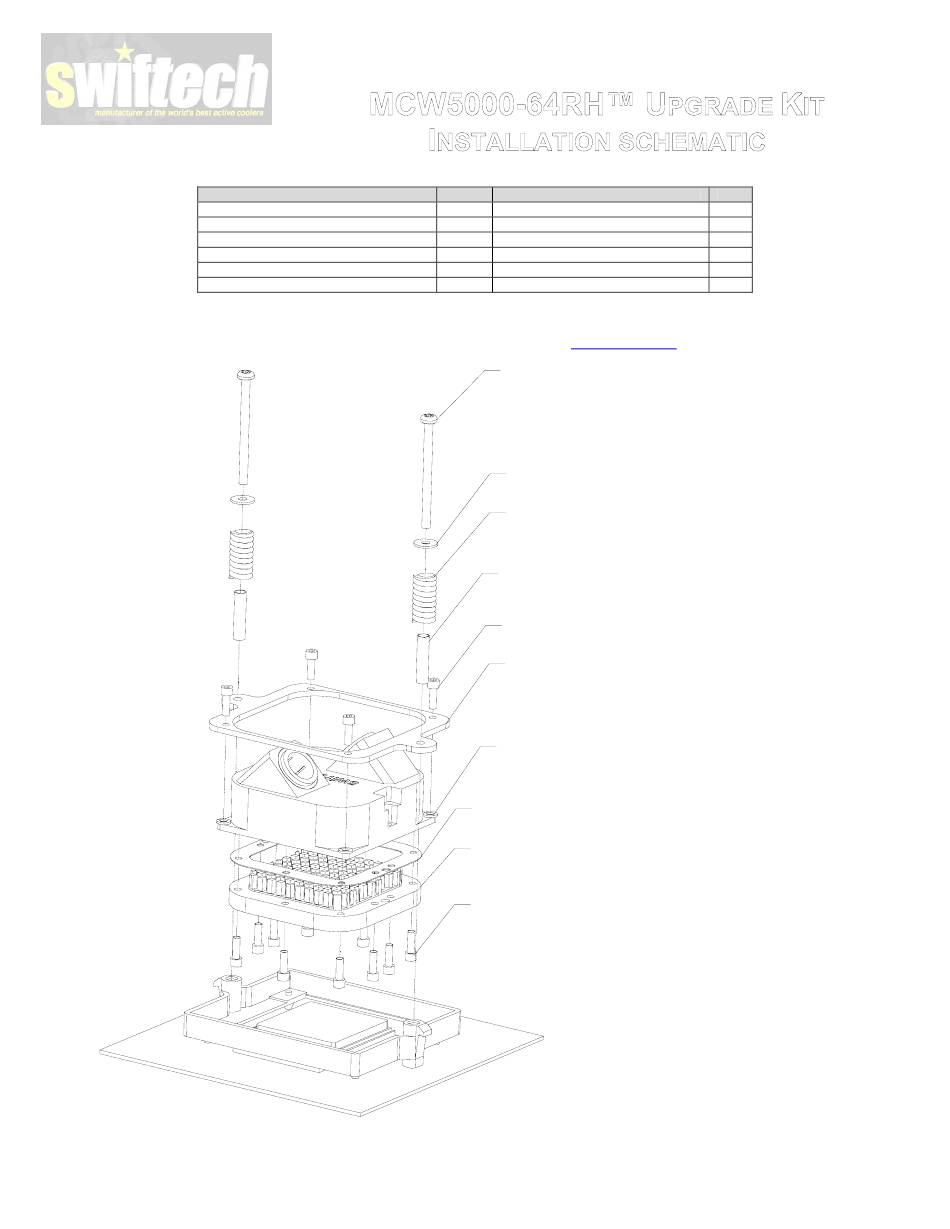

MCW5000-64™ water-block
installation diagram

Method 1:

The MCW5000-64 water-block bolts
onto AMD's validated plastic retention
frame with two screw spring
assemblies. Please use the retention
frame provided by your motherboard
vendor. Remove the two existing
screws that hold the frame in place,
place the water-block assembly onto
the CPU, and use these two holes to
bolt down the spring assemblies, as
shown in figure 6, page 2. Each spring
assembly features an aluminum
spacer acting as a tension limiter. It's
main purpose is to guarantee that
each springs is compressed to the
exact same amount of tension (35lbs
each).
.
