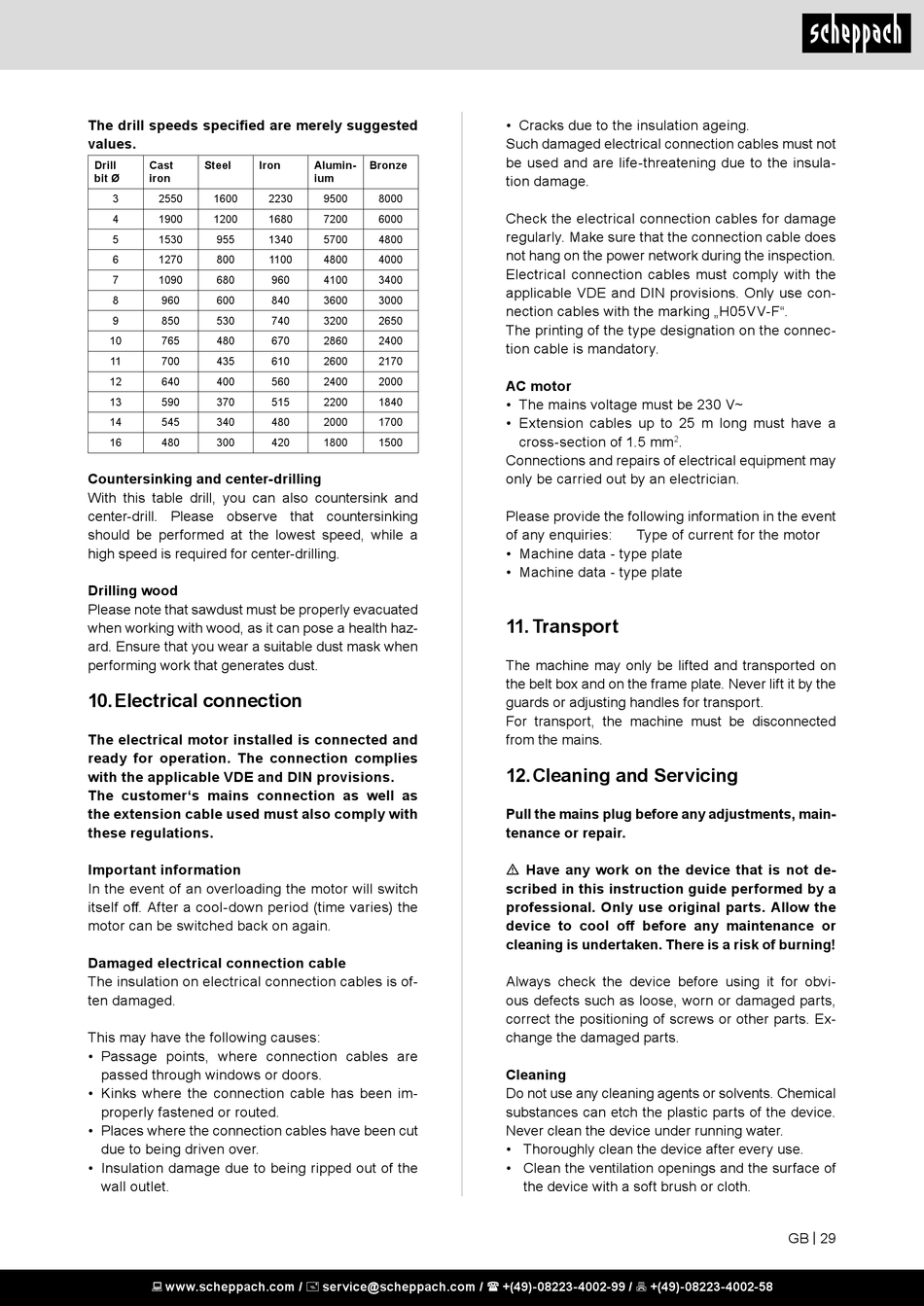

The drill speeds specified are merely suggested
values.
Drill Cast Steel Iron
bit Ø iron
3 2550 1600
4 1900 1200
5 1530 955
6 1270 800
7 1090 680
8 960 600
9 850 530
10 765 480
11 700 435
12 640 400
13 590 370
14 545 340
16 480 300
Countersinking and center-drilling
With this table drill, you can also countersink and
center-drill. Please observe that countersinking
should be performed at the lowest speed, while a
high speed is required for center-drilling.
Drilling wood
Please note that sawdust must be properly evacuated
when working with wood, as it can pose a health haz-
ard. Ensure that you wear a suitable dust mask when
performing work that generates dust.

10. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable VDE and DIN provisions.
The customer's mains connection as well as
the extension cable used must also comply with
these regulations.
Important information
In the event of an overloading the motor will switch
itself off. After a cool-down period (time varies) the
motor can be switched back on again.
Damaged electrical connection cable
The insulation on electrical connection cables is of-
ten damaged.
This may have the following causes:
• Passage points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been im-
properly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the
wall outlet.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Alumin- Bronze
ium
2230 9500 8000
1680 7200 6000
1340 5700 4800
1100 4800 4000
960 4100 3400
840 3600 3000
740 3200 2650
670 2860 2400
610 2600 2170
560 2400 2000
515 2200 1840
480 2000 1700
420 1800 1500
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insula-
tion damage.
Check the electrical connection cables for damage
regularly. Make sure that the connection cable does
not hang on the power network during the inspection.
Electrical connection cables must comply with the
applicable VDE and DIN provisions. Only use con-
nection cables with the marking „H05VV-F".
The printing of the type designation on the connec-
tion cable is mandatory.
AC motor
• The mains voltage must be 230 V~
• Extension cables up to 25 m long must have a
cross-section of 1.5 mm .
2
Connections and repairs of electrical equipment may
only be carried out by an electrician.
Please provide the following information in the event
of any enquiries: Type of current for the motor
• Machine data - type plate
• Machine data - type plate

11. Transport

The machine may only be lifted and transported on
the belt box and on the frame plate. Never lift it by the
guards or adjusting handles for transport.
For transport, the machine must be disconnected
from the mains.

12. Cleaning and Servicing

Pull the mains plug before any adjustments, main-
tenance or repair.
m Have any work on the device that is not de-
scribed in this instruction guide performed by a
professional. Only use original parts. Allow the
device to cool off before any maintenance or
cleaning is undertaken. There is a risk of burning!
Always check the device before using it for obvi-
ous defects such as loose, worn or damaged parts,
correct the positioning of screws or other parts. Ex-
change the damaged parts.
Cleaning
Do not use any cleaning agents or solvents. Chemical
substances can etch the plastic parts of the device.
Never clean the device under running water.
• Thoroughly clean the device after every use.
• Clean the ventilation openings and the surface of
the device with a soft brush or cloth.
GB | 29
