Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty.
The float-controlled condensate trap 1064-N / 1068-N is designed for the discharge of condensate from pipeline or plant.
Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other usage. The user or
operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and application
2.1

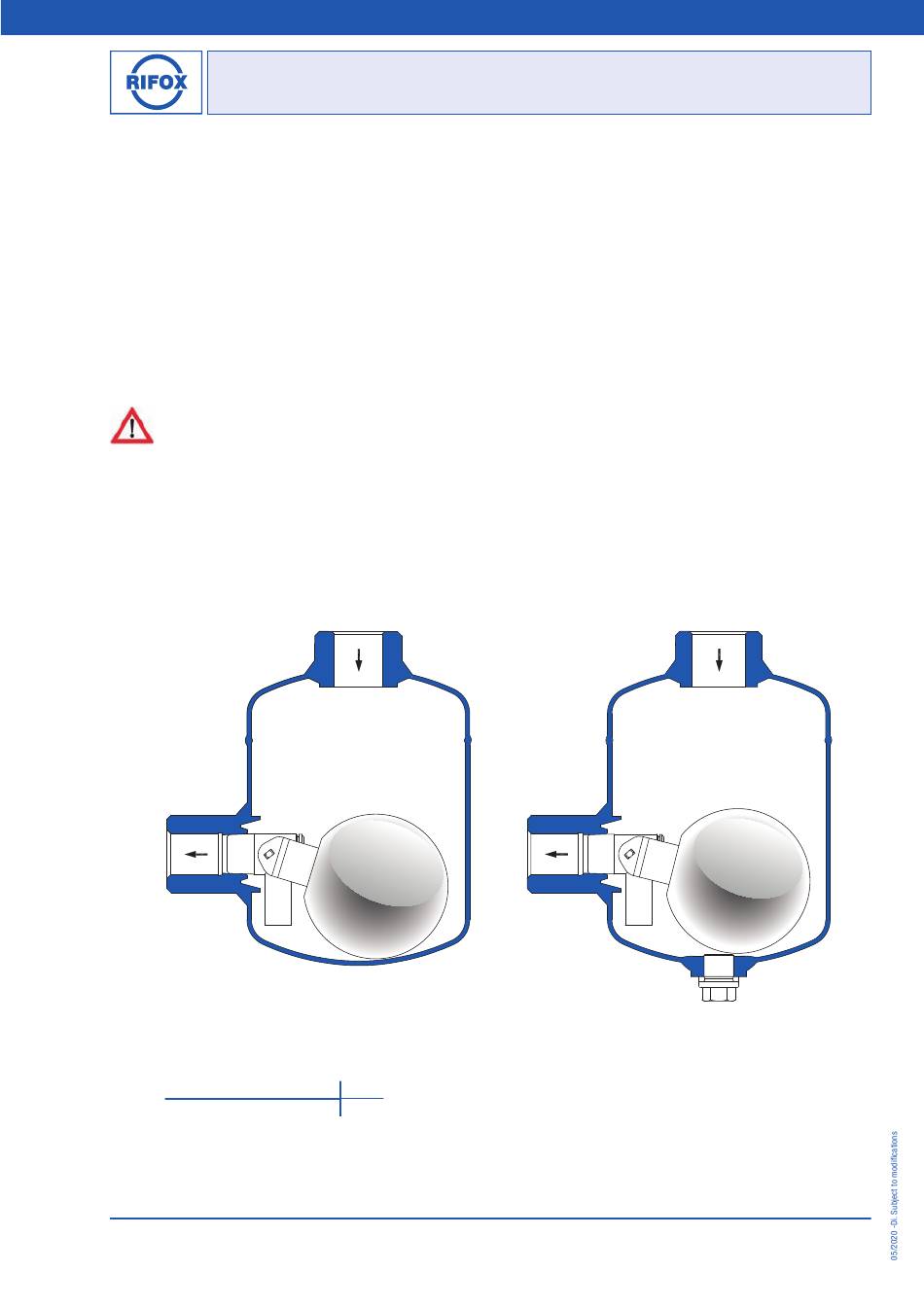

Design of the condensate trap
2.2
Operation limits (see marks on outlet and on housing)
max. operating pressure (bar g)
max. operating temperature (°C)
2.3
Function limit of control unit: 12 bar g
Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1064-N / 1068-N
RIFOmat Float - Controlled Condensate Trap, PN 16

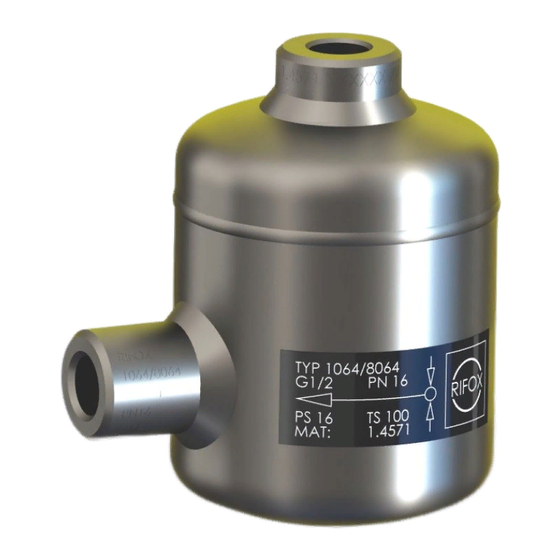

Picture 1: 1064-N
16
100
Fon: +49 (0) 421 499 75 - 0
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Picture 2: 1068-N
Internet: www.rifox.de
Email: contact@rifox.de
Breite: 1
Höhe:8,
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Rifox 1064-N
Summary of Contents for Rifox 1064-N
- Page 1 The float-controlled condensate trap 1064-N / 1068-N is designed for the discharge of condensate from pipeline or plant. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other usage. The user or operator bears the risk in this case.
- Page 2 With an inlet from below, the degassing happen before the trap, the automatic degassing is most effective. Traps with submerged-gastight control units should not be used at above 90°C or its use should be clarifi ed with RIFOX in advance.
- Page 3 ■ In the course of time, dirt can accumulate in the housing. It may block the tube and must be removed. ■ Model 1064-N (Picture 1): Dismantle the comdensate trap from the pipeline and fill it with water, so that the dirt is released.
- Page 4 Operating Manual Installation examples of condensate traps The condensate trap 1064-N or 1068-N can be installed e.g. as shown below. Picture 6 Monitoring and ensuring the proper operation Monitoring the gas leakage Upon the occurrence of gas leakage because the water seal does not exist: The immersion depth of the tube (geodesic height) can not be greater than the operating pressure.
- Page 5 Oben Links Breite: 1 278,5 20 Höhe:8, Page 5 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
- Page 6 Oben Links Breite: 170 278,5 20 Höhe:8,15 Page 6 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
