Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The float-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and usage
2.1
Design of the condensate trap
1
7
8
19
2.2
Operation limits of housing material (Design)
max. operating pressure (bar g)
max. operating temperature (°C)
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1100
Float-Controlled Condensate Trap, PN 25
9
11
6
18 17 12 13 15
10
20

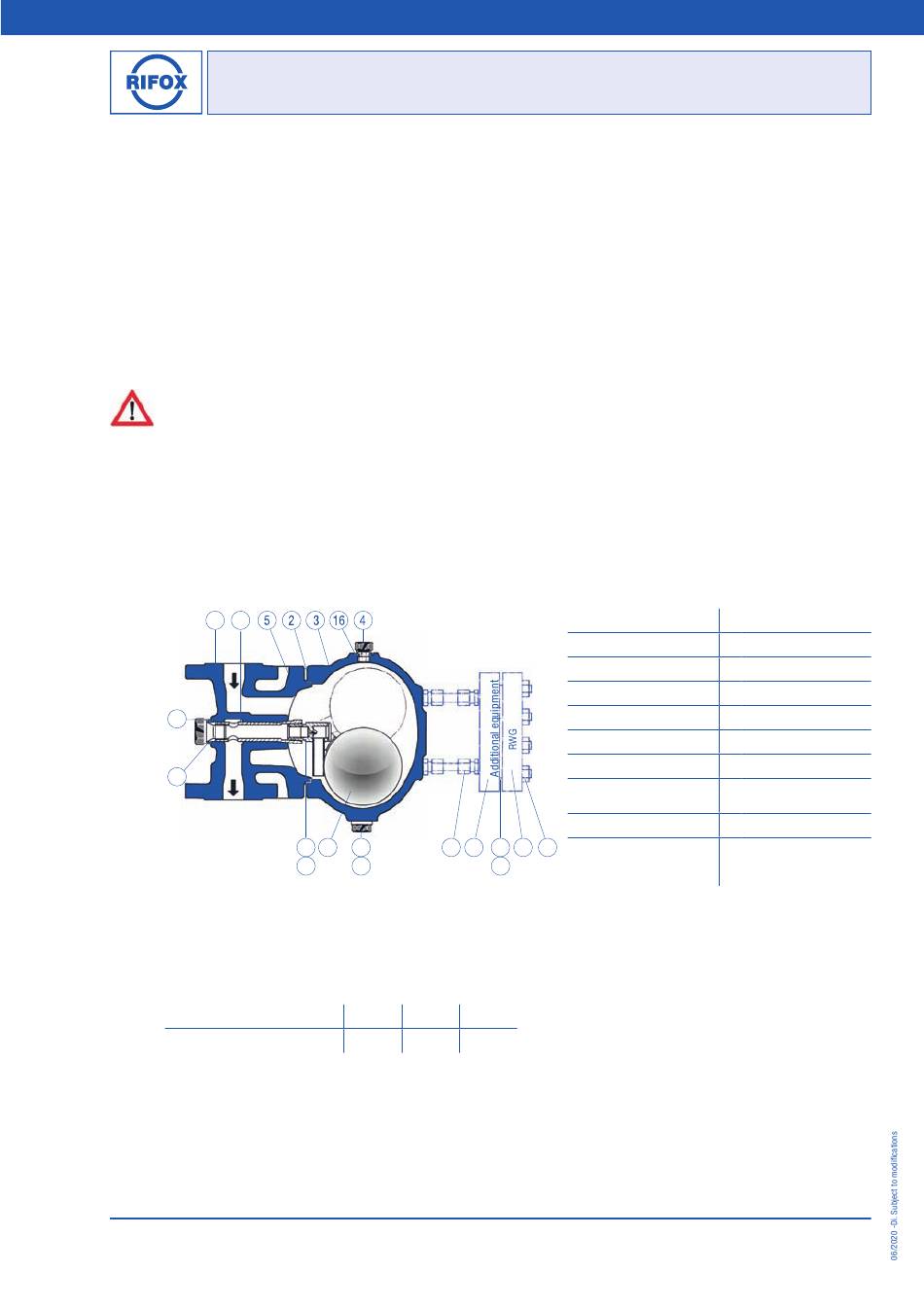

Picture 1: Model 1100
25
23
-10/120
200
Fon: +49 (0) 421 499 75 - 0
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
1 Housing flange part
2 Housing gasket
3 Housing side part
4 Control screw
5 Housing screws
6 Screw plug
7 Protective sleeve
8 Supporting screw
9 Float control assembly
Supporting body
assembly with rotary
10
14
valve and cotter pin
20
300
11 Float with fork
12 Maxosglas
13 RWG frame
14 2 gaskets for RWG
15 RWG Screws
16 Gasket
17 Frame
Cutting ring threaded
18
joint
19 Gasket
20 Gasket
Page 1 of 6
Internet: www.rifox.de
Email: contact@rifox.de
Advertisement
Table of Contents
Related Manuals for Rifox 1100
Summary of Contents for Rifox 1100
- Page 1 (bar g) max. operating temperature (°C) -10/120 Page 1 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40...
-
Page 2: Automatic Venting
See Picture 3. Gastight under-level float control (only for gas applications) ■ For gas applications, a gastight under-level float control is nearly exclusively used. Consult with Rifox, if necessary. Page 2 of 6... - Page 3 When using an angular version (EF) condensate enters from above and can also bring gas into the housing. With an inlet from below, the degassing happen before the trap, the automatic degassing is most effective. Traps with submerged-gastight control units should not be used at above 90°C or its use should be clarified with RIFOX in advance.
-
Page 4: Installation
Operating Manual Installation ■ The condensate trap Vario 1100 has to be screwed into a pipeline between flanges. ■ Remove transport caps from inlet and outlet. ■ Fitting direction: according to Picture 5. The condensate flow is in the direction of the arrow (note the arrow on housing flange part (1) ). -
Page 5: Care And Maintenance
Supporting screw Soft iron RWG screw Novaphit SGBC Page 5 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40... -
Page 6: Spare Parts
A detailed declaration of conformity assessment according to PED is available as separate document. Please request if necessary, if not attached. Page 6 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str.
