Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other use is not permissible. The manufacturer is not liable for damage resulting from any other
use. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, startup, use and
maintenance.
1.2
Warnings and symbols
■ There is a risk of personal injury due to escaping operating medium as well as because of pressure, temperature. Failure
to comply with these warnings may lead to accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and use
2.1
Design of the condensate trap
Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
RIFOmat Float-Controlled Condensate Traps, PN 100

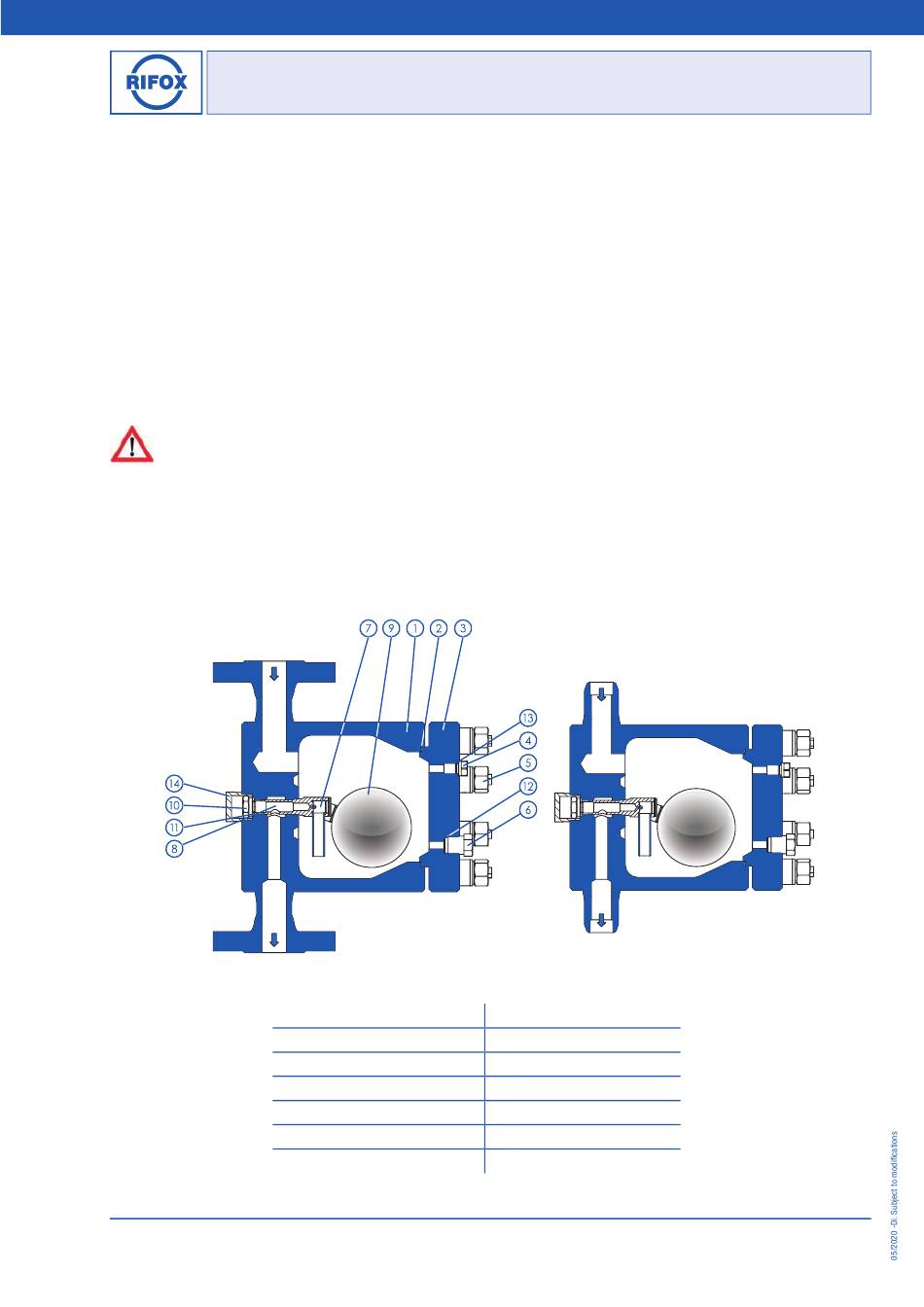

Picture 1: Vario 1400 / 1400-N
Flanged
1
Upper housing
2
Housing gasket
3
Lower housing
4
Control screw
5
Set of stud bolts and nuts
6
Screw plug
7
Float control assembly complete
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Model: 1400
Model: 1400-N
Picture 2: Vario 1400 / 1400-N
8
Complete supporting body
9
Float
10
Support bolt
11
Gasket
12
Gasket
13
Gasket
14
Protecting cap
Fon: +49 (0) 421 499 75 - 0
Butt weld
Internet: www.rifox.de
Email: contact@rifox.de
Breite: 1
Höhe:8,
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Rifox 1400
Summary of Contents for Rifox 1400
- Page 1 ■ Only trained or instructed personnel may be assigned to handling this equipment. ■ Any mode of operation that may impair safety must be avoided. General description and use Design of the condensate trap Picture 1: Vario 1400 / 1400-N Picture 2: Vario 1400 / 1400-N Flanged Butt weld...
- Page 2 Oben Links Breite: 170 278,5 20 Höhe:8,15 Page 2 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
-
Page 3: Automatic Venting
When using an angular version (EF) condensate enters from above and can also bring gas into the housing. With an inlet from below, the degassing happen before the trap, the automatic degassing is most effective. Traps with submerged-gastight control units should not be used at above 90°C or its use should be clarified with RIFOX in advance. -
Page 4: Maintenance / Inspection
■ Check the rotary valve (d) for wear along the sealing edge. If wear is detected, the support body (t) together with the rotary valve (d) must be replaced. A precise leakage test must be carried out by Rifox. ■ During assembly ensure that the notch in the rotary valve (d) points to the punch mark on the support body (t) and the cotter pin (s) is inserted and secured again carefully. -
Page 5: Tightening Torque
A detailed declaration of conformity assessment according to PED is available as separate document. Please request if necessary, if not attached. Model 1400 in 13CrMo4-5 or 10CrMo9-10 is not applicable for media of fl uid group 1. Oben Links Breite: 1 278,5 20 Höhe:8,...
