3) Connect all output breakers to a major output breaker. Then this major output breaker will directly
connect to the loads.
4) Either common battery packs or independent battery packs for each UPS are allowed.

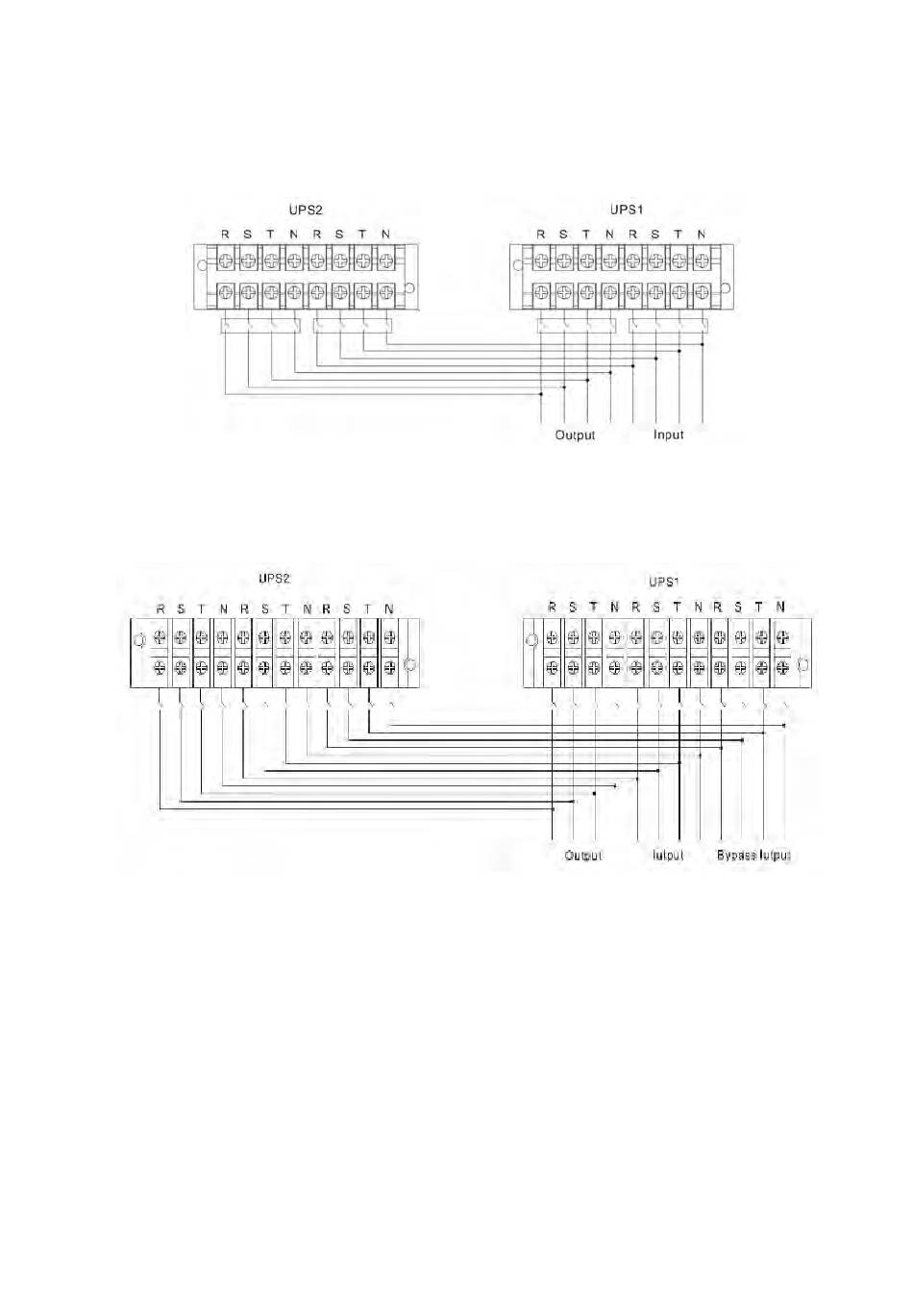

5) Refer to the following wiring diagram:
Wiring diagram of parallel system for E4 Evolution II + 10/15/20k TT (S) HV (standard)
Wiring diagram of parallel system for E4 Evolution II + 10/15/20k TT (S) HV (optional dual
INFOSEC UPS SYSTEM – 15, rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
76
hotline : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 07 19 AA 59 205 03
E4 Evolution II + 10k TT (S) LV (standard)
E4 Evolution II + 10k TT (S) LV (optional dual input)
input)
