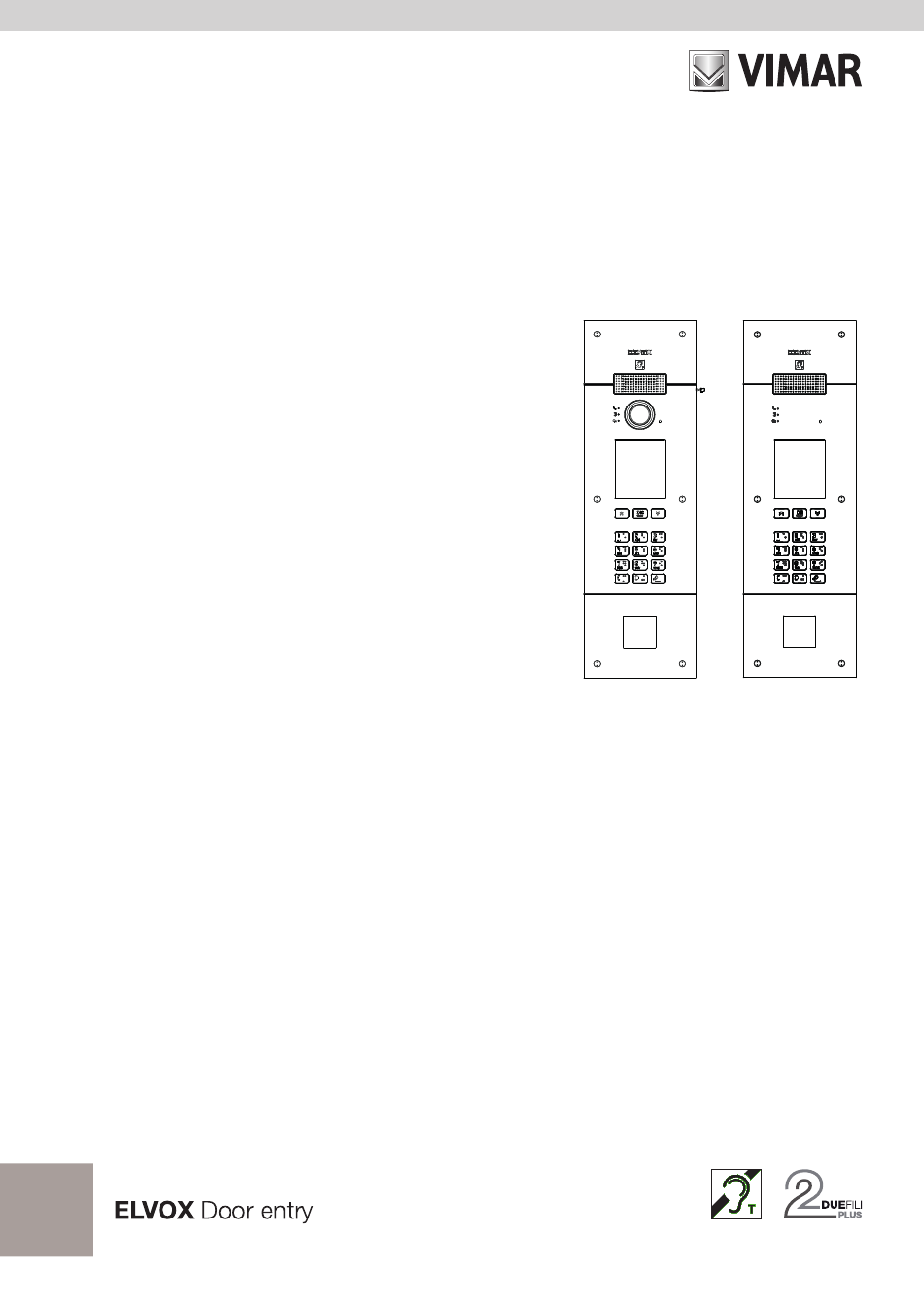

- Page 1 User Manual PIXEL UP 40404 - 40424 Panel with Due Fili Plus audio and audio/video electronic unit, display and alphanumeric keyboard...

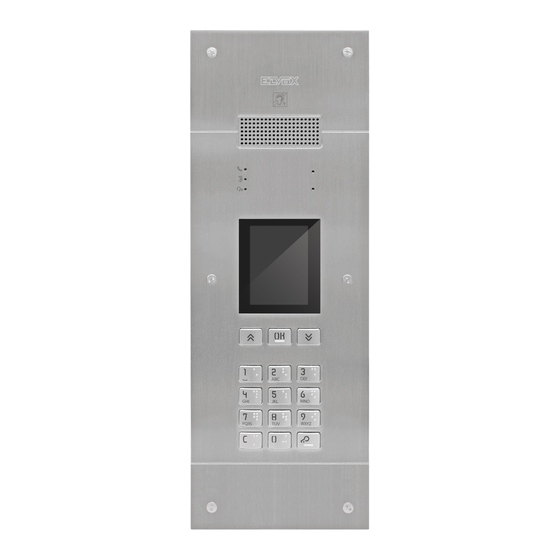

- Page 2 PIXEL UP: 40404 - 40424 Description Outdoor video entryphone unit with call from contacts list. The device is equipped with a display and keyboard. Calls can be made using a contacts list or by entering the extension number to call directly. The user names can be searched in the contacts list, using the filters by letter or via the system structure.
- Page 3 PIXEL UP: 40404 - 40424 Features The audio and audio/video module is equipped with: - interfacing to acoustic devices used by the hard-of-hearing; - voice synthesis, for signalling the call state; - Front LEDs, for signalling the call state; - light sensor function for automatically adjusting the brightness according to the ambient light. - zoom &...
- Page 4 PIXEL UP: 40404 - 40424 Using the display module In standby mode the device gives the instructions to follow to access the available features depending on the type of installation. Currently three options are available for the style of the home page displayed in stand-by and the Porter Porter consequent methods of accessing the available...
- Page 5 PIXEL UP: 40404 - 40424 Calling a Switchboard To call a switchboard, if configured in the contacts list, there is a quick item in the main menu. In addition, any other switchboards are accessible as contacts list items. Call from keyboard You can directly enter the extension number you want to call.
- Page 6 PIXEL UP: 40404 - 40424 If the user is busy or has set the user absent service, these warnings are issued: Absent Busy 2.6 Contacts list filters PC configuration software is used to enable a set of filters for targeted access to the sub-sets of the contacts list. The filters are described below.
- Page 7 PIXEL UP: 40404 - 40424 2.6.3. Stair filter The Stair filter lets you access the subset Users Stairs Buildings of users paired with Stair A SEARCH BY a specific stair or all NAME users. CALL BY No It can be combined with Stair A Lybra the two previous filters.
-
Page 8: Entry Control
PIXEL UP: 40404 - 40424 Entry control The display gives feedback on the access control mode operation. This mode is used to activate a previously configured command (e.g. lock, relay, etc.). (Cancel) key (Key) key Press the button and the display to go into “Code Entry” mode. Each time a digit button is pressed, the display will show the digit for a short time and then overwrite it with an asterisk. -
Page 9: Notification Messages
PIXEL UP: 40404 - 40424 Notification messages The following screen appears in the device start- up phase and the user must wait for the start-up phase to complete. Wait for the phase to complete. If other messages persist, contact the installer. Loading... - Page 10 PIXEL UP: 40404 - 40424...
- Page 11 PIXEL UP: 40404 - 40424...
- Page 12 Viale Vicenza, 14 36063 Marostica VI - Italy 49401377B0 00 1907 www.vimar.com...
