Summary of Contents for Vimar ELVOX Pixel Up Series

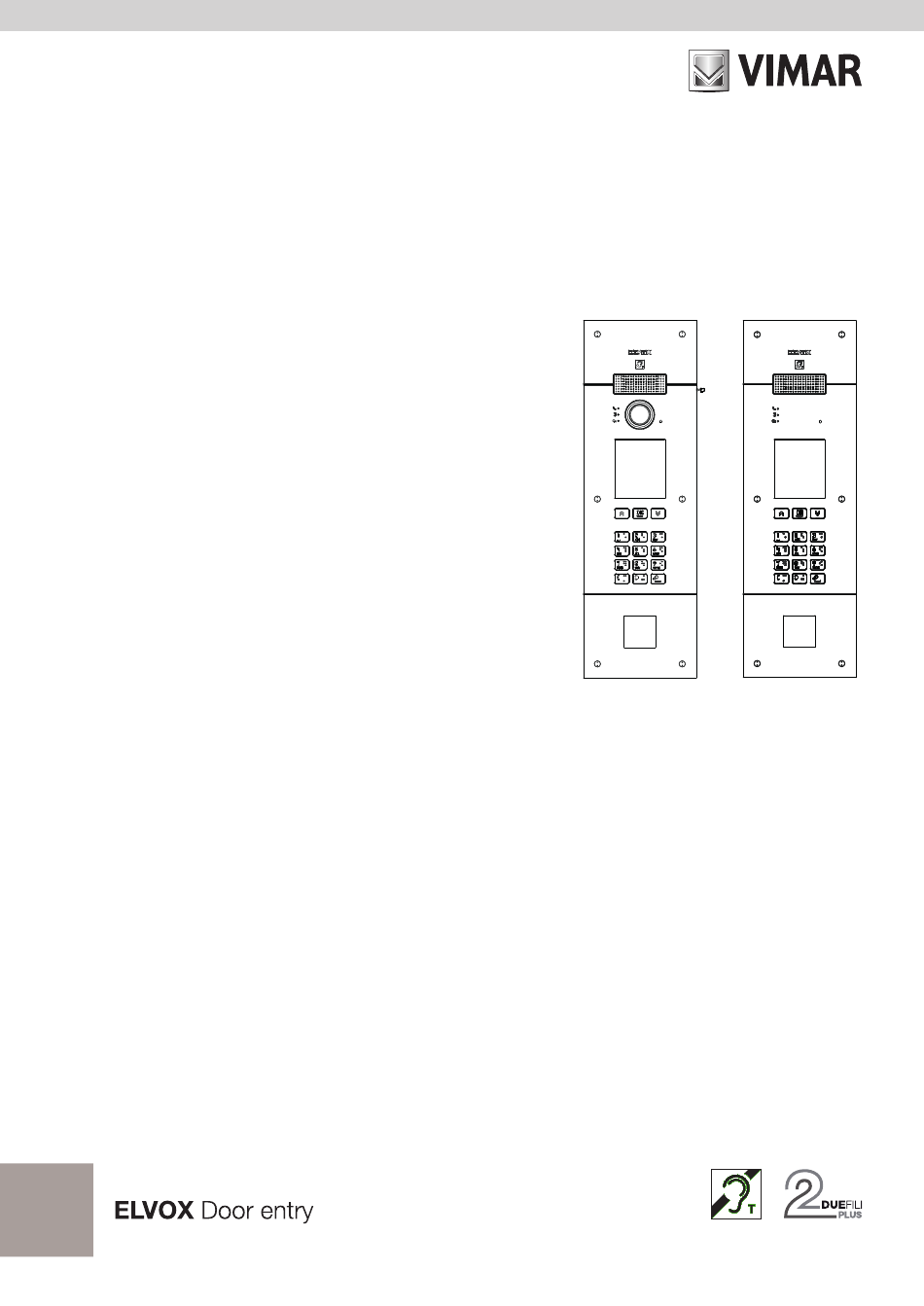

- Page 1 Installation and wiring manual PIXEL UP 40404 - 40424 Panel with Due Fili Plus audio and audio/video electronic unit, display and alphanumeric keyboard...

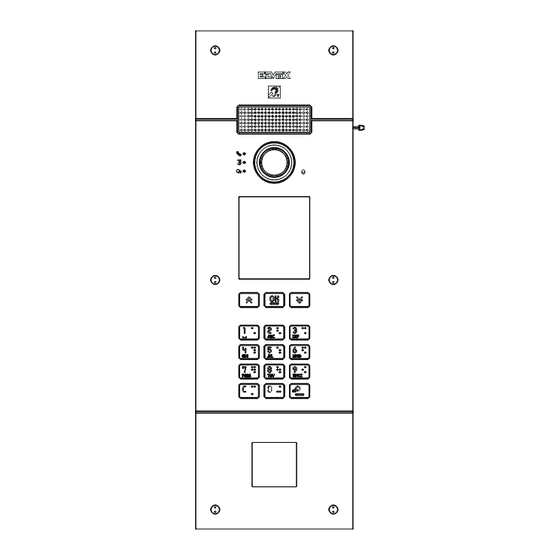

- Page 2 PIXEL UP: 40404 - 40424 Video entrance panel with Due Fili Plus audio and audio/video elec- tronic unit, display and alphanumeric keyboard The instruction manual is downloadable from the site www.vimar.com Description Outdoor video entryphone unit with call from contacts list.
-
Page 3: Technical Characteristics
PIXEL UP: 40404 - 40424 Technical characteristics • Operating temperature: -25° C / +55° C. • IP54 degree of protection • IK08 degree of protection against impact The audio and audio/video module is distinguished by: - Power supply from Due Fili Bus, via terminals B1 and B2: 28VDC nominal. - Minimum voltage on terminals B1 and B2: 21Vcc - Local power via terminals E+, E- if the electronic unit needs to be powered via an additional power supply unit. - Page 4 PIXEL UP: 40404 - 40424 40404 audio/video entrance panel rear view Terminal block for connection tot he audio/video unit Terminal functions Due Fili Plus audio video unit Due Fili Bus 41005UP Additional external power supply, from power supply unit 6923 (output +U). CA+ Lock control additional button (Default).
- Page 5 PIXEL UP: 40404 - 40424 40424 audio entrance panel rear view Morsettiera di collegamento alla unità audio/video Terminal functions Due Fili Plus Due Fili Bus 41002UP audio unit Additional external power supply, from power supply unit 6923 (output +U). CA+ Lock control additional button (Default). Alternatively (if configured via SaveProg), sensor input to signal “Door Open”.
- Page 6 PIXEL UP: 40404 - 40424 2,6 m (104°) Installation 1. Install the flush-mounted or external surface mounting box at a height of approx. 1.65 m or 1.20 m for accessibility for the disabled, from the upper edge of the box to the floor. 2.
- Page 7 PIXEL UP: 40404 - 40424 1.3.2 Installation with flush mounting box Remove the support brackets from the box and turn them downwards to the horizontal po- sition. Hook the panel to the brackets through the slots on the side of the metal frame. 1.3.3 Installation with external surface mounting box...
-
Page 8: Wiring Diagram
PIXEL UP: 40404 - 40424 Wiring diagram Video entryphone/entryphone riser Mains 6922.1 41005UP 41030UP 41018UP 41019UP D - Audio-video entrance panel with display and keyboard 40404 F - System power supply unit 6922.1 P - Electric lock L - Additional lock control button X - Twisted cable 732H.E, 732I.E... - Page 9 PIXEL UP: 40404 - 40424 1.4.1 Version of wiring additional power supply with power supply unit 6923 Video entryphone/entryphone riser Mains Mains 6923 6922.1 - +U +I 41005UP 41030UP 41018UP 41019UP Caution: observe the correct polarity when connecting. D - Audio-video entrance panel with display and keyboard 40404 F - System power supply unit 6922.1 F1 - Additional power supply unit 6923 P - Electric lock...
- Page 10 PIXEL UP: 40404 - 40424 Connection variant for Audio panel 41425 with external CCTV camera Video entryphone/entryphone riser Mains Mains 6922.1 41005UP 41030UP 41018UP 41019UP D - Audio-video entrance panel with display and keyboard 40425 F - System power supply unit 6922.1 F3- Power supply unit for external CCTV camera P - Electric lock L - Additional lock control button X - Twisted cable 732H.E, 732I.E...
-
Page 11: Installation Rules
PIXEL UP: 40404 - 40424 Installation rules Installation should be carried out by qualified personnel in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. Conformity EMC directive Standards EN 60065, EN 61000-6-1 and EN 61000-6-3. REACH (EU) Regulation no. - Page 12 Viale Vicenza, 14 36063 Marostica VI - Italy 49401376B0 00 1907 www.vimar.com...
