2.2. Mechanical mounting Series 20/30

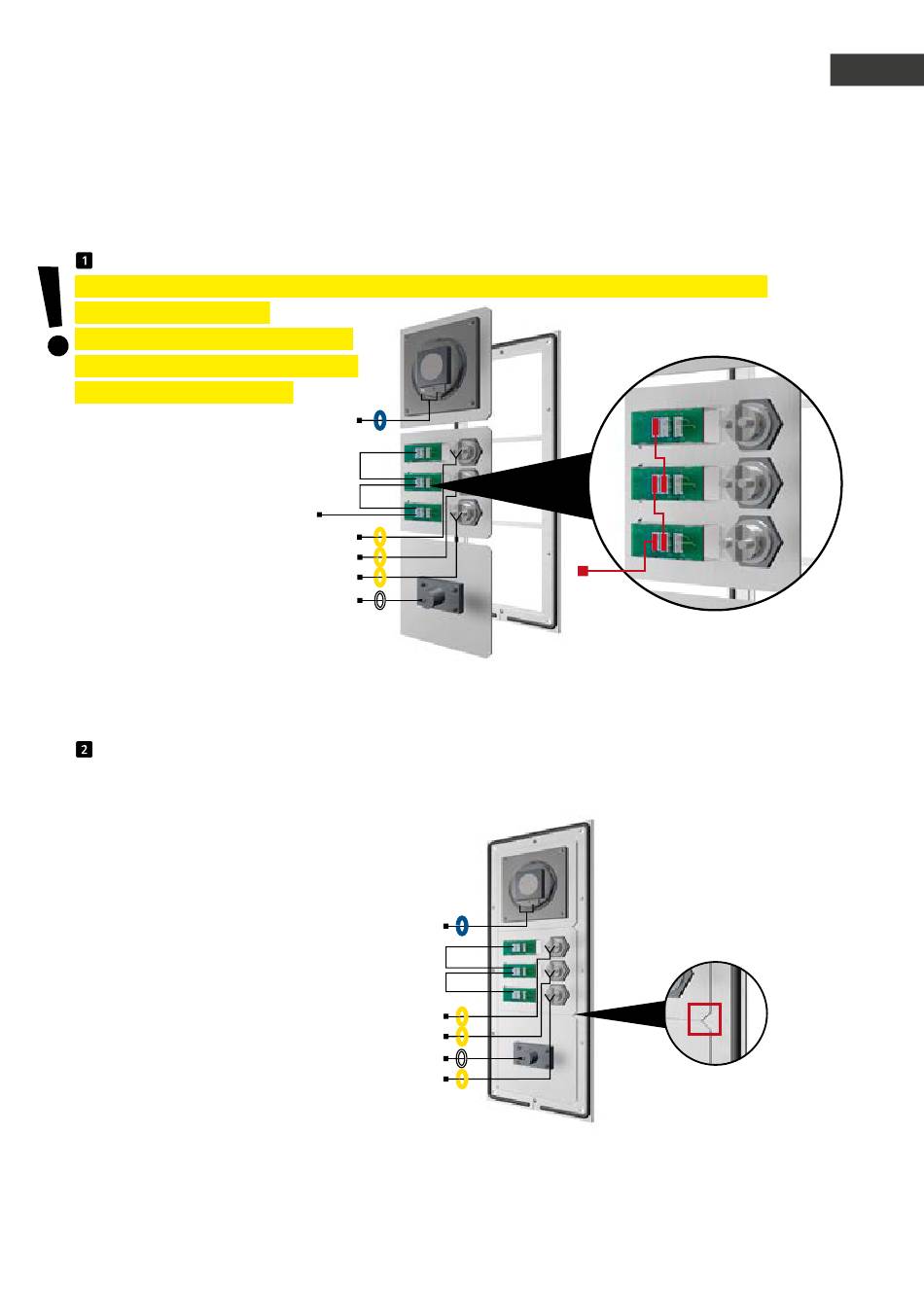

Insert the function modules into the front frame.
Please note: When using the loudspeaker types 20-1107-IP/21-1107-IP, 20-1109-IP/21-1109-IP
and 43-9913, please note
that the loudspeakers are not placed
in the immediate vicinity of the relays
of the basic electronics (AIF).
Illumination 12 V=
Insert the modules into the frame from the rear.
Function modules into the front frame
When inserting the modules, please make sure to maintain the anti-twist protection and also have
the modules "click" audibly into position.
