REV.7.20.A
Equipment Supply Company
Instruction Manual

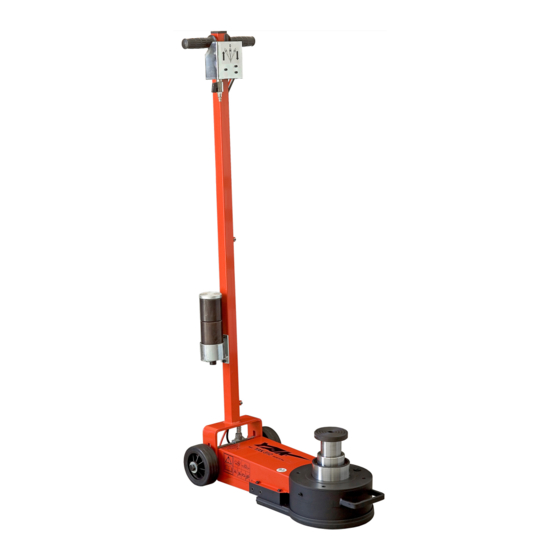

YAK 66/33/17 Ton Jack
ESCO #92007
Copyright © 2020 Equipment Supply Co., All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YAK 66/33/17 Ton Jack and is the answer not in the manual?

Questions and answers

Summary of Contents for Esco YAK 66/33/17 Ton Jack

  • Page 1 REV.7.20.A Equipment Supply Company Instruction Manual YAK 66/33/17 Ton Jack ESCO #92007 Copyright © 2020 Equipment Supply Co., All rights reserved...
  • Page 2: Table Of Contents

    FOREWORD ........................................3 SAFETY REGULATIONS ....................................3 PACKING ........................................... 4 PUTTING INTO OPERATION ..................................4 USE ............................................5 WARRANTY ........................................6 MAINTENANCE JOBS FOR THE END USER ............................6 AIR BLEEDING ........................................6 MAINTENANCE RESERVED TO A PROFESSIONALLY QUALIFIED ENGINEER ................6 TECHNICAL DATA SHEET .....................................
  • Page 3: Foreword

    FOREWORD Dear Customer, before using the jack, carefully read these instructions and become acquainted with the safety symbols. - This handbook is an integral part of the machine which must be kept safely and be handy for the worker to consult whenever needed.
  • Page 4: Packing

    PACKING - The body, handle and other parts of the jack are packed in a three-layer corrugated cardboard box with pallet; the operating and maintenance manual plus the warranty certificate in a folder are also inside the box. - The instruction “Keep upright” is clearly visible on the cardboard box containing the jack. - Depending on the number of jacks shipped, pallets of different sizes are used.
  • Page 5: Use

    -Install a filter dehumidifier-lubricator unit in the compressed air system. - If you want to lubricate the compressed air circuit use exclusively: AGIP OSO 100; MOBIL DTE 27; ESSO TERESSO 100; SHELL TELLUS 100; BP ENERGOL HP 100 ACCESSORIES The jack is supplied with two extensions or height adapters (120 mm the long extension, 70 mm the short extension), a circular tooth plate (10 mm plate) and an extension holder.
  • Page 6: Warranty

    Improper use The air-hydraulic jack has been designed and made to lift transport vehicles. Any other use of the jack, such as for instance lifting and/or moving persons, is considered to be definitely improper. All use of the jack not in conformity with the safety rules listed in this manual is considered to be improper use.
  • Page 7 THE MOTOR WILL NOT START, OR IT RUNS BADLY. - Check that the air supply line is not choked. - The seals (1101) are worn, replace them! - The seals (1101) fitted on the piston (1102) have difficulty in sliding: both the cylinder and the ram have to be dismantled and lubricated. THE JACK DOES NOT LIFT THE LOAD.
  • Page 8 OTHER CASES. - If the pistons lift up very slowly check that the tap 843 between the tank and motor pump is open. - If the jack is malfunctioning when lifting or lowering, check the spring (1046), the rubber ball seal (429) and the smooth sliding of the piston (130).
  • Page 12: Requesting Spare Parts

    REQUESTING SPARE PARTS WHEN ORDERING SPARE PARTS, THE FOLLOWING MUST BE SPECIFIED: 1) LIFT MODEL 2) SERIAL NUMBER 3) PART NUMBER 4) PART DESCRIPTION 5) QUANTITY DESIRED...
  • Page 13 ESCO website WWW.ESCO.NET CONTACT INFO: www.esco.net - info@esco.net 15270 Flight Path Drive Brooksville, FL 34604 PH. 352.754.1117 Toll Free. 1.800.352.9852 (US, Canada Only) Fax: 352.754.4508 ESCO - The Proper Tools to Keep Your Equipment Moving! Stay Connected with ESCO...
