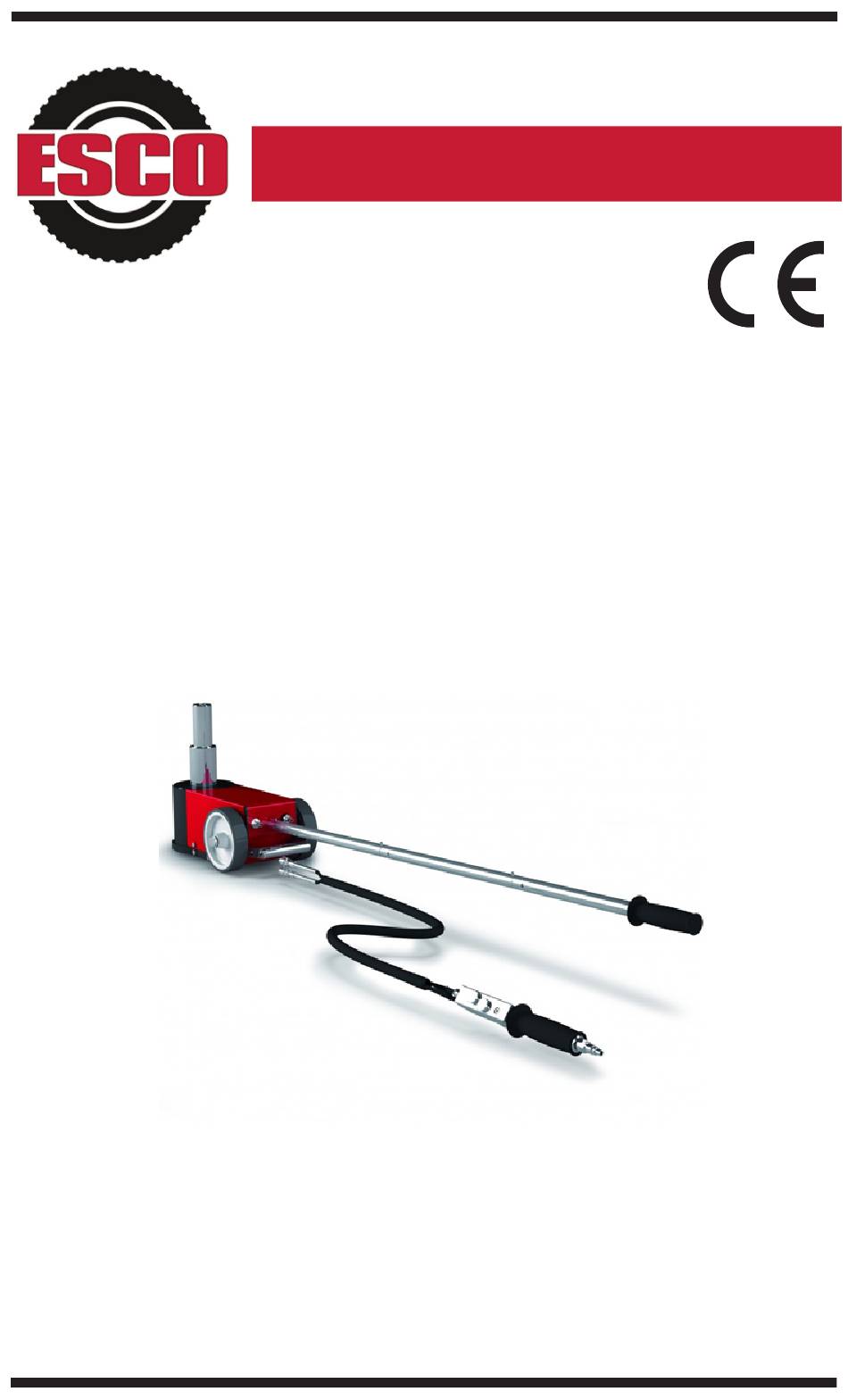

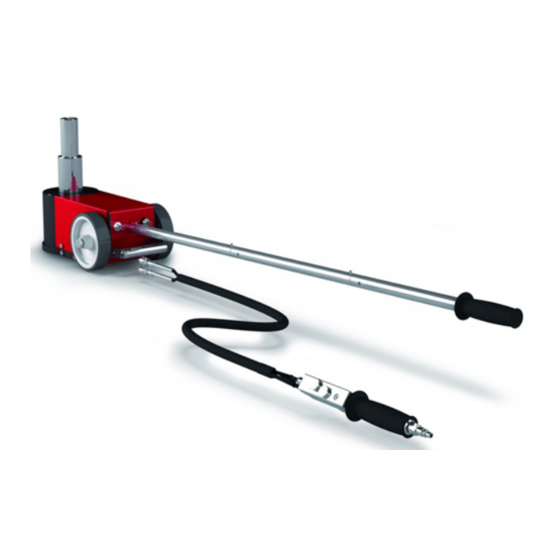

- Page 1 REV.7.20.A Equipment Supply Company Instruction Manual YAK 22/11 Ton Jack ESCO #92001 Copyright © 2020 Equipment Supply Co., All rights reserved...
-
Page 2: Table Of Contents
FOREWORD................................3 SAFETY REGULATIONS ............................3 PACKING ................................4 PUTTING INTO OPERATION ..........................4 USE ..................................5 WARRANTY ................................5 MAINTENANCE JOBS FOR THE END USER ...................... 5 MAINTENANCE RESERVED TO A PROFESSIONALLY QUALIFIED ENGINEER ..........6 TECHNICAL DATA SHEET............................. 8 DRAWINGS ................................ -
Page 3: Foreword
FOREWORD Dear Customer, before using the jack, carefully read these instructions and become acquainted with the safety symbols. - This handbook is an integral part of the machine which must be kept safely and be handy for the worker to consult whenever needed. -
Page 4: Packing
PACKING - The body, handle and other parts of the jack are packed in a three-layer corrugated cardboard box; the operating and maintenance manual plus the warranty certificate in a folder are also inside the box. - The instruction “Keep upright” is clearly visible on the cardboard box containing the jack. - Depending on the number of jacks shipped, pallets of different sizes are used. -
Page 5: Use
ACCESSORIES The jack is supplied with two extensions or height adapters (60mm extensions), and a circular tooth plate (16mm plate). Never use more than two extensions! The manufacturer is not liable for any damage resulting as a consequence of disregard for the above indications and the warranty conditions are invalidated thereof! SCRAPPING AND DISPOSAL - The lubricants must be disposed of in compliance with the anti-pollution laws in force. -
Page 6: Maintenance Reserved To A Professionally Qualified Engineer
3. If the oil fails to come out POS. 8 - A00388 POS. 8 - A00388 once the screw has been loosened, the level is too low. In this case, add oil. The level must be at the height of screw POS. - Page 7 THE JACK DOES NOT LIFT THE LOAD. The pump unit will have to be replaced THE JACK LIFTS, BUT COMES DOWN UNDER THE LOAD. The block unit will have to be replaced...
-
Page 8: Technical Data Sheet
TECHNICAL DATA SHEET 8 > 10 bar 17.5 Kg Working air pressure Weight 116 > 145 psi 39 lb -20°C > +50°C 166 mm Working temperature Max. stroke -4°F > 122°F 6.5 in 20 t Air consumption 400 nl/min 1st stage capacity 22 ton (short) 10 t Compatible oils... -
Page 13: Requesting Spare Parts
REQUESTING SPARE PARTS WHEN ORDERING SPARE PARTS, THE FOLLOWING MUST BE SPECIFIED: 1) LIFT MODEL 2) SERIAL NUMBER 3) PART CODE (CODE) 4) DESIRED QUANTITY SEALS KIT KCYAK214/P Cylinder seals kit KXYAK214/P KMYAK214/P (KCYAK214/P + KMYAK214/P + KBYAK214/P) Motor pump seals kit Complete Seals kit KBYAK214/P Block seals kit... - Page 14 ESCO website WWW.ESCO.NET CONTACT INFO: www.esco.net - info@esco.net 15270 Flight Path Drive Brooksville, FL 34604 PH. 352.754.1117 Toll Free. 1.800.352.9852 (US, Canada Only) Fax: 352.754.4508 ESCO - The Proper Tools to Keep Your Equipment Moving! Stay Connected with ESCO...
