Instruction Manual
Trolley Jack
(2 Ton & 3 Ton Capacity)
ESCO #90520 & #90521
Read this manual and follow all the safety rules and operating
instructions before using this product.
Copyright © 2017 Equipment Supply Co., All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Esco 90520

  • Page 1 Equipment Supply Company Instruction Manual Trolley Jack (2 Ton & 3 Ton Capacity) ESCO #90520 & #90521 Read this manual and follow all the safety rules and operating instructions before using this product. Copyright © 2017 Equipment Supply Co., All rights reserved...
  • Page 2 Trolley Jack [2 & 3 Ton Style] Model #90520 &#90521 WARNING: THIS PRODUCT, AS WELL AS ALL TIRE TOOLS, SHOULD NEVER BE USED BY PERSONS UNLESS THEY HAVE BEEN TRAINED PROPERLY ACCORDING TO OSHA REGULATIONS 29CFR 1910.177 ENTITLED “SERVICING SINGLE-PIECE &...

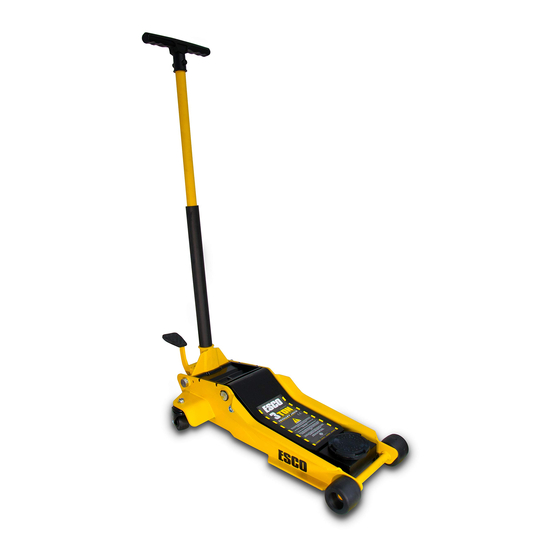

  • Page 3 Trolley Jack [2 & 3 Ton Style] Model #90520 &#90521 Product Description The ESCO Trolley Jack Series (Model #90520 & #90521) are a double pump, professional lifting jacks designed for the lifting of automotive and medium sizes trucks and vans. Features unique “Lift & Twist” controlled lowering of jack and foot pedal for much faster raising up the vehicle.
  • Page 4 Trolley Jack [2 & 3 Ton Style] Model #90520 &#90521 OWNER/OPERATOR RESPONSIBILITY: It is the owner/operator responsibility to properly use and maintain this equipment and the legibility of all warnings and instruction labels. Carefully read and understand the instructions and warnings in this manual before operating this equipment.
  • Page 5 Trolley Jack [2 & 3 Ton Style] Model #90520 &#90521 OPERATION - LIFTING: Prior to operating the jack, remove any accumulated air from the system below: Pull the handle and turn it counterclockwise while held in the below position, pump the jack several times to ensure internal lubrication and bleed the accumulated air from the system.
  • Page 6 Trolley Jack [2 & 3 Ton Style] Model #90520 &#90521 MAINTENANCE: 1. Both the maintenance and repair of the jack may only be performed by qualified professionals. 2. Only original spare parts should be used. 3. When not in use, store the jack with saddle fully lowered.Keep the jack in a clean, dry place and keep out of reach of children .
  • Page 7 Trolley Jack [2 & 3 Ton Style] Model #90520 &#90521 PARTS BREAKDOWN: PART NO. DESCRIPTION Lifting Arm Assy. PART NO. DESCRIPTION Rubber Cap lifting arm assy Saddle Rubber cap saddle Wheel Sets Wheel sets Cylinder Assy. cylinder assy Wheel Sets...
  • Page 8 ESCO website WWW.ESCO.NET CONTACT INFO: www.esco.net - info@esco.net 15270 Flight Path Drive Brooksville, FL 34604 PH. 352.754.1117 Toll Free. 1.800.352.9852 (US, Canada Only) Fax: 352.754.4508 ESCO - The Proper Tools to Keep Your Equipment Moving! Stay Connected with ESCO...
