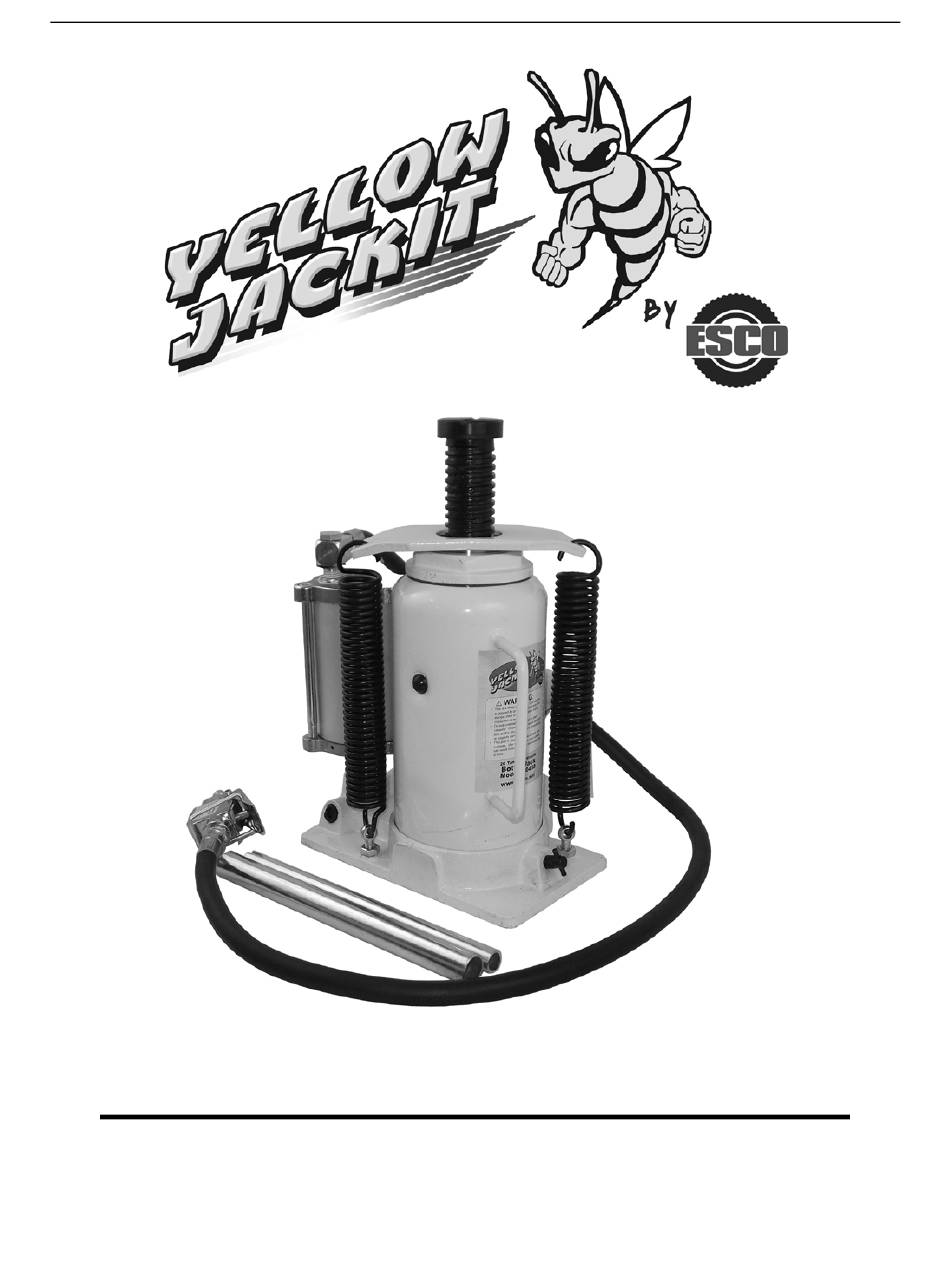

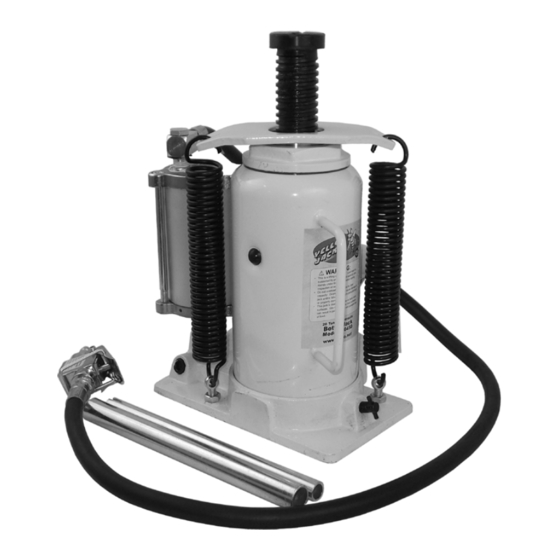

- Page 1 ESCO Equipment Supply Company 20 TON AIR/MANUAL BOTTLE JACK ESCO Part #10450...
- Page 2 ESCO Equipment Supply Company Instruction Manual Please read this instruction manual carefully before use. IMPORTANT PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFETY INSTRUCTIONS N WARNINGS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE TO PROPERTY AND/OR PERSONAL INJURY.
- Page 3 ESCO Equipment Supply Company 1.17 DO NOT use brake fluid or any other improper fluid and avoid mixing different types of oil when adding hydraulic oil. Only a good quality hydraulic jack oil can be used. 1.18 DO NOT expose the jack to rain or any other kind of bad weather.
- Page 4 ESCO Equipment Supply Company CAREFULLY lower the load by turning the release valve counterclockwise (use the slotted end of the handle) in extremely small increments, then lower the extension screw by turning it clockwise as needed and remove the jack.
- Page 5 ESCO Equipment Supply Company 5.TROUBLESHOOTING Symptom Possible Causes Corrective Action Jack will not lift load Release valve not tightly closed Close release valve firmly Overload condition Remedy overload condition Air supply inadequate Ensure adequate air supply Air trapped in system...
- Page 6 ESCO Equipment Supply Company Parts Breakdown Sheet DESCRIPTION DESCRIPTION DESCRIPTION BASE SPRING THROTTLE BALL EYE BOLT SPRING SEAL RELEASE VALVE LOCK WASHER QUICK COUPLER-MALE BALL CUP WASHER VALVE BODY SPRING PUMP CYLINDER SCREW SPRING O-RING AIR HOSE SCREW NYLON RING...
- Page 7 ESCO Equipment Supply Company...
