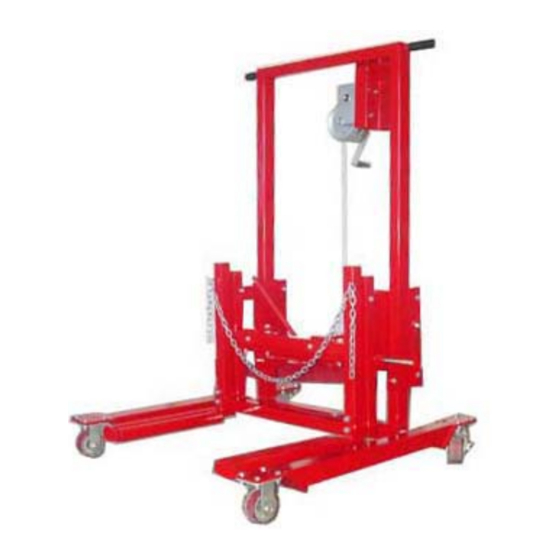

- Page 1 High-Rise Tire Dolly Assembly & Operation Instructions Model 70131 Capacity 1000 lb 15270 Flight Path Drive Brooksville Fl, 34604 Phone 800-352-9852 Fax 352-754-4508 Website www.esco.net Email sales@esco.net...
- Page 2 1. High-rise Tire Dolly is limited for use to the removal, installation and transportation of wheel and tires only. 2. Do not overload beyond rated capacity. 15270 Flight Path Drive Brooksville Fl, 34604 Phone 800-352-9852 Fax 352-754-4508 Website www.esco.net Email sales@esco.net...
- Page 3 1. Use a grease gun and grease the winch to ensure rotating adjustment can be done smoothly. 2. Apply grease regularly to the moving joints. 15270 Flight Path Drive Brooksville Fl, 34604 Phone 800-352-9852 Fax 352-754-4508 Website www.esco.net Email sales@esco.net...
- Page 4 Parts List 15270 Flight Path Drive Brooksville Fl, 34604 Phone 800-352-9852 Fax 352-754-4508 Website www.esco.net Email sales@esco.net...
- Page 5 PARTS LIST 70131 REF. NO. PART NO. DESCRIPTION 245101 ROLLER ASS’Y 245102 BOLT M12x75 245103 PULLEY 245104 BOLT M12x180 245105 LIFT ARM ASS’Y 245106 PULLEY 245107 BOLT M12x125 245108 PULLEY 245109 POST ASS’Y 245110 FRONT WHEEL ASS’Y 245111 LEG ASS’Y...
- Page 6 70131 Assembly Guide Before assembly, be sure to have a double check on the parts according to packing list. Lubricate each swivel part when you start to assemble this High-Rise Tire Dolly. Put up Column Ass'y (A) ( Part # 17) to fit into Foot Tubing Assembly ( A ) ( Part # 11).
