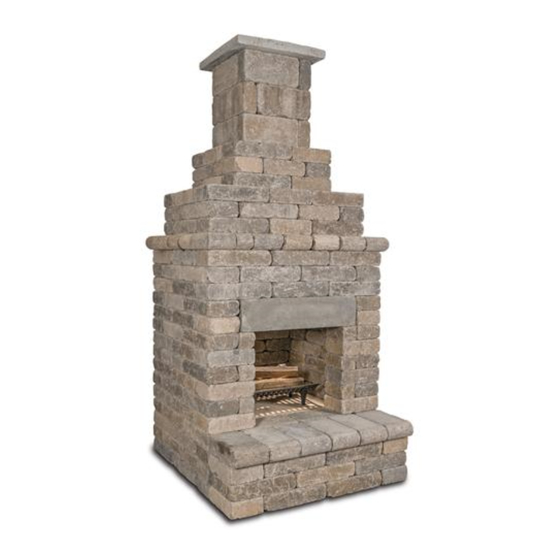

"Serenity 150" Fireplace (FPL-150) Assembly Instructions

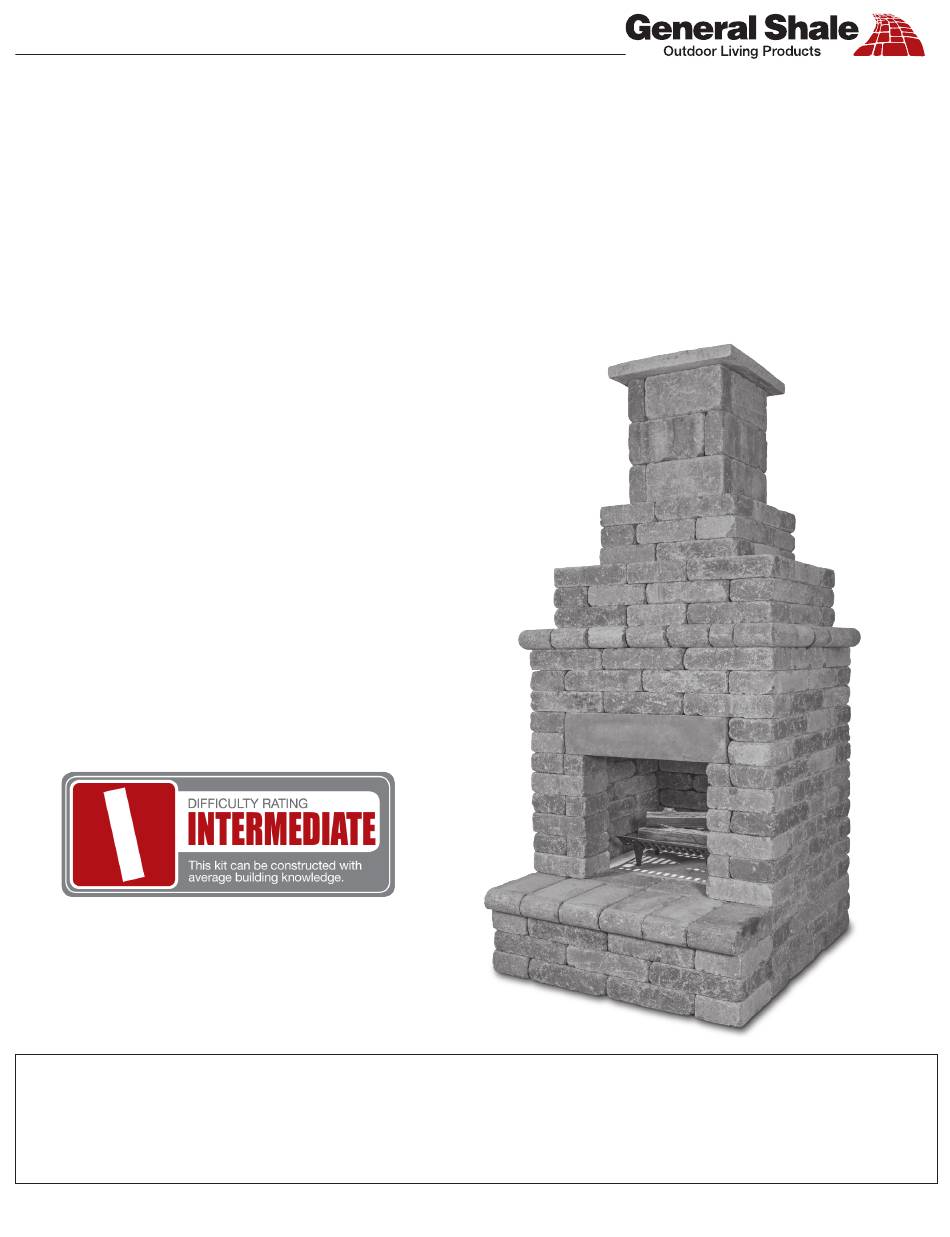

How-To Assemble Your
SERENITY 150
FPL-150
PART NO.
INTERMEDIATE
DIFFICULTY
4'W x 4'4"D x 8'11"H
APPROX. DIM.
APPROX. WEIGHT
All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards.
Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product
depends on correctness of installation and extent of usage. All metal components are subject to normal rust and corrosion.
ANY IMPLIED WARRANTIES ARE HEREBY DISCLAIMED AND ARE EXPRESSLY EXCLUDED.
8,100 lbs.
GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
Outdoor Fireplace

Advertisement

loading
Need help?

Need help?

Do you have a question about the Serenity 150 and is the answer not in the manual?

Questions and answers

Related Manuals for General Shale Serenity 150

Summary of Contents for General Shale Serenity 150

  • Page 1 GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards. Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product depends on correctness of installation and extent of usage.
  • Page 2 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Materials included with your outdoor kit. (164) Weathered Block “A” (4" x 8" x 16") (28) Weathered Block “B”(4" x 8" x 12") Weathered Single Bullnose Block “B1” (4"x 8"x 14" ) Weathered Block “C” (4" x 8" x 8") (14) Weathered Single Bullnose Block “C1”(4"...

  • Page 3: Firebox Dimensions

    “Serenity 150” Fireplace (FPL-150) Assembly Instructions Course Numbers (Referred to in following instructions) Firebox Dimensions NOTE: These dimensions are provided for customer information. NOTE: Inside height is from top of fire brick to top of course 15. Firebox Opening (Front): 24"W x 22"H (± 1/4") Inside* (Side to Side): 31 1/2"W x 40"H (±...
  • Page 4 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Create a level base using Crusher Run Stone to accommodate the overall footprint of the fireplace. Prepare an area 4'4" wide x 4'8" deep. Remove sod and vegetation. Excavate/remove soft soil as required to provide level stone surface at a minimum of 4"...
  • Page 5 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (courses 1 through 3). Assemble the fireplace on a level setting base. Dry stack courses 1 through 4 and check fit for fire brick before applying thin set. Adjust gap / position of "A" and "I" blocks to accommodate fire Use supplied thin set between all courses and all blocks.
  • Page 6 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (course 4). Use supplied thin set between all courses and all blocks. Course 4 (9) Weathered Block “A” (4" x 8" x 16") (6) Non-Weathered Block “J” (1 5/8" x 8" x 16") (6) Weathered Single Bullnose “B1”...
  • Page 7 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (courses 5 through 10). Use supplied thin set between all courses and all blocks. Apply thin set to head joints (vertical joints) on courses 5 through 10 (fire box area).
  • Page 8 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (courses 11 and 12). Use supplied thin set between all courses and all blocks. Apply thin set to head joints (vertical joints) on course 11 (fire box area). The 6" x 7 1/4" x 32" Cast Rock Lintel in courses 11 & 12 is shared between the two courses.
  • Page 9 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (courses 13 through 15). Use supplied thin set between all courses and all blocks. Courses 13 and 15 (9) Weathered Block “A” (4" x 8" x 16") Course 14 (9) Weathered Block “A” (4" x 8" x 16")
  • Page 10 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (course 16). Use supplied thin set between all courses and all blocks. All bullnose block in course 16 will overhang course 15 by 2 1/2" on all sides. Dry stack bullnose units and check fit before applying thin set.
  • Page 11 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (courses 17 through 19). Center all courses on the previous course to build chimney properly. Use supplied thin set between all courses and all blocks. Dry stack course 17 to ensure fit and position before applying thin set.
  • Page 12 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (courses 20 through 22). Center all courses on the previous course to build chimney properly. Use supplied thin set between all courses and all blocks. Dry stack course 20 to ensure fit and position before applying thin set.
  • Page 13 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (courses 23 through 25). Center all courses on the previous course to build chimney properly. Use supplied thin set between all courses and all blocks. Dry stack courses 23 to ensure fit and position before applying thin set.
  • Page 14 “Serenity 150” Fireplace (FPL-150) Assembly Instructions Step Build the fireplace (Cast Rock Chimney Cap). Set cap into place using thin set (centered on course 25). Cast Rock Chimney Cap Step Tempering Recommendations: Wait 24 hours before building a fire in your fireplace kit.
