General Shale STACKER 150 Woodbox Assembly Instructions Manual

Difficulty novice, approx. dim. 3'w x 2'd x 4'h, approx. weight 2,485 lbs.
Hide thumbs

Advertisement

Quick Links

Download this manual

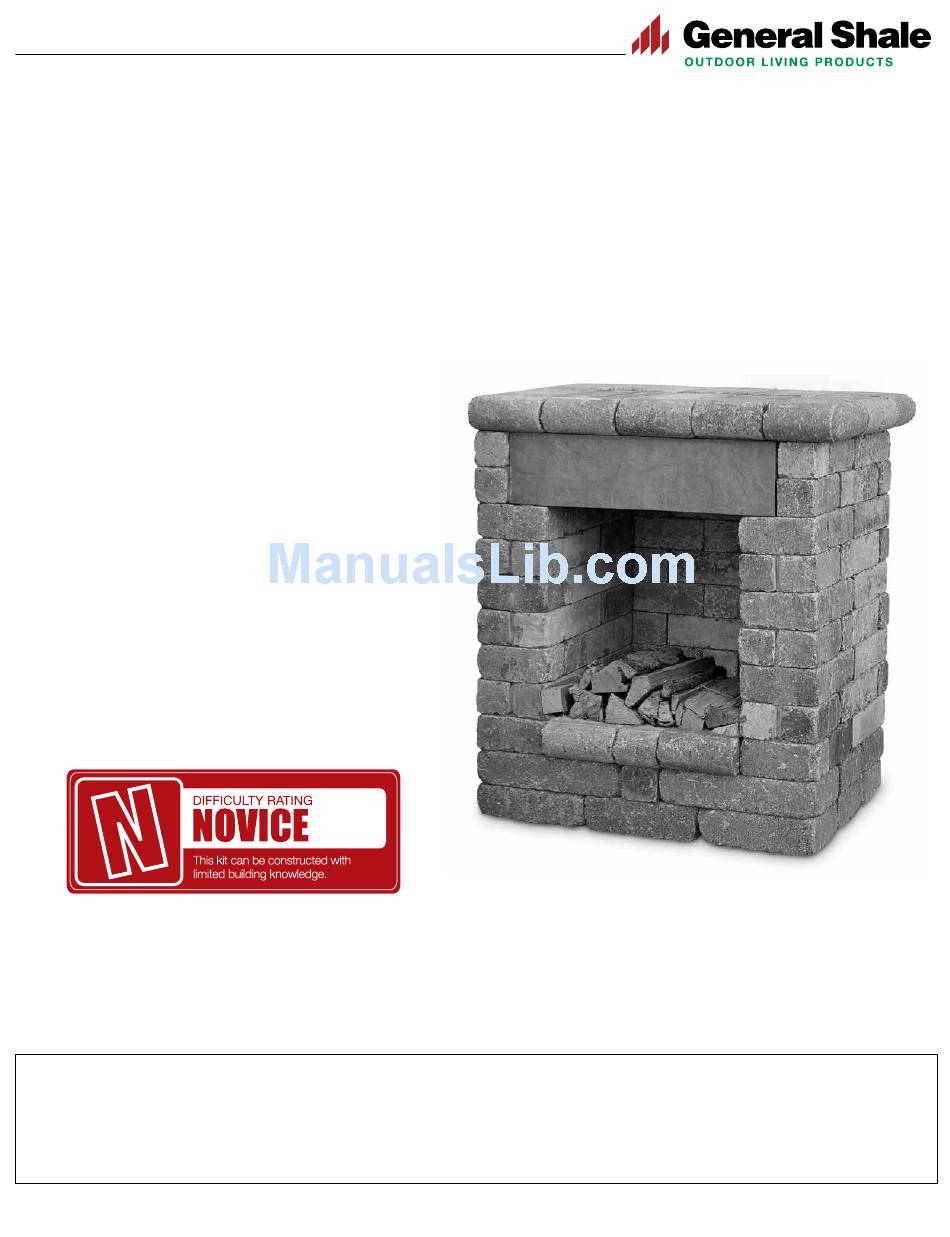

"Stacker 150" Woodbox (WBX-150) Assembly Instructions
How-To Assemble Your
STACKER 150
Woodbox
WBX-150
PART NO.
NOVICE
DIFFICULTY
3'W x 2'D x 4'H
APPROX. DIM.
2,485 lbs.
APPROX. WEIGHT
GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY
All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards.
Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product
depends on correctness of installation and extent of usage. All metal components are subject to normal rust and corrosion.
ANY IMPLIED WARRANTIES ARE HEREBY DISCLAIMED AND ARE EXPRESSLY EXCLUDED.
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the STACKER 150 Woodbox and is the answer not in the manual?

Questions and answers

Related Manuals for General Shale STACKER 150 Woodbox

Summary of Contents for General Shale STACKER 150 Woodbox

  • Page 1 GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards. Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product depends on correctness of installation and extent of usage.
  • Page 2 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Materials included with your outdoor kit. A-(7) 4" x 8" x 16" Block B–(12) 4" x 8" x 12" Block B1–(5) 4" x 8" x 14" Bullnose B2–(1) 4" x 4 1/2" x 14" Bullnose B3–(1) 4"...
  • Page 3 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Step Create a level base using Crusher Run Stone to accommodate the overall footprint of the woodbox kit. Prepare an area 3'6" wide x 2'6" deep. Remove sod and vegetation. Excavate/remove soft soil as required to provide level stone surface at a minimum of 4"...
  • Page 4 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Step Build the woodbox (courses 1 and 2). Assemble the woodbox on a level setting base. After laying the first course, check to make sure it is level before proceeding. Apply thin set layer with small trowel to bond courses. Mix thin set according to manufacturers instructions.
  • Page 5 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Step Build the woodbox (courses 3 and 4). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
  • Page 6 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Step Build the woodbox (courses 5 and 6). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
  • Page 7 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Step Build the woodbox (courses 7 and 8). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
  • Page 8 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Step Build the woodbox (courses 9 and 10). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
  • Page 9 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Step Build the woodbox (course 11). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
  • Page 10 “Stacker 150” Woodbox (WBX-150) Assembly Instructions Step Build the woodbox cap (course 12). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
