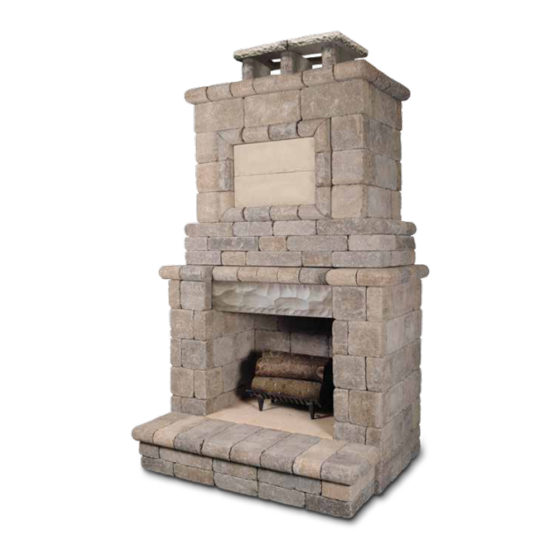

"Serenity 200" Fireplace (FPL-200) Assembly Instructions
How-To Assemble Your
SERENITY 200
Outdoor Fireplace
FPL-200
PART NO.
ADVANCED
DIFFICULTY
5'W x 4'D x 8'9"H
APPROX. DIM.
7,540 lbs.
APPROX. WEIGHT
GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY
All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards.
Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product
depends on correctness of installation and extent of usage. All metal components are subject to normal rust and corrosion.
ANY IMPLIED WARRANTIES ARE HEREBY DISCLAIMED AND ARE EXPRESSLY EXCLUDED.
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SERENITY 200 and is the answer not in the manual?

Questions and answers

Related Manuals for General Shale SERENITY 200

Summary of Contents for General Shale SERENITY 200

  • Page 1 GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards. Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product depends on correctness of installation and extent of usage.

  • Page 2: Bullnose Block "C7" (4" X 5 5/8" X

    “Serenity 200” Fireplace (FPL-200) Assembly Instructions Materials included with your outdoor kit. (75) Block “A” (4" x 8" x 16"; 3 extra) Block “E” (1 5/8" x 8" x 16") Splitface Front Block “A1” (4" x 8" x 16") Block “E1” (1 5/8" x 8" x 4") Block “AA”...

  • Page 3: Course

    “Serenity 200” Fireplace (FPL-200) Assembly Instructions Course Numbers (Referred to in following instructions) Tile Insert NOTE: Firebox dimensions on page 13. P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com...
  • Page 4 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Create a level base using Crusher Run Stone to accommodate the overall footprint of the fireplace. Prepare an area 5'6" wide x 4'6" deep. Remove sod and vegetation. Excavate/remove soft soil as required to provide level stone surface at a minimum of 4"...
  • Page 5 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Build the fireplace (courses 1 & 2). Assemble the fireplace on a level setting base. Mix supplied thin set according to package directions. Apply a thin layer uniformly using a small trowel between all pieces and courses.
  • Page 6 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Build the fireplace (course 3). Use supplied thin set between all courses and all blocks. All block shown in light gray will use the 8" dimension as the height, while the block in dark gray will use the 4" dimension as the height unless noted otherwise.
  • Page 7 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Build the fireplace (courses 4 through 6). Use supplied thin set between all courses and all blocks. Course 4 (4) Block “A” (4" x 8" x 16") (10) Block “B”(4" x 8" x 12") (5) Block “D”(4"...
  • Page 8 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Build the fireplace (courses 7 & 8). Use supplied thin set between all courses and all blocks. Center all courses on previous course to build chimney properly. After completing course 8, it is suggested to allow the thin set to cure overnight before proceeding to course 9.
  • Page 9 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Build the fireplace (courses 9 through 11). Use supplied thin set between all courses and all blocks. Course 9 (2) Block “A” (4" x 8" x 16") (6) Block “B”(4" x 8" x 12") (2) Block “B1”(4"...
  • Page 10 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Build the fireplace (courses 12 through 14). Use supplied thin set between all courses and all blocks. Course 12 (6) Block “A” (4" x 8" x 16") (6) Block “B”(4" x 8" x 12") (4) Block “D”(4"...

  • Page 11: 8) Bullnose Mitered Corner Pieces Tile

    “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Build the fireplace (tile insert, bullnose frame detail and courses 15 & 16). Fill the hole created in courses 12 - 14 with tile insert and bullnose frame. Use thin set to adhere to fireplace and sanded caulk to fill joints.
  • Page 12 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Build the fireplace (courses 17 & 18). Use supplied thin set between all courses and all blocks. Use supplied thin set between all courses and all blocks. Course 17 Course 18 (3) Double Bullnose Block “C12” (4" x 8" x 16")
  • Page 13 “Serenity 200” Fireplace (FPL-200) Assembly Instructions Step Tempering Recommendations: Wait 24 hours before building a fire in your fireplace kit. Build a few modest fires in the fireplace initially before building a fire at normal temperatures. During first few fires, some minor smoking may occur as the block and mortar dry out from the heat;...
