160 Vehicle care
F17 F26 F30 F34
F16 F25 F29 F33
F15 F24 F28 F32
F14 F23 F27 F31
F13
R5
F22
F12
F21
F11 F20 R4
F10 F19
F9
F18
R3
F8
F7
R1 R2
F6
F5
F4 F3 F2 F1
The vehicle may not be equipped
with all of the fuses, relays and
features shown.
The vehicle may not be equipped
F40
with all of the fuses, relays and
F39
features shown.
F38
F37

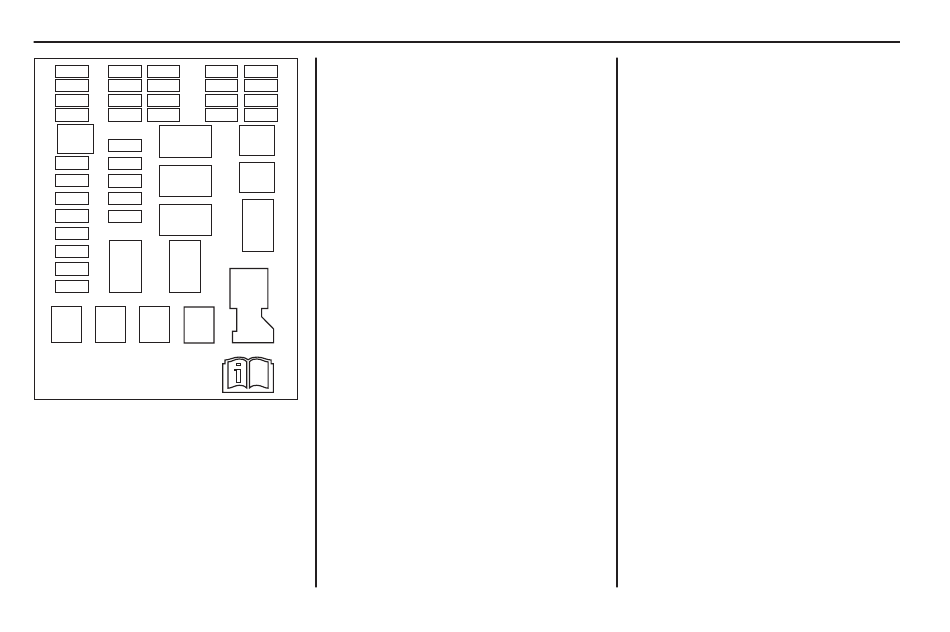

Fuses
F1 SPARE
F36
F2 SPARE
F35
F3 PWR WNDW
EXP DRV ....................... (20A)
F4 SPARE
R6
F5 BCM1 ............................ (20A)
F6 BCM2 ............................ (20A)
BATT
F7 BCM3 ............................ (30A)
CONN
F8 BCM4 ............................ (30A)
F9 BCM5 ............................ (25A)
F10 BCM6 ............................ (20A)
F11 BCM7 ............................ (20A)
F12 BCM8 ............................ (30A)
F13 SPARE
F14 L/GATE .......................... (10A)
F15 AIRBAG ......................... (10A)
F16 DLC ............................... (15A)
F17 DLIS ................................ (2A)
F18 HVAC ............................. (10A)
F19 CHEVYSTAR ................. (10A)
F20 SPARE
F21 TRAILER ....................... (20A)
F22 AUDIO ........................... (15A)
F23 SPARE
F24 DIC ................................ (10A)
F25 SPARE
F26 IPC ................................ (10A)
F27 AIRBAG RUN/CRANK .. (10A)
F28 IPC AOS ........................ (10A)
F29 SPARE
F30 HEADLAMP ALC ........... (10A)
F31 SPARE
F32 HVAC ............................. (10A)
F33 CLOCKSPRING .............. (2A)
F34 TRAILER RUN/
CRANK .......................... (10A)
F35 PWR WNDW FRONT .... (25A)
F36 PWR WNDW REAR ...... (25A)
F37 SPARE .......................... (20A)
F38 CIGAR APO ................... (20A)
F39 SUNROOF .................... (10A)
F40 SPARE .......................... (10A)
