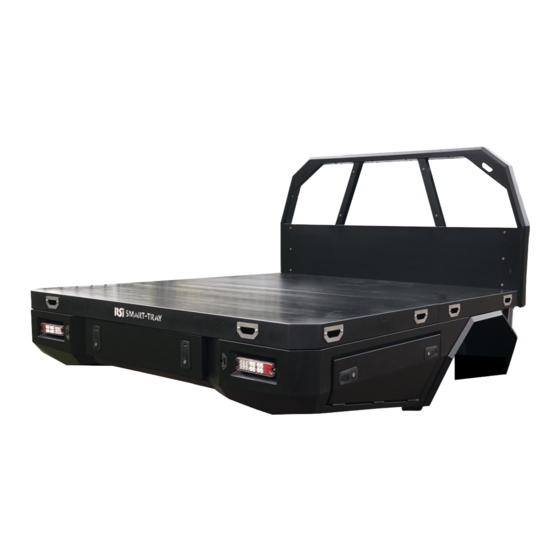

- Page 1 FITMENT INSTRUCTIONS RSI SMART TRAY - MULTI PLEASE READ FITMENT INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. LIKE SHARE FOLLOW...
- Page 2 FITMENT KIT CONTENTS FITMENT KIT CONTENT (HARDWARE) DESCRIPTION EXAMPLE M12 X 40 SET SCREWS M12 X 30 FENDER WASHERS M12 NYLOC NUTS MOUNTING RUBBER PADS / WIRE HARNESS 6 / 2 REQUIRED TOOLS TOOLS CATEGORY EXAMPLE NO. 19 Socket Socket Wrench & Accessories Socket Wrench Flat Spanners NO.
- Page 3 FITMENT OF THE RSI SMART TRAY TO VEHICLE PLEASE ADHERE TO BELOW TO PREVENT DAMAGE TO VEHICLE AND RSI SMART TRAY DURING FITMENT 1. ONLY USE THE RECOMMENDED TOOLS AS INDICATED IN THE FITMENT INSTRUCTION ABOVE 2. ONLY USE THE HARDW ARE PROVIDED IN THE FITMENT KIT OUTLINED ON THE PAGE BEFORE 3.
- Page 4 FITMENT OF THE RSI SMART TRAY TO VEHICLE STEP 1. PLACE THE RUBBER MOUNTING PADS, ON TOP OF THE MOUNTING POSITIONS. 2. PLACE THE 20MM SPACER PLATES ON TOP OF THE RUBBER MOUNTING PADS ON THE TWO REAR THREE MOUNTING PADS. 3.
- Page 5 FITMENT OF THE RSI SMART TRAY TO VEHICLE STEP 1. LIFT THE RSI SMART TRAY AND PLACE IN POSITION TO PREPARE FOR THE NEXT STEP. 2. A LIFTING HOIST IS RECOMMENDED WHEN LIFTING THE RSI SMART TRAY. FOUR 3. USE CAUTION WHEN LIFTING AND WORKING WITH THE RSI SMART TRAY. HOOK THE STRAPS IN THE SAME POSITION ON THE OPPOSITE HAND SIDE.
- Page 6 FITMENT OF THE RSI SMART TRAY TO VEHICLE STEP 1. PLEASE ENSURE THAT THE FUEL FILLER CAP IS POSITIONED THROUGH THE CUT OUT ON THE RAILS OF THE RSI SMART TRAY. 2. PLEASE MAKE SURE THERE ARE NO KINKS OR BENDS IN THE FUEL FILLER PIPE, AS THIS WILL BE A PROBLEM WHEN FILLING UP WITH FUEL.
- Page 7 FITMENT OF THE RSI SMART TRAY TO VEHICLE STEP 1. ONCE THE RSI SMART TRAY HAS BEEN SECURELY BOLTED DOWN, PLUG THE TAIL LIGHTS INTO THE MAIN VEHICLE POWER SUPPLY USING THE WIRING HARNESS. SEVEN 2. TEST ALL LIGHTS AND IMMEDIATELY REPORT A PROBLEM. PLUG CORRESPONDING PLUG INTO THE CIRCUIT BOX.
